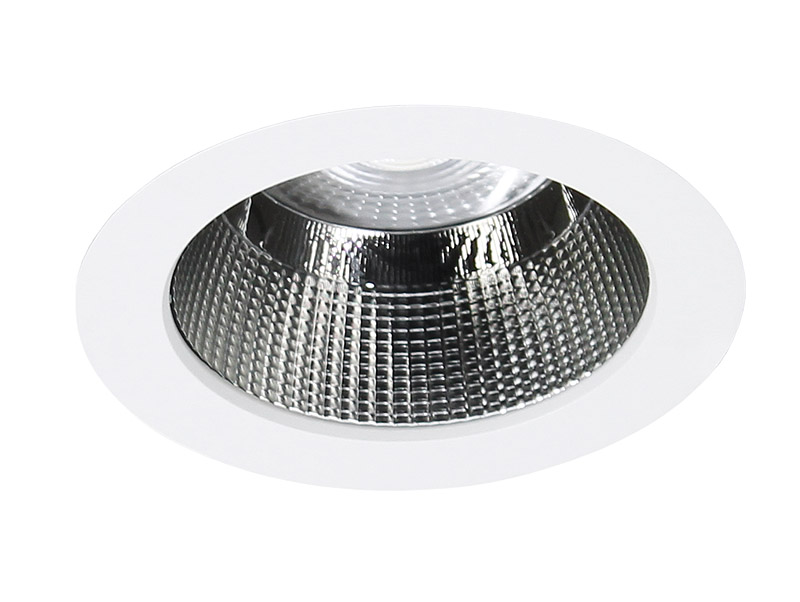

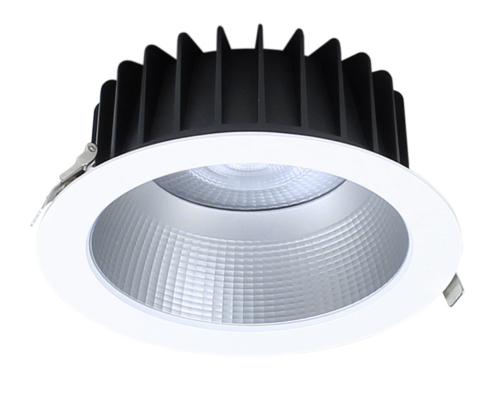

Bauform DO20
Variables Einbaudownlight in drei unterschiedlichen Durchmessern.
Das Downlight wird standardmäßig in der Schutzart IP54, mit einem facettierten Reflektor und einem weißen Ring angeboten. Auf Kundenwunsch können Ringe in den Farben Weiß, Silbergrau und Schwarz angeboten werden.
Für spezielle optische oder lichttechnische Anforderungen können Reflektoren in den Farben Weiß, Schwarz oder facettiert matt angeboten werden. Über ein Linsensystem werden Ausstrahlwinkel von 24°, 36° (Standard) oder 60° erreicht.
In unterschiedlichen Wattagen und Ausstrahlwinkeln erreicht das Downlight UGR<19 Werte
Alle Varianten werden mit einem Multiwatt-Treiber ausgeliefert. Bei den höchsten Bestromungswerten werden Lichtstärken mit bis zu knapp 5000 lm erreicht.
Mit Hilfe von Erweiterungsringen können alle Deckenausschnitte zwischen 90 mm und 275 mm stufenlos abgedeckt werden.
Technische Daten
Leuchtkörper
Montageart: Einbaudownlight
Material: Stahlblech
Farbe: Weiß (RAL 9003) | Schwarz (RAL 9005) | Silber (RAL 9006)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI (extern)
Spannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -20°C bis +45°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 90
Lebensdauer: 50.000 h (L90 B10)
Lichtverteilung: direkt strahlend
Ausstrahlwinkel: 36°, 60°
Blendungsbegrenzung: UGR<19 (gültig für DO20M, DO20L, 36° bis 20W/2700lm)
Optisches System
| Optisches System | Lichtstromverhältnisse je Reflektorfarbe | |
| AF | Alureflektor facettiert | 100% |
| AFB | Alureflektor facettiert breitstrahlend | 100% |
| AFT | Alureflektor facettiert tiefstrahlend | 100% |
| W | weißer Reflektor | -10% |
| WB | weißer Reflektor breitstrahlend | -10% |
| WT | weißer Reflektor tiefstrahlend | -10% |
| AM | Alureflektor matt | -15% |
| AMB | Alureflektor matt breitstrahlend | -15% |
| AMZ | Alureflektor matt tiefstrahlend | -15% |
| B | schwarzer Reflektor | -30% |
| BB | schwarzer Reflektor breitstrahlend | -30% |
| BT | schwarzer Reflektor tiefstrahlend | -30% |
Prüfungen
Schutzart: IP40 (In der Decke) | IP54 (Unterhalb der Decke)
Schutzklasse: II
Schlagschutz: IK02
Energieeffizienzklasse: D (4000K) | E (3000K | 5700K)
Länderkennzeichnung: CE
Sicherheitskennzeichen: F
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Optional
Notlicht (auf Anfrage)
Ausstrahlwinkel 24° tiefstrahlend
Erweiterungsringe (unter Zubehör)
Bemerkungen
Die Treiber Settings können Sie unter Downloads finden.
Zubehör
Zubehör Erweiterungsring:
| DO20S.EWR.W | Weiß | Erweiterungsring für das Downlight DO20S | für einen Deckenausschnitt von 100 – 160 mm | 16,20 € |
| DO20S.EWR.B | Schwarz | Erweiterungsring für das Downlight DO20S | für einen Deckenausschnitt von 100 – 160 mm | 16,20 € |
| DO20S.EWR.S | Silber | Erweiterungsring für das Downlight DO20S | für einen Deckenausschnitt von 100 – 160 mm | 16,20 € |
| DO20M.EWR.W | Weiß | Erweiterungsring für das Downlight DO20M | für einen Deckenausschnitt von 162 – 220 mm | 26,70 € |
| DO20M.EWR.B | Schwarz | Erweiterungsring für das Downlight DO20M | für einen Deckenausschnitt von 162 – 220 mm | 26,70 € |
| DO20M.EWR.S | Silber | Erweiterungsring für das Downlight DO20M | für einen Deckenausschnitt von 162 – 220 mm | 26,70 € |
| DO20L.EWR.W | Weiß | Erweiterungsring für das Downlight DO20L | für einen Deckenausschnitt von 205 – 275 mm | 32,00 € |
| DO20L.EWR.B | Schwarz | Erweiterungsring für das Downlight DO20L | für einen Deckenausschnitt von 205 – 275 mm | 32,00 € |
| DO20L.EWR.S | Silber | Erweiterungsring für das Downlight DO20L | für einen Deckenausschnitt von 205 – 275 mm | 32,00 € |
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DO20La.MW93.W.S1W5 | 1525-3152 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.WT.D1W5 | 1376-2842 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.WB.D1S5 | 1540-3183 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.WB.D1W5 | 2576-5150 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFB.D1S5 | 1552-3208 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AMB.S1B5 | 1525-3151 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.B.D1B5 | 691-1656 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AM.S1B5 | 734-1760 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMT.S1W5 | 710-1705 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.S1B5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.BT.D1W5 | 2394-4787 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.S1B5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.BB.S1W5 | 2446-4890 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.WAC.D1W5 | 1418-2931 lm | 12-25 W | 4000 K | IP54 | 228 x 119 mm | 200-210 mm | 1.4 kg | 250.80 Euro | LDT anfordern | PDF Download | - |
| DO20Sa.MW94.W.D1B5 | 748-1796 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.B.S1W5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.W.D1S5 | 1421-2937 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.W.S1B5 | 1525-3152 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.B.S1S5 | 1458-3014 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.B.S1B5 | 2414-4828 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.B.S1S5 | 2430-4861 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.BT.D1B5 | 688-1652 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.BT.D1B5 | 709-1700 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFT.S1W5 | 1362-2814 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.BT.D1B5 | 1329-2748 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AFT.S1B5 | 1488-3074 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AFT.D1W5 | 1497-3095 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFT.S1W5 | 2479-4958 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AFT.S1S5 | 2496-4991 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AFB.D1B5 | 767-1840 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.S1W5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AMB.D1W5 | 1510-3119 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.WB.S1B5 | 1545-31194 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BB.S1S5 | 1477-3053 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFB.D1S5 | 2550-5099 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AMB.D1B5 | 2541-5082 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.WT.S1B5 | 1376-2842 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.B.S1W5 | 1448-2993 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.BT.S1S5 | 1306-2699 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.BB.D1W5 | 1463-3022 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFB.S1B5 | 2550-5099 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AM.S1W5 | 1393-2879 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AMB.S1W5 | 2541-5082 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.B.D1S5 | 691-1656 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AM.D1W5 | 734-1760 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMT.S1B5 | 710-1705 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.D1B5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.BT.D1B5 | 2394-4787 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.BB.S1W5 | 1463-3022 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AMB.D1W5 | 2525-5048 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.W.D1W5 | 1535-3173 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.W.D1S5 | 748-1796 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.B.S1B5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.B.S1W5 | 1349-2789 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.W.D1B5 | 1525-3152 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.B.D1W5 | 1458-3014 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.B.S1S5 | 2414-4828 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.B.D1W5 | 2430-4861 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.BT.D1S5 | 688-1652 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.BT.D1S5 | 709-1700 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFT.S1S5 | 1362-2814 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.BT.D1S5 | 1329-2748 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AFT.S1S5 | 1488-3074 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AMT.S1W5 | 1482-3064 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFT.S1B5 | 2479-4958 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AFT.D1B5 | 2496-4991 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMB.S1W5 | 759-1822 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.S1S5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AMB.D1B5 | 1510-3119 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.WB.S1S5 | 1545-31194 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BB.D1B5 | 1477-3053 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AMB.S1W5 | 2525-5048 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AMB.D1S5 | 2541-5082 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.WT.S1W5 | 724-1739 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AM.S1B5 | 1495-3090 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AMT.S1B5 | 1348-2786 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFB.D1B5 | 1525-3151 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFB.S1S5 | 2550-5099 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.W.S1W5 | 727-1744 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.BB.D1B5 | 2446-4890 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AF.S1W5 | 720-1727 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AM.D1B5 | 734-1760 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMT.S1S5 | 710-1705 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AMT.S1W5 | 1372-2836 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AFT.D1W5 | 2496-4991 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.WB.S1W5 | 1568-3240 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.BB.S1B5 | 2462-4923 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.W.S1S5 | 727-1744 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.B.S1W5 | 711-1705 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT Download | PDF Download | PDF Download |
| DO20Ma.MW93.B.D1W5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.B.S1B5 | 1349-2789 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.W.D1S5 | 1525-3152 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.B.D1B5 | 1458-3014 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.B.D1B5 | 2414-4828 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.B.D1B5 | 2430-4861 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AFT.S1B5 | 717-1722 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AFT.S1S5 | 739-1773 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFT.D1W5 | 1362-2814 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.S1W5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AFT.D1W5 | 1488-3074 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AMT.S1S5 | 1482-3064 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFT.S1S5 | 2479-4958 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AFT.D1S5 | 2496-4991 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMB.D1W5 | 759-1822 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.D1W5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AMB.D1S5 | 1510-3119 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.WB.D1B5 | 1545-31194 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BB.D1S5 | 1477-3053 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AMB.S1B5 | 2525-5048 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AFT.S1W5 | 1488-3074 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BT.S1S5 | 1436-2968 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.W.D1B5 | 1535-3173 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.D1W5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFB.D1S5 | 1525-3151 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFB.D1B5 | 2550-5099 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AF.S1W5 | 1382-2857 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.B.S1S5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AF.S1B5 | 720-1727 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AM.D1S5 | 734-1760 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.WT.D1W5 | 746-1791 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AMT.S1B5 | 1372-2836 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.WB.D1W5 | 775-1858 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.WB.S1B5 | 1568-3240 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.BB.D1W5 | 2462-4923 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.W.D1W5 | 727-1744 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.B.S1B5 | 711-1705 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.B.D1B5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.B.S1S5 | 1349-2789 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.B.S1S5 | 1448-2993 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AF.S1S5 | 1520-3142 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.B.D1S5 | 2414-4828 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AF.S1W5 | 2534-5068 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AFT.D1W5 | 717-1722 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AFT.D1S5 | 739-1773 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFT.D1B5 | 1362-2814 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.S1S5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AFT.D1B5 | 1488-3074 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AMT.D1W5 | 1482-3064 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFT.D1B5 | 2479-4958 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AMT.S1W5 | 2471-4941 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMB.D1B5 | 759-1822 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.D1B5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.WB.S1S5 | 1568-3240 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.BB.S1W5 | 1467-3033 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AFB.S1W5 | 1540-3183 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AMB.S1S5 | 2525-5048 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BB.S1B5 | 1477-3053 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.WB.S1S5 | 1555-3215 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.B.D1S5 | 1458-3014 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AMT.S1W5 | 1473-3043 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AMB.S1W5 | 1510-3119 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT Download | PDF Download | PDF Download |
| DO20La.MH94.WB.S1W5 | 2593-5184 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.W.D1W5 | 1525-3152 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.W.S1S5 | 2559-5119 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AF.D1S5 | 720-1727 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.W.S1W5 | 1421-2937 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.BT.D1W5 | 709-1700 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AMT.D1W5 | 1372-2836 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.BB.S1W5 | 736-1765 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.WB.D1S5 | 1545-31194 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AFB.S1W5 | 2567-5133 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.W.D1B5 | 727-1744 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.B.D1W5 | 711-1705 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.B.D1S5 | 1325-2740 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.B.D1W5 | 1349-2789 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.B.D1W5 | 1448-2993 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AF.D1W5 | 1520-3142 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AF.S1W5 | 2517-5034 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AF.D1W5 | 2534-5068 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AFT.D1S5 | 717-1722 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMT.S1W5 | 732-1755 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW93.AFT.D1S5 | 1362-2814 lm | 12-25 W | 3000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AFT.D1S5 | 1386-2865 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AMT.S1S5 | 1473-3043 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AMT.D1B5 | 1482-3064 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFT.D1S5 | 2479-4958 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.AMT.S1B5 | 2471-4941 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AMB.D1S5 | 759-1822 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AMB.D1S5 | 782-1876 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.WB.D1W5 | 1568-3240 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.BB.D1B5 | 1467-3033 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AFB.S1B5 | 1540-3183 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AMB.D1B5 | 2525-5048 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AFB.S1W5 | 2550-5099 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH93.AM.S1B5 | 2492-4984 lm | 20-40 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.AF.S1W5 | 1520-3142 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.AMT.D1W5 | 1473-3043 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.BB.D1S5 | 1489-3077 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 127.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MH94.WB.S1S5 | 2593-5184 lm | 20-40 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.B.S1B5 | 1458-3014 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW94.BT.S1B5 | 1436-2968 lm | 12-25 W | 4000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.AM.S1W5 | 713-1710 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Ma.MW94.AF.S1S5 | 1407-2908 lm | 12-25 W | 4000 K | IP54 | 172 x 90 mm | 150-165 mm | 0.7 kg | 97.70 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AFT.S1W5 | 739-1773 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.WT.D1W5 | 1503-3105 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.BB.S1B5 | 736-1765 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20La.MW93.BB.D1W5 | 1467-3033 lm | 12-25 W | 3000 K | IP54 | 228 x 99 mm | 200-210 mm | 1.1 kg | 152.50 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW93.WAC.S1W5 | 655-1570 lm | 6-14 W | 3000 K | IP54 | 110 x 74 mm | 90-95 mm | 0.6 kg | 138.70 Euro | LDT anfordern | PDF Download | - |
| DO20Sa.MW93.W.D1S5 | 727-1744 lm | 6-14 W | 3000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 84.30 Euro | LDT anfordern | PDF Download | PDF Download |
| DO20Sa.MW94.AF.S1B5 | 741-1778 lm | 6-14 W | 4000 K | IP54 | 110 x 54 mm | 90-95 mm | 0.3 kg | 54.30 Euro | LDT anfordern | PDF Download | PDF Download |
Bruttopreise exkl. Mehrwertsteuer
