Bauform RA7a | RP7a
(vormals Bauform 2970 | 2972)

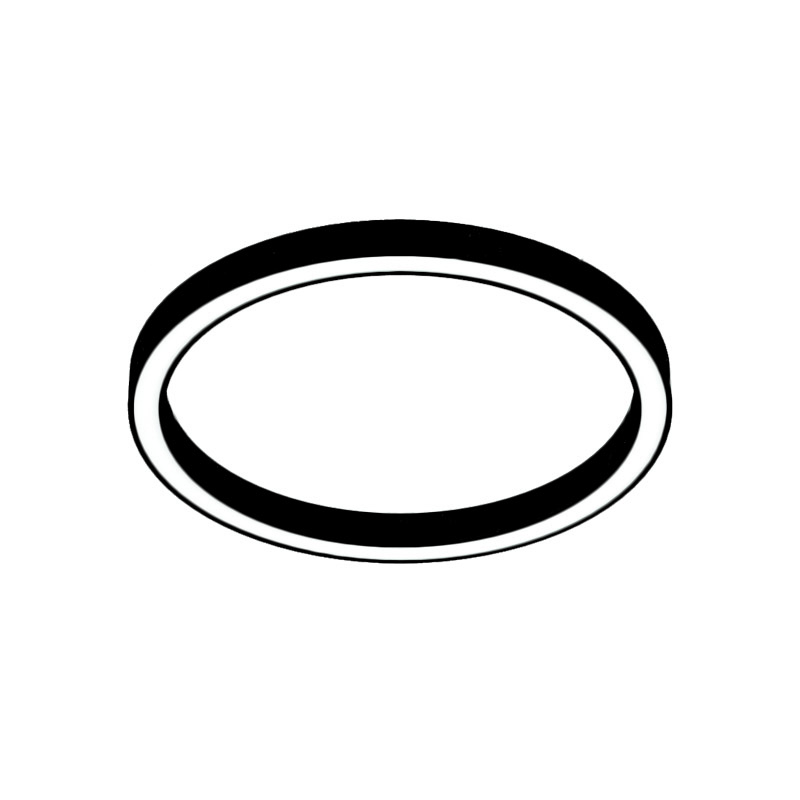

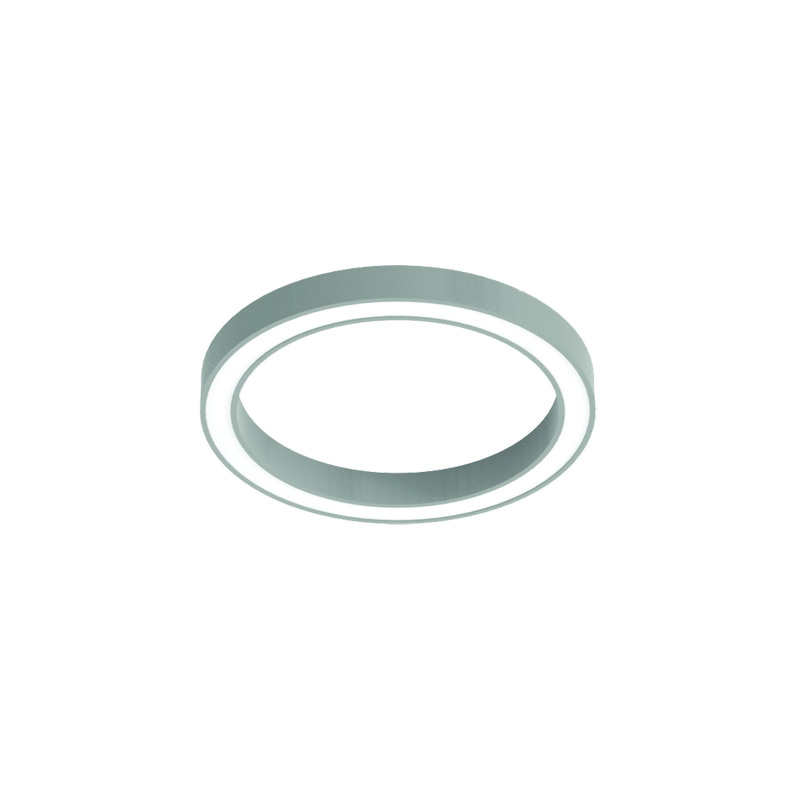

Moderne Ringleuchte in unterschiedlichen Durchmessern.

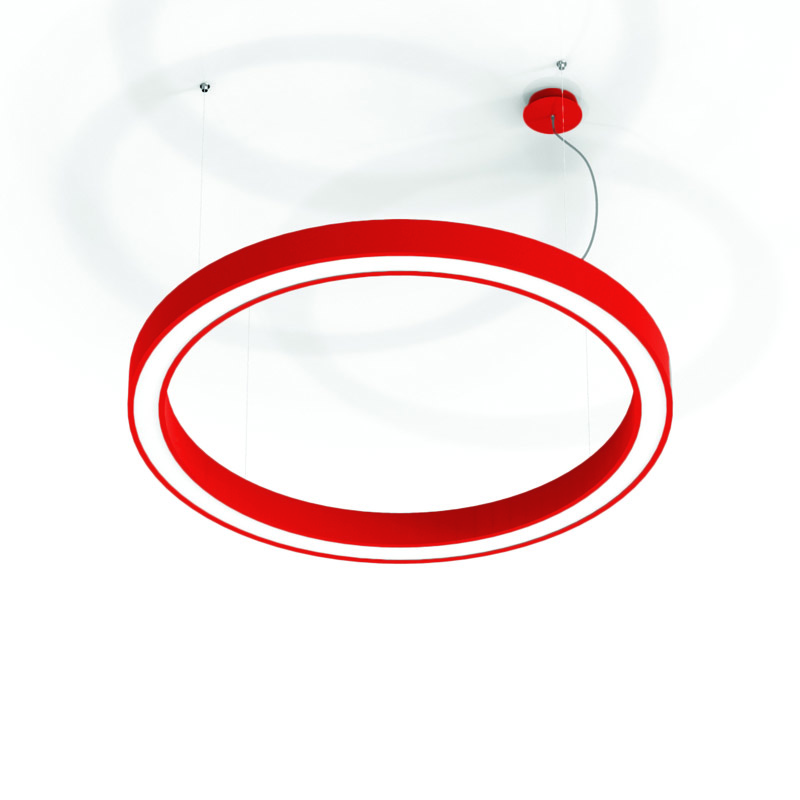

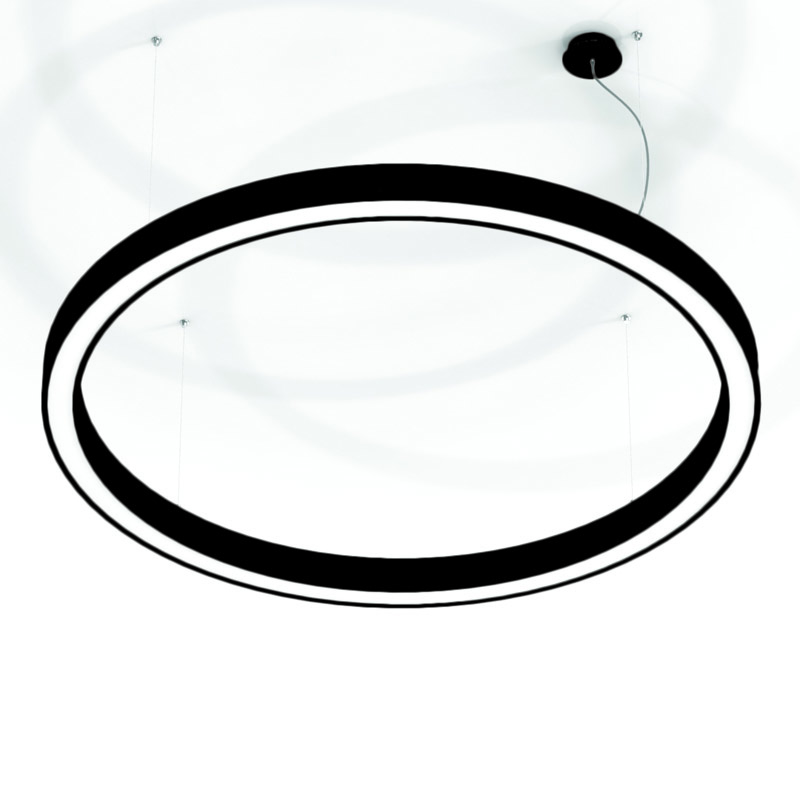

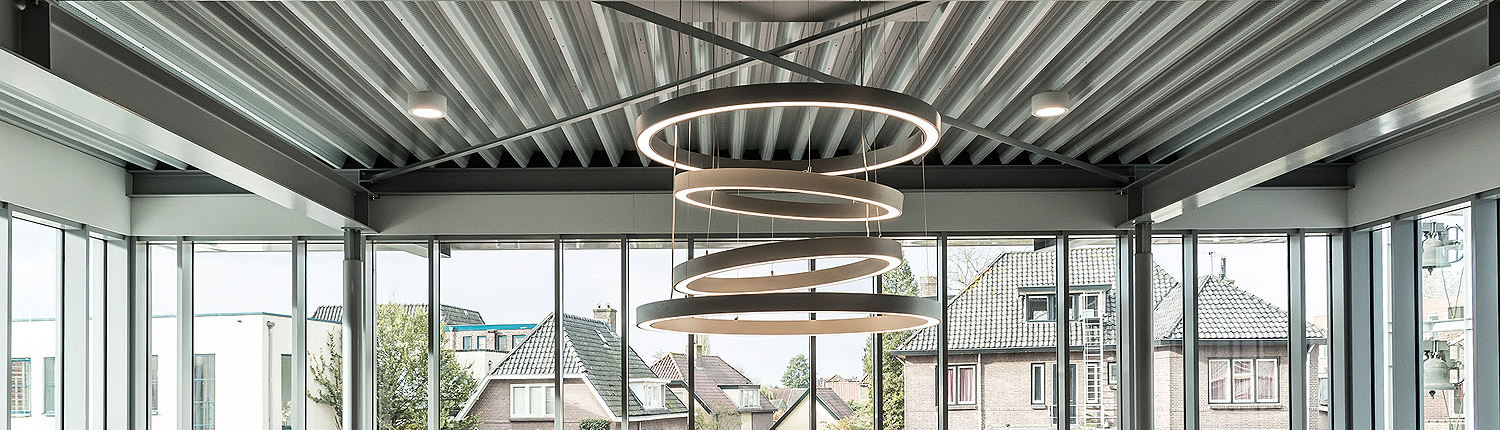

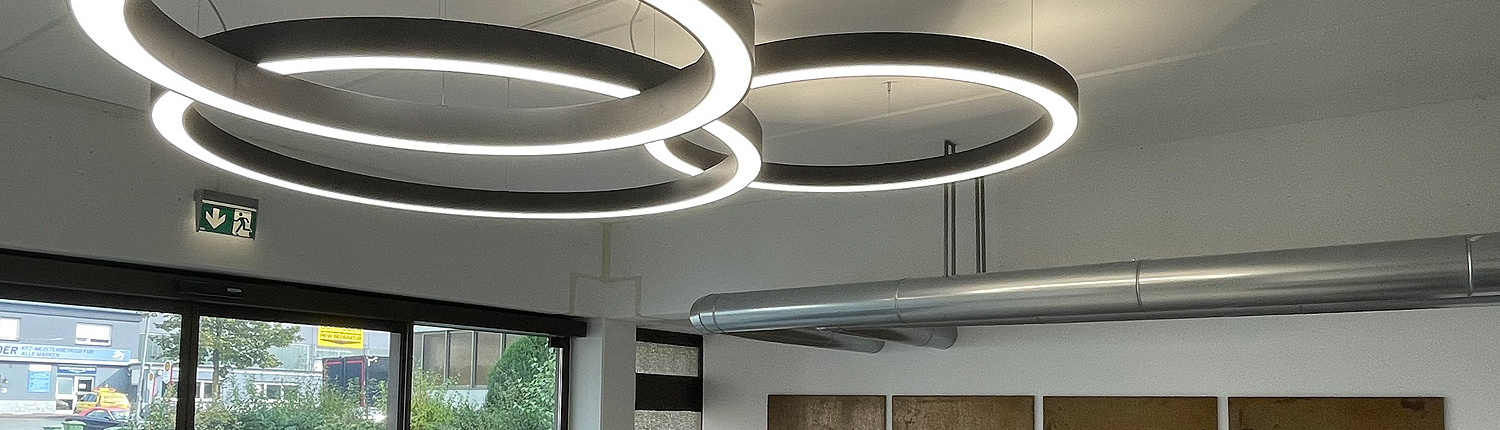

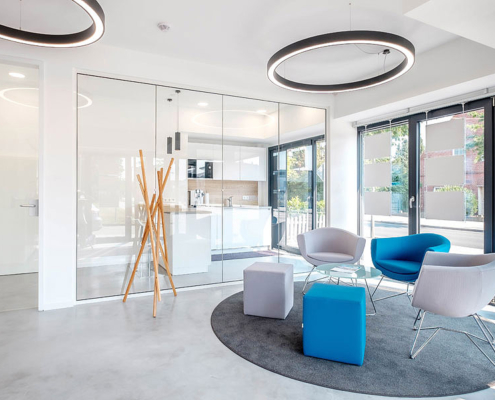

Die Leuchten der Bauform RA7 | RP7 sind als Pendel- oder Anbauleuchten verfügbar. Die Lichtverteilung ist wahlweise direkt oder direkt/indirekt strahlend. Das H-förmige Aluminiumprofil bietet optimale Möglichkeiten für einen getrennt schaltbaren indirekten Lichtanteil oder das Verbauen von Sensorsystemen, Notlichtkomponenten oder Treiber für Tunbable White Anwendungen. Der indirekte Lichtanteil wird durch eine klare PMMA-Scheibe abgedeckt.
Technische Daten
Leuchtkörper

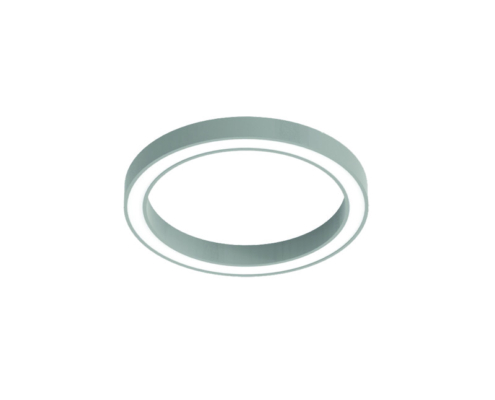

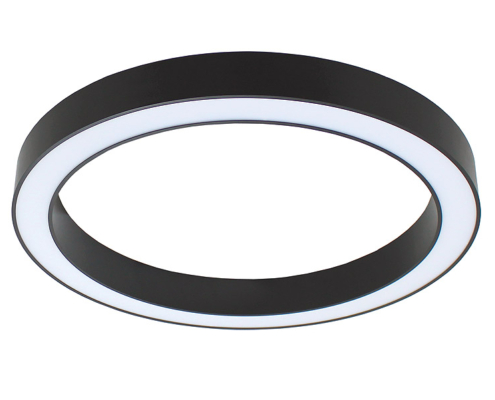

Montageart: Ringleuchte als Aufbau- oder Pendelleuchte
Material: Aluminium

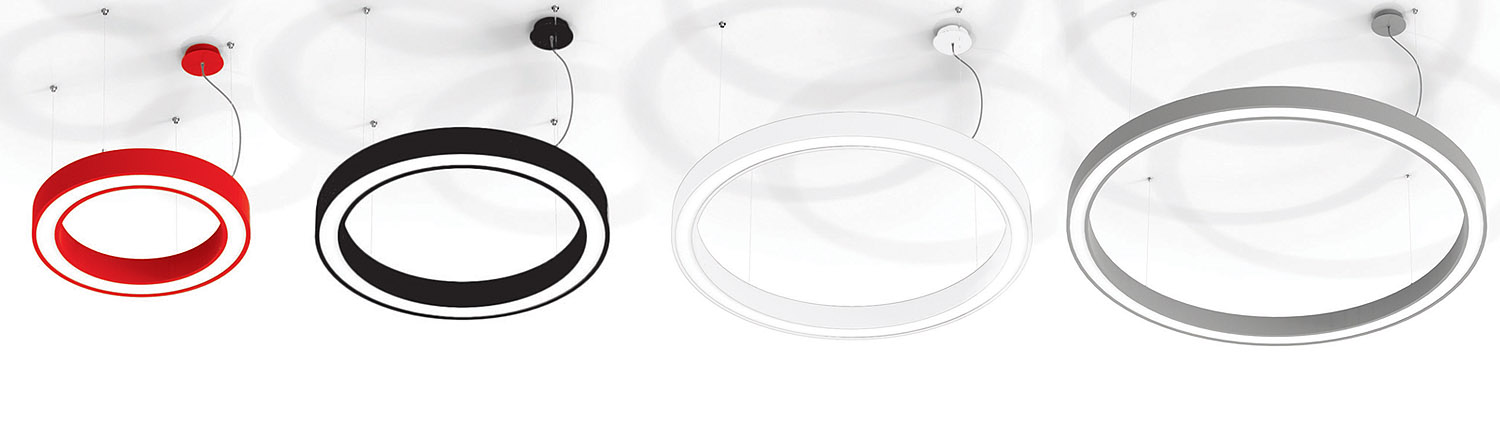

Farbe: Weiß (RAL 9003) | Schwarz (RAL 9005) | Silber (RAL 9006)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar, DALI oder Casambi
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -0 bis +25°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 54.000h (L80 / B10)

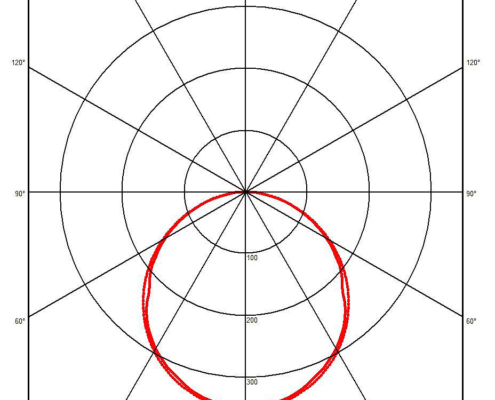

Lichtverteilung: direkt | direkt/indirekt strahlend
LED Binning: SDCM <3
Energieeffizienz: bis zu 93 lm/W
Optisches System
O opale Abdeckung
M mikroprismatische Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: I
Schlagschutz: IK02
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sicherheitskennzeichen: F
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkungen
– weitere RAL Farben auf Anfrage

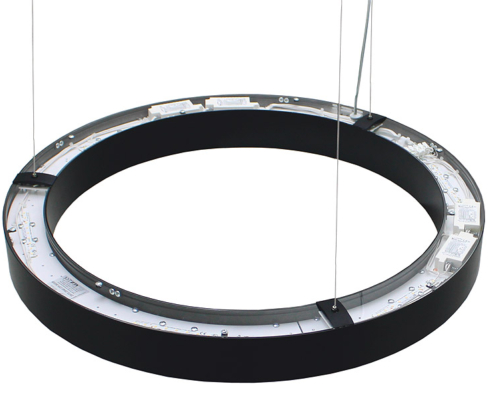

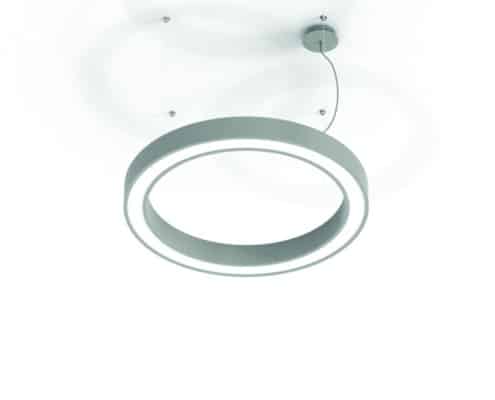

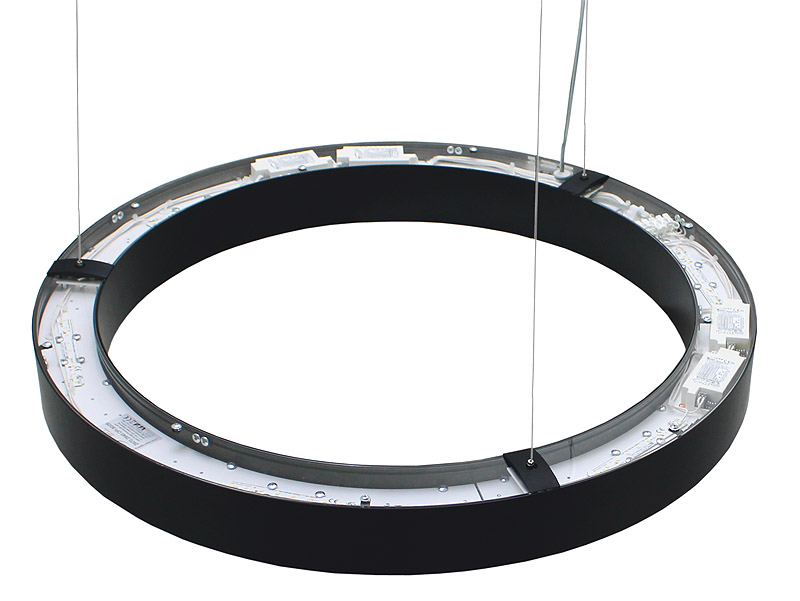

– RP7a: inkl Seilaufhängung und Baldachin
Zubehör
| RP7a.SAZ.1500.B Zentralbaldachin incl. 3 Seilaufhängungen,Länge 1500 mm, schwarz |
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RA7a.7084.M.C0R1 | 4924 lm | 70 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,251.00 Euro | LDT anfordern | PDF Download | - |
| RA7a.4484.O.C0S1 | 3571 lm | 44 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,765.90 Euro | LDT anfordern | PDF Download | - |
| RA7a.8783.O.S0B1 | 6220 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,460.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.8783.M.D0S1 | 5909 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,563.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.O.C0S1 | 4241 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,051.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.M.D0B1 | 4029 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,866.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.10983.O.C0W1 | 7775 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,051.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.10983.M.D0B1 | 7386 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,866.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.O.D0S1 | 5087 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,119.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.6684.M.C0W1 | 5087 lm | 66 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.13383.O.S0S1 | 9486 lm | 133 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 2,969.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.13384.O.C0R1 | 9985 lm | 133 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.8583.O.D0S1 | 6551 lm | 85 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,959.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.8583.M.D0B1 | 6224 lm | 85 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 4,108.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.17183.O.C0S1 | 12196 lm | 171 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.17183.M.D0S1 | 11586 lm | 171 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 4,108.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.10183.O.D0W1 | 7784 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,626.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.10183.M.D0W1 | 7395 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.10184.M.S0R1 | 7784 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,622.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.20284.O.D0B1 | 15165 lm | 202 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,626.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.20284.M.S0W1 | 14407 lm | 202 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,622.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.14283.O.S0R1 | 10944 lm | 142 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,193.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.14283.M.S0S1 | 10397 lm | 142 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,438.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.28584.O.S0W1 | 21396 lm | 285 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,193.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.28583.M.C0S1 | 19310 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.1584.M.D4B1 | 1154 lm | 15 W | 4000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 654.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2683.M.S4B1 | 2014 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 763.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5183.O.C4S1 | 3887 lm | 51 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 921.50 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6283.Oi.D4S1 | 5183 lm | 62 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 895.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4383.Mi.C4W1 | 3492 lm | 43 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,587.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8783.Mi.D4R1 | 6738 lm | 87 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,346.10 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5584.O.S4S1 | 4464 lm | 55 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,822.40 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8983.Mi.D4R1 | 7178 lm | 89 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 4,692.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10184.O.S4W1 | 8194 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,446.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.28584.O.C4R1 | 21396 lm | 285 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.13383.M.C0B1 | 9011 lm | 133 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.M.C0W1 | 4833 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.5384.Oi.C4W1 | 4762 lm | 53 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,955.70 € Euro | LDT anfordern | PDF Download | - |
| RA7a.17184.O.S0B1 | 12838 lm | 171 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,779.20 Euro | LDT anfordern | PDF Download | - |
| RP7a.4384.Mi.D4B1 | 3676 lm | 43 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,346.10 € Euro | LDT anfordern | PDF Download | - |
| RA7a.6684.O.S0B1 | 5355 lm | 66 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 2,969.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.2683.O.C0S1 | 2120 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 874.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.M.D0B1 | 4833 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,236.90 Euro | LDT anfordern | PDF Download | - |
| RP7a.10683.Mi.C4R1 | 7879 lm | 106 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 2,021.90 € Euro | LDT anfordern | PDF Download | - |
| RA7a.2983.M.C0R1 | 2060 lm | 29 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 775.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.7084.M.D0B1 | 4924 lm | 70 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,114.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.8584.O.S0W1 | 6896 lm | 85 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,779.20 Euro | LDT anfordern | PDF Download | - |
| RP7a.3584.O.D4B1 | 2827 lm | 35 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,090.60 € Euro | LDT anfordern | PDF Download | - |
| RA7a.1583.O.C0R1 | 1154 lm | 15 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 752.50 Euro | LDT anfordern | PDF Download | - |
| RA7a.10983.M.C0B1 | 7386 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,141.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.8584.O.C0S1 | 6896 lm | 85 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.28584.O.C0B1 | 21396 lm | 285 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.28583.O.S0R1 | 20326 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,193.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.M.C0W1 | 4029 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,141.80 Euro | LDT anfordern | PDF Download | - |
| RP7a.22983.Oi.S4S1 | 17916 lm | 229 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 5,593.30 € Euro | LDT anfordern | PDF Download | - |
| RA7a.8784.M.S0R1 | 6220 lm | 87 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,533.80 Euro | LDT anfordern | PDF Download | - |
| RP7a.10184.M.D4S1 | 7784 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8783.M.D4S1 | 5909 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,598.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.1583.O.S4S1 | 1154 lm | 15 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 598.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.1583.M.S4B1 | 1097 lm | 15 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 624.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2983.O.C4W1 | 2168 lm | 29 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 813.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2984.O.C4S1 | 2282 lm | 29 W | 4000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 813.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2683.O.D4W1 | 2120 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 748.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2684.O.S4S1 | 2232 lm | 26 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 718.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2684.M.C4B1 | 2120 lm | 26 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 962.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3284.Oi.D4S1 | 2976 lm | 32 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 895.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3283.Mi.C4R1 | 2686 lm | 32 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 1,223.10 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5184.O.S4W1 | 4092 lm | 51 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 718.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5184.M.D4W1 | 3887 lm | 51 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 793.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6284.Oi.S4B1 | 5456 lm | 62 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 835.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6283.Mi.D4S1 | 4924 lm | 62 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 941.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3583.O.C4S1 | 2686 lm | 35 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,229.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3583.M.D4W1 | 2551 lm | 35 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,148.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3584.M.C4B1 | 2686 lm | 35 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,282.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4383.Oi.C4S1 | 3676 lm | 43 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,535.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4383.Mi.S4R1 | 3492 lm | 43 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,286.10 € Euro | LDT anfordern | PDF Download | - |
| RP7a.7083.O.C4S1 | 4924 lm | 70 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,229.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.7083.M.D4W1 | 4678 lm | 70 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,148.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.7084.M.C4S1 | 4924 lm | 70 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,282.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8784.Oi.C4W1 | 7093 lm | 87 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,535.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8784.Mi.S4B1 | 6738 lm | 87 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,286.10 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4483.O.D4R1 | 3392 lm | 44 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,524.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4483.M.C4W1 | 3223 lm | 44 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,686.50 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4484.M.C4S1 | 3392 lm | 44 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,686.50 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5384.Oi.D4W1 | 4762 lm | 53 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,755.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5383.Mi.S4R1 | 3223 lm | 53 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,769.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8783.O.C4W1 | 6220 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,620.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8784.O.D4R1 | 6547 lm | 87 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,524.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8784.M.D4B1 | 6220 lm | 87 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,598.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10683.Oi.S4R1 | 8294 lm | 106 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,695.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10683.Mi.S4B1 | 7879 lm | 106 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,769.00 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5583.O.C4W1 | 4241 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,915.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5584.O.S4R1 | 4464 lm | 55 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,822.40 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5584.M.D4B1 | 4241 lm | 55 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,942.50 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6783.Oi.C4R1 | 5654 lm | 67 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,295.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6783.Mi.S4B1 | 5372 lm | 67 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,162.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6784.Mi.D4R1 | 5654 lm | 67 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,222.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10984.O.S4B1 | 8184 lm | 109 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,822.40 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10983.M.D4R1 | 7386 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,942.50 € Euro | LDT anfordern | PDF Download | - |
| RP7a.13383.Oi.C4B1 | 10366 lm | 133 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,295.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.13384.Oi.C4R1 | 10912 lm | 133 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,295.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.13384.Mi.S4S1 | 10366 lm | 133 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,162.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6684.O.C4W1 | 5355 lm | 66 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.6683.M.D4S1 | 4833 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,206.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8983.Oi.S4W1 | 7556 lm | 89 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 4,394.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8984.Oi.S4S1 | 5954 lm | 89 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 4,394.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8984.Mi.C4S1 | 7556 lm | 89 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.13384.O.C4W1 | 9985 lm | 133 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.13384.M.C4W1 | 9486 lm | 133 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.17883.Oi.C4S1 | 13926 lm | 178 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.17883.Mi.S4W1 | 13230 lm | 178 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 4,512.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.17884.Mi.C4R1 | 13926 lm | 178 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.8584.O.S4S1 | 6896 lm | 85 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,779.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8583.M.D4R1 | 6224 lm | 85 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 4,108.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.11483.Oi.C4W1 | 9679 lm | 114 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.11484.Oi.C4S1 | 10188 lm | 114 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.11484.Mi.D4W1 | 9679 lm | 114 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 6,042.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.17183.O.S4S1 | 12196 lm | 171 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,779.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.17183.M.C4B1 | 11586 lm | 171 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.22983.Oi.S4W1 | 17916 lm | 229 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 5,593.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.22984.Oi.C4S1 | 18859 lm | 229 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.22984.Mi.D4W1 | 17916 lm | 229 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 6,042.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10183.O.C4B1 | 7784 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.10183.M.D4W1 | 7395 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.10184.M.D4R1 | 7784 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.13484.Oi.S4B1 | 11975 lm | 134 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 6,580.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.13483.Mi.C4S1 | 10807 lm | 134 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.20283.O.S4W1 | 14407 lm | 202 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,446.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.20284.O.D4B1 | 15165 lm | 202 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,626.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.20283.M.C4S1 | 13686 lm | 202 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.27083.Oi.D4B1 | 21124 lm | 270 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 6,880.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.27084.Oi.C4R1 | 22236 lm | 270 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.27084.Mi.D4S1 | 21124 lm | 270 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 7,056.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.14284.O.D4W1 | 11520 lm | 142 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,373.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.14283.M.S4S1 | 10397 lm | 142 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,438.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.19083.Oi.D4W1 | 16130 lm | 190 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 9,586.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.19084.Oi.C4S1 | 16979 lm | 190 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.19084.Mi.D4W1 | 16130 lm | 190 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 9,831.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.28583.O.D4S1 | 20326 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,493.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.28583.M.S4B1 | 19310 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,438.80 € Euro | LDT anfordern | PDF Download | - |
| RP7a.28584.M.C4R1 | 20326 lm | 285 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.38084.Oi.C4B1 | 31295 lm | 380 W | 4000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.38083.Mi.C4R1 | 28244 lm | 380 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.1583.O.D0S1 | 1154 lm | 15 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 584.30 Euro | LDT anfordern | PDF Download | - |
| RA7a.1583.M.C0W1 | 1097 lm | 15 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 775.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.2983.O.D0W1 | 2168 lm | 29 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 584.30 Euro | LDT anfordern | PDF Download | - |
| RA7a.2983.M.S0W1 | 2060 lm | 29 W | 3000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 580.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.2683.O.S0W1 | 2120 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 693.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.2683.M.C0W1 | 2014 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 914.10 Euro | LDT anfordern | PDF Download | - |
| RA7a.5183.O.D0B1 | 3887 lm | 51 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 723.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.5184.O.C0S1 | 4092 lm | 51 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 874.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.5184.M.D0R1 | 3887 lm | 51 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 769.10 Euro | LDT anfordern | PDF Download | - |
| RA7a.3584.O.D0B1 | 2827 lm | 35 W | 4000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,056.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.3583.M.C0R1 | 2551 lm | 35 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,251.00 Euro | LDT anfordern | PDF Download | - |
| RA7a.7083.O.D0B1 | 4924 lm | 70 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,056.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.7083.M.S0W1 | 4678 lm | 70 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,084.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.4483.O.S0W1 | 3392 lm | 44 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,460.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.4483.M.C0W1 | 3223 lm | 44 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,839.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.8783.O.C0B1 | 6220 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,765.90 Euro | LDT anfordern | PDF Download | - |
| RA7a.8783.M.C0R1 | 5909 lm | 87 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,839.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.O.C0B1 | 4241 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,051.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.M.S0S1 | 4029 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,836.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.10983.O.S0B1 | 7775 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,746.00 Euro | LDT anfordern | PDF Download | - |
| RA7a.10983.M.S0S1 | 7386 lm | 109 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,836.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.O.S0S1 | 5087 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 2,969.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.M.D0R1 | 4833 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,236.90 Euro | LDT anfordern | PDF Download | - |
| RA7a.13383.O.D0S1 | 9486 lm | 133 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,119.40 Euro | LDT anfordern | PDF Download | - |
| RA7a.13383.M.D0W1 | 9011 lm | 133 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,236.90 Euro | LDT anfordern | PDF Download | - |
| RA7a.8583.O.D0W1 | 6551 lm | 85 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,959.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.8583.M.C0S1 | 6224 lm | 85 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.17184.O.S0W1 | 12838 lm | 171 W | 4000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | 3,779.20 Euro | LDT anfordern | PDF Download | - |
| RA7a.17183.M.C0R1 | 11586 lm | 171 W | 3000 K | IP40 | Ø 2520 x 70 x 77 mm | - | 24.5 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.10183.O.C0W1 | 7784 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.10183.M.C0W1 | 7395 lm | 101 W | 3000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.10184.M.D0R1 | 7784 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.20284.O.S0S1 | 15165 lm | 202 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,446.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.20284.M.D0W1 | 14407 lm | 202 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | 4,802.60 Euro | LDT anfordern | PDF Download | - |
| RA7a.14283.O.D0R1 | 10944 lm | 142 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,433.70 Euro | LDT anfordern | PDF Download | - |
| RA7a.14283.M.D0S1 | 10397 lm | 142 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,678.80 Euro | LDT anfordern | PDF Download | - |
| RA7a.28583.O.C0R1 | 20326 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RA7a.28583.M.S0S1 | 19310 lm | 285 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 6,438.80 Euro | LDT anfordern | PDF Download | - |
| RP7a.1584.M.D4R1 | 1154 lm | 15 W | 4000 K | IP40 | Ø 444 x 70 x 77 mm | - | 3.6 kg | 654.70 € Euro | LDT anfordern | PDF Download | - |
| RP7a.2683.M.D4B1 | 2014 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 793.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.5183.O.D4R1 | 3887 lm | 51 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 748.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6283.Oi.C4S1 | 5183 lm | 62 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 1,181.90 € Euro | LDT anfordern | PDF Download | - |
| RP7a.4383.Mi.S4B1 | 3492 lm | 43 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,286.10 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8783.Mi.C4R1 | 6738 lm | 87 W | 3000 K | IP40 | Ø 980 x 70 x 77 mm | - | 8.9 kg | 1,587.30 € Euro | LDT anfordern | PDF Download | - |
| RP7a.6783.Oi.D4R1 | 5654 lm | 67 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,132.60 € Euro | LDT anfordern | PDF Download | - |
| RP7a.8983.Mi.C4R1 | 7178 lm | 89 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.10184.O.C4W1 | 8194 lm | 101 W | 4000 K | IP40 | Ø 2965 x 70 x 77 mm | - | 28.9 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.38083.Mi.S4S1 | 28244 lm | 380 W | 3000 K | IP40 | Ø 4130 x 70 x 77 mm | - | 40.2 kg | 9,411.80 € Euro | LDT anfordern | PDF Download | - |
| RA7a.13383.M.D0B1 | 9011 lm | 133 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,236.90 Euro | LDT anfordern | PDF Download | - |
| RA7a.5583.O.C0W1 | 4241 lm | 55 W | 3000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 2,051.70 Euro | LDT anfordern | PDF Download | - |
| RP7a.10683.Mi.C4S1 | 7879 lm | 106 W | 3000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 2,021.90 € Euro | LDT anfordern | PDF Download | - |
| RA7a.6684.M.C0S1 | 5087 lm | 66 W | 4000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | auf Anfrage Euro | LDT anfordern | PDF Download | - |
| RP7a.4484.M.D4R1 | 3392 lm | 44 W | 4000 K | IP40 | Ø 1240 x 70 x 77 mm | - | 11.1 kg | 1,598.20 € Euro | LDT anfordern | PDF Download | - |
| RP7a.3284.Mi.S4B1 | 2827 lm | 32 W | 4000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 881.30 € Euro | LDT anfordern | PDF Download | - |
| RA7a.2683.M.S0W1 | 2014 lm | 26 W | 3000 K | IP40 | Ø 770 x 70 x 77 mm | - | 6.8 kg | 739.10 Euro | LDT anfordern | PDF Download | - |
| RA7a.6683.M.S0R1 | 4833 lm | 66 W | 3000 K | IP40 | Ø 1980 x 70 x 77 mm | - | 19.3 kg | 3,086.90 Euro | LDT anfordern | PDF Download | - |
| RP7a.10984.M.D4W1 | 7775 lm | 109 W | 4000 K | IP40 | Ø 1519 x 70 x 77 mm | - | 14.8 kg | 1,942.50 € Euro | LDT anfordern | PDF Download | - |
Bruttopreise exkl. Mehrwertsteuer
