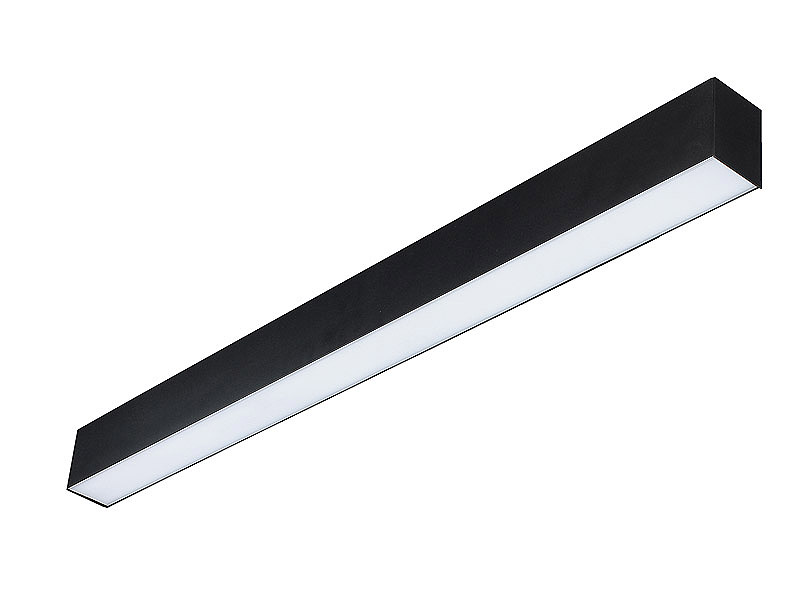

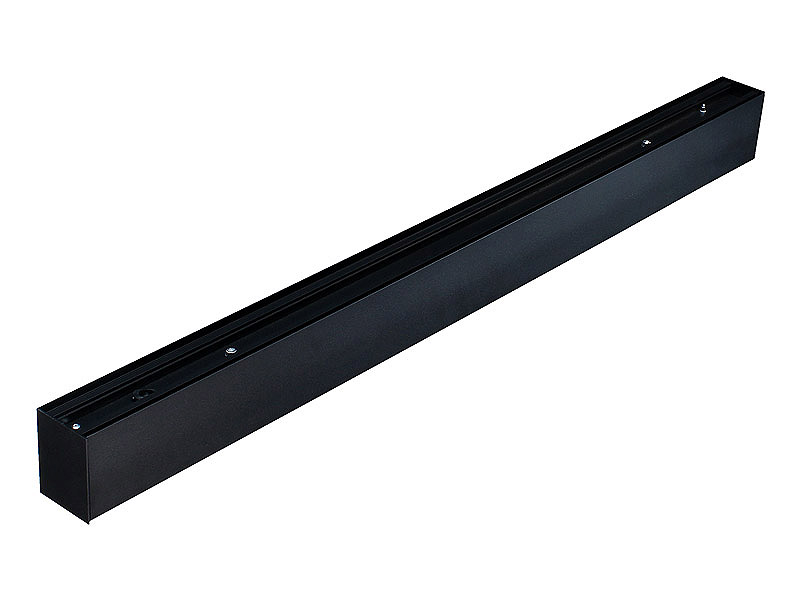

Bauform PL96
Individuell konfigurierbares Aluminiumprofil abgependelt oder für die direkte Deckenmontage. Einfache Verbindung der unterschiedlichen Profilstücke. Befestigung der Geräteträger mithilfe eines Magentsystems. Mikroprismatische Abdeckung bis zu 20m aus einem Stück um Stoßkanten innerhalb des optischen Systems zu vermeiden.

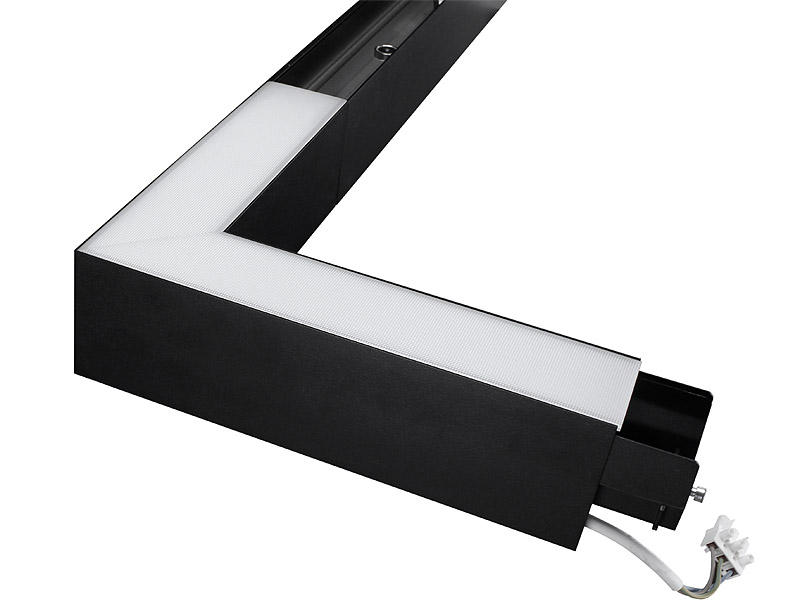

Direkt/indirekte Lichtverteilung und beleuchtete Eckverbinder optional verfügbar.
Technische Daten
Leuchtkörper
Montageart: Aufbauleuchte | Pendelleuchte
Material: Aluminium
Farbe: Weiß (RAL 9003) | Schwarz (RAL 9005) | Silber (RAL 9006)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -10 bis +45°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 80.000h (L80 / B20)
Lichtverteilung: direkt strahlend | direkt/indirekt strahlend
Ausstrahlwinkel:
Blendungsbegrenzung:
LED Binning: SDCM <3
Energieeffizienz: bis zu 116 lm/W
Optisches System
M mikroprismatische Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: I
Schlagschutz:IK02
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sicherheitskennzeichen:
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkungen
– weitere RAL Farben auf Anfrage
Zubehör
Zubehör:
| PL96.SA.1500/E | Seilaufhängung für System PL96 | Länge 1500 mm | Einzelstück | auf Anfrage | |
| PL96.SA.1500/S | Seilaufhängung für System PL96 | Länge 1500 mm | Set (2 Stück) | auf Anfrage | |
| PL96.TR.3×0,75 | Zuleitung Transparent 5×0,75 mm² | Länge 1500 mm | auf Anfrage | ||
| PL96.TR.3×1,5 | Zuleitung Transparent 3×1,5 mm² | Länge 1500 mm | auf Anfrage | ||
| PL96.TR.5×1,5 | Zuleitung Transparent 5×1,5 mm² | Länge 1500 mm | auf Anfrage | ||
| PL96.VBE | Verbinder für System PL96 | Endleuchte | 8,10 € | ||
| PL96.VBA | Verbinder für System PL96 | Anfangsleuchte | 8,10 € | ||
| PL96.VBM | Verbinder für System PL96 | Mittelleuchte | 16,10 € | ||
| PL96.VBE.D | Verbinder für System PL96 | Endleuchte | für DALI Leuchten | 12,10 € | |
| PL96.VBA.D | Verbinder für System PL96 | Anfangsleuchte | für DALI Leuchten | 12,10 € | |
| PL96.VBM.D | Verbinder für System PL96 | Mittelleuchte | für DALI Leuchten | 24,20 € | |
| PL96.VBL | L-Verbinder für System PL96 | 64,80 € | |||
| PL96.EK | Endkappe für System PL96 | Metall | Set (2 Stück) | 7,00 € |
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PL96Sa.2083.M.S4B1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.D0W1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.S0B1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.D0B1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.S0B1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.D4B1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.D4B1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.D4B1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.S4W1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.D0B1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.S4B1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.D0B1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.D0W1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.S0W1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.S0W1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.D4W1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.S4B1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.D4B1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.S4B1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.S0W1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.D4B1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.D4W1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.S0B1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.D4B1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.D0W1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.S0W1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.D4W1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.D0B1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.D4B1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.D0B1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.S0W1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.D4W1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.D0W1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.S0B1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.S4W1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.S0B1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.S4B1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.D0W1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.S0B1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.D4W1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.D0B1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.S4W1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.D0B1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.D4B1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.S0B1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.D0B1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.D0B1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.D4W1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.D4B1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.D4W1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.S0W1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.S0W1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.S4B1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.S4B1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.S0W1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.S0B1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.S4W1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.D0W1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.D0W1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.S0W1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.D4B1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.S4B1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.S0B1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.D0W1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.S4W1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.S4W1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.S4W1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.S0W1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.S4B1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.S4B1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 131.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.S4W1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.S4B1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.D4W1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.D4W1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.D0W1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6583.M.D0B1 | 6500 lm | 65 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.D0B1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.D4W1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.S4W1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.S0B1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.S0B1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.S4W1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96La.5483.M.D4W1 | 5400 lm | 54 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2084.M.D0W1 | 2200 lm | 20 W | 4000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.S0B1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5384.Mi.S0W1 | 6150 lm | 53 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.S4B1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 221.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.D0B1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.D4W1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.S0W1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.D4W1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.D0B1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.D0W1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 246.30 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.6584.M.D4B1 | 7150 lm | 65 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | - | 251.50 € Euro | LDT anfordern | PDF Download | - |
| PL96La.6683.Mi.D4B1 | 6850 lm | 66 W | 3000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.S0B1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7983.Mi.S4W1 | 9050 lm | 79 W | 3000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.D0B1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.S4B1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.D0W1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.S4W1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.D0W1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 274.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.S4B1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 268.10 Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.D4W1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 230.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Sa.2083.M.D0W1 | 2000 lm | 20 W | 3000 K | IP40 | 570 x 70 x 93 mm | - | - | 161.30 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4383.M.D4B1 | 4320 lm | 43 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | - | 209.30 € Euro | LDT anfordern | PDF Download | - |
| PL96La.5484.M.S4W1 | 5940 lm | 54 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | - | 200.70 € Euro | LDT anfordern | PDF Download | - |
| PL96Ma.5383.Mi.S0B1 | 5600 lm | 53 W | 3000 K | IP40 | 1130 x 70 x 93 mm | - | 3.3 kg | $ 216.30 Euro | LDT anfordern | PDF Download | - |
| PL96La.6684.Mi.S4W1 | 7540 lm | 66 W | 4000 K | IP40 | 1410 x 70 x 93 mm | - | 4.2 kg | $ 244.60 Euro | LDT anfordern | PDF Download | - |
| PL96XLa.7984.Mi.D4B1 | 8250 lm | 79 W | 4000 K | IP40 | 1670 x 70 x 93 mm | - | 4.8 kg | $ 298.10 Euro | LDT anfordern | PDF Download | - |
| PL96Ma.4384.M.S0W1 | 4730 lm | 43 W | 4000 K | IP40 | 1130 x 70 x 93 mm | - | - | 179.30 € Euro | LDT anfordern | PDF Download | - |
