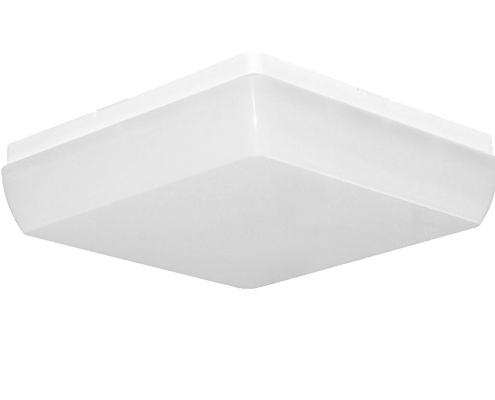

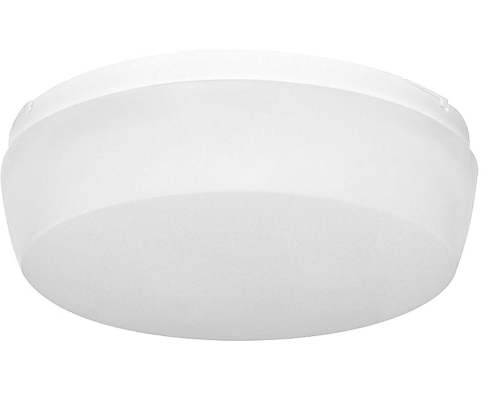

Bauform AB50
(vormals Bauform 7242n)

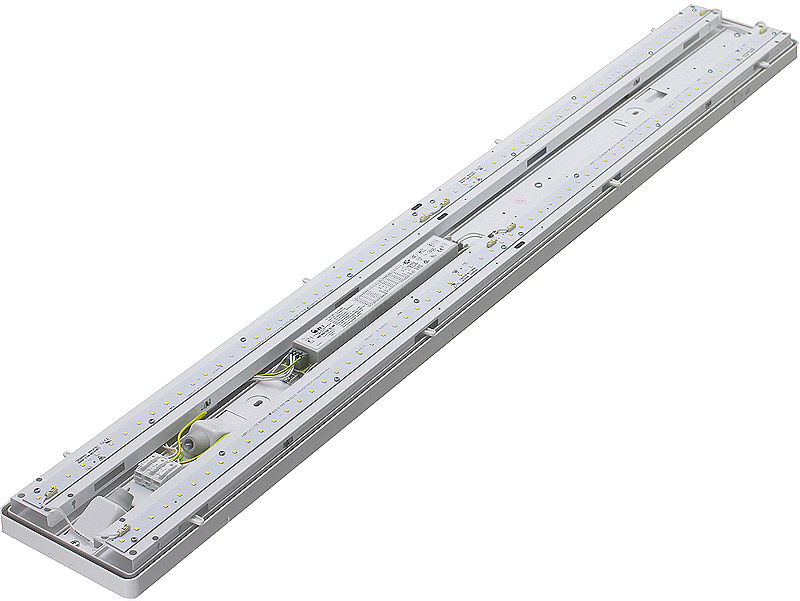

LED Industrieleuchte in einem schlichten Design.
Opale Polycarbonatabdeckung aus einem schlagzähen Polycarbonat (IK10).
Mit Lumenwerten bis zu 7130 lm netto, einem Wirkungsgrad von knapp 143 lm/W und der Schutzart IP54 finden diese Leuchten überall dort ihren Einsatz, wo eine effiziente LED Beleuchtung mit guten Lichtwerten und einer hohen Schutzart benötigt wird.
Technische Daten
Leuchtkörper
Montageart: Aufbauleuchte
Material: Polycarbonat
Farbe: Weiß (RAL 9003)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -20°C bis +35°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000h (L90 | B10)
Lichtverteilung: direkt strahlend
LED Binning: SDCM <3
Energieeffizienz: bis zu 143 lm/W
Optisches System
PC opale Polycarbonatabdeckung, UV-stabilisiert
Prüfungen
Schutzart: IP54
Schutzklasse: I
Schlagschutz: IK10
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sicherheitskennzeichen:
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Zubehör
Downloads

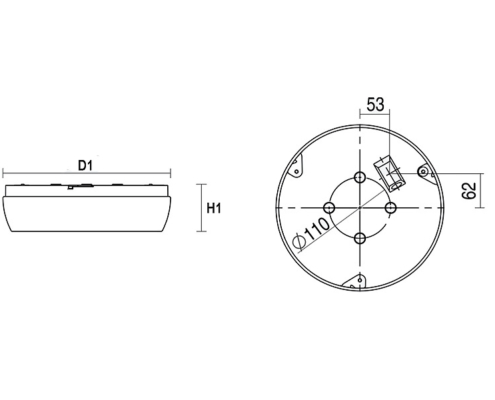

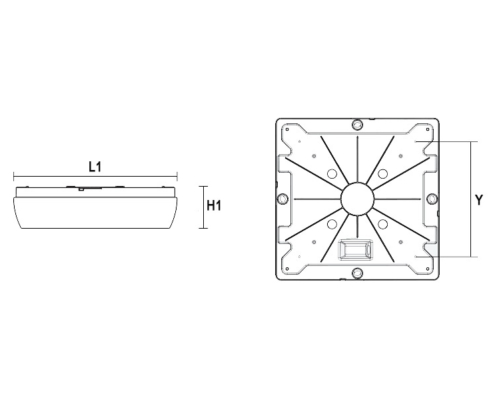

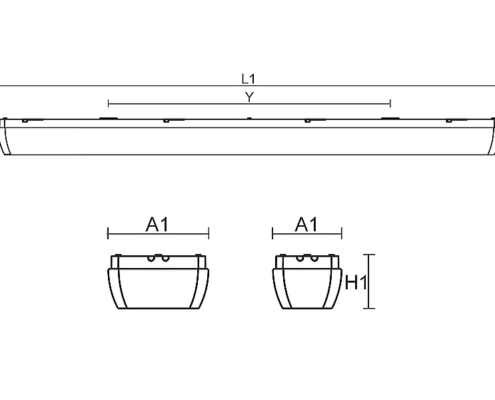

| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AB50Ra.1484.OP.S0W5 | 1790 lm | 14 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 54.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1684.OP.D0W5 | 2180 lm | 16 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 108.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.984.OP.H0W5 | 1250 lm | 9 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 104.40 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.4483.OP.H0W5 | 6042 lm | 50 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 127.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.4484.OP.H0W5 | 6360 lm | 50 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 127.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1984.OP.D0W5 | 2600 lm | 19 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 108.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1484.OP.K0W5 | 1820 lm | 14 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 134.40 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.4483.OP.K0W5 | 6042 lm | 50 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 157.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1484.OP.H0W5 | 1820 lm | 14 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 104.40 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1683.OP.S0W5 | 2071 lm | 16 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 78.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2684.OP.S0W5 | 3610 lm | 26 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 80.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1684.OP.K0W5 | 2030 lm | 16 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 134.40 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.2384.OP.H0W5 | 2810 lm | 23 W | 4000 K | IP54 | 300 x 85 mm | - | 1.1 kg | 94.70 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1684.OP.H0W5 | 2030 lm | 16 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 104.40 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.984.OP.S0W5 | 1250 lm | 9 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 62.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2684.OP.D0W5 | 3610 lm | 26 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 110.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.2384.OP.H0W5 | 2850 lm | 23 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.5 kg | 108.80 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2784.OP.H0W5 | 3860 lm | 27 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 124.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3084.OP.D0W5 | 4290 lm | 30 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 126.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1484.OP.S0W5 | 1820 lm | 14 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 62.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3084.OP.S0W5 | 4290 lm | 30 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 96.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.984.OP.H0W5 | 1230 lm | 9 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 90.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3384.OP.K0W5 | 4610 lm | 33 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 154.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1484.OP.D0W5 | 1820 lm | 14 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 92.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3684.OP.S0W5 | 5120 lm | 36 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 96.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1484.OP.H0W5 | 1790 lm | 14 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 90.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.5083.OP.S0W5 | 6774 lm | 50 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 102.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1684.OP.S0W5 | 2030 lm | 16 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 62.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3684.OP.D0W5 | 5120 lm | 36 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 126.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1484.OP.K0W5 | 1790 lm | 14 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 120.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3683.OP.S0W5 | 4864 lm | 36 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 96.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.1684.OP.D0W5 | 2030 lm | 16 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.4 kg | 92.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.5084.OP.D0W5 | 7130 lm | 50 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 132.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1684.OP.H0W5 | 2010 lm | 16 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 90.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.5084.OP.S0W5 | 7130 lm | 50 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 102.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.2384.OP.S0W5 | 2850 lm | 23 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.5 kg | 62.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1683.OP.D0W5 | 2071 lm | 16 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 108.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1684.OP.K0W5 | 2010 lm | 16 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 120.30 € Euro | LDT anfordern | PDF Download | - |
| AB50MBa.MW84.OP.S0W5 | 4750-7130 lm | 33-50 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 132.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.2384.OP.D0W5 | 2850 lm | 23 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.5 kg | 92.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1983.OP.S0W5 | 2470 lm | 19 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 78.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.2384.OP.K0W5 | 2810 lm | 23 W | 4000 K | IP54 | 300 x 85 mm | - | 1.1 kg | 124.70 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.2384.OP.D0W5 | 2810 lm | 23 W | 4000 K | IP54 | 300 x 85 mm | - | 1.2 kg | 98.20 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.984.OP.S0W5 | 1230 lm | 9 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 54.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2683.OP.S0W5 | 3430 lm | 26 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 80.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2784.OP.K0W5 | 3860 lm | 27 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 154.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1983.OP.D0W5 | 2470 lm | 19 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 108.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1484.OP.D0W5 | 1790 lm | 14 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 84.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3083.OP.S0W5 | 4076 lm | 30 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 96.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.4484.OP.K0W5 | 6360 lm | 50 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 157.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1984.OP.S0W5 | 2600 lm | 19 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 78.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1684.OP.S0W5 | 2010 lm | 16 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 54.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3083.OP.D0W5 | 4076 lm | 30 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 126.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2783.OP.H0W5 | 3667 lm | 27 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 124.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Qa.2384.OP.K0W5 | 2850 lm | 23 W | 4000 K | IP54 | 330 x 330 x 85 mm | - | 1.5 kg | 138.80 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.1684.OP.D0W5 | 2010 lm | 16 W | 4000 K | IP54 | 300 x 85 mm | - | 1 kg | 84.30 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3683.OP.D0W5 | 4864 lm | 36 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 126.60 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2783.OP.K0W5 | 3667 lm | 27 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.5 kg | 154.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.2683.OP.D0W5 | 3430 lm | 26 W | 3000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 110.50 € Euro | LDT anfordern | PDF Download | - |
| AB50Ra.2384.OP.S0W5 | 2810 lm | 23 W | 4000 K | IP54 | 300 x 85 mm | - | 1.2 kg | 68.20 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.5083.OP.D0W5 | 6774 lm | 50 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.8 kg | 132.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3383.OP.H0W5 | 4380 lm | 33 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 124.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3384.OP.H0W5 | 4610 lm | 33 W | 4000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 124.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.1684.OP.S0W5 | 2180 lm | 16 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 1.9 kg | 78.90 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.MW84.OP.S0W5 | 2410-3610 lm | 17-26 W | 4000 K | IP54 | 1160 x 109 x 85 mm | - | 2.8 kg | 102.10 € Euro | LDT anfordern | PDF Download | - |
| AB50Ma.3383.OP.K0W5 | 4380 lm | 33 W | 3000 K | IP54 | 1160 x 159 x 85 mm | - | 2.6 kg | 154.90 € Euro | LDT anfordern | PDF Download | - |
Bruttopreise exkl. Mehrwertsteuer
