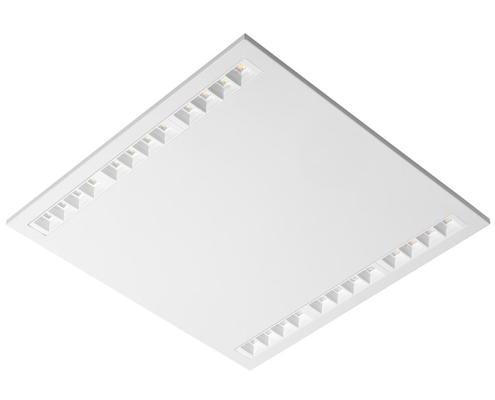

Bauform P75a
(vormals Bauform 6075)
Die Leuchten der Bauform P75 bieten die Möglichkeit hochwertiger und effizienter Beleuchtung in Bürobereichen. Dank der modernen Low Glare Raster (LGR) werden Blendungsbegrenzungswerte von unter 16 erreicht (UGR <16). Die LG-Raster sind in drei verschiedenen Farben lieferbar. Die Leuchten der Bauform P75 können sowohl als Einbau- als auch als Einlegeleuchten gefertigt werden.
Auf Kundenwunsch kann auch ein entsprechendes Aufbaugehäuse angeboten werden.
Technische Daten
Leuchtkörper

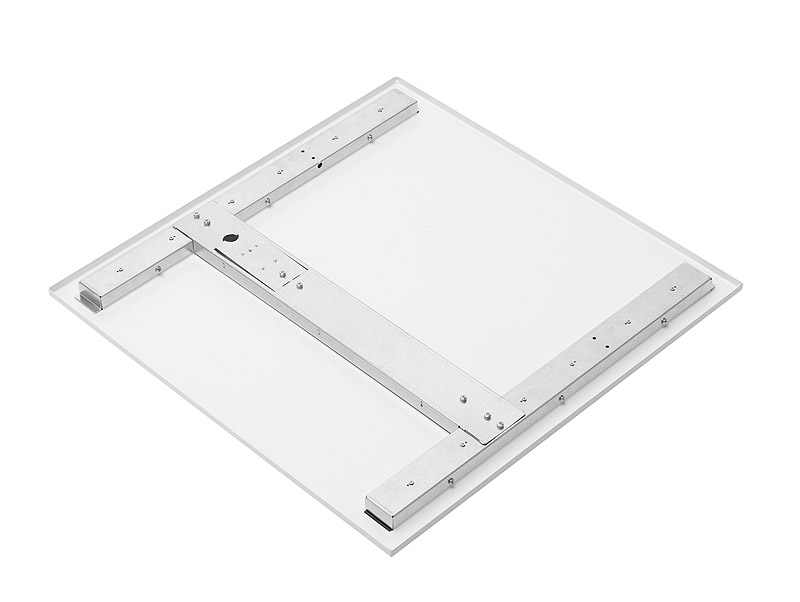

Montageart: Einlegeleuchte
Material: Stahlblech
Farbe: Weiß (RAL 9003) | Schwarz (RAL 9005) | Silber (RAL 9006)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -20 bis +25°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 72.000h (L80 / B10)
Lichtverteilung: direkt strahlend
Blendungsbegrenzung: UGR<19 | UGR<16
LED Binning: SDCM <3
Energieeffizienz: bis zu 120 lm/W
Optisches System
LW Low Glare Raster weiß (UGR<19)

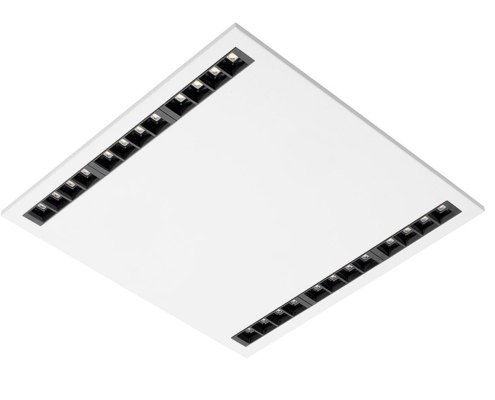

LB Low Glare Raster schwarz (UGR<16)

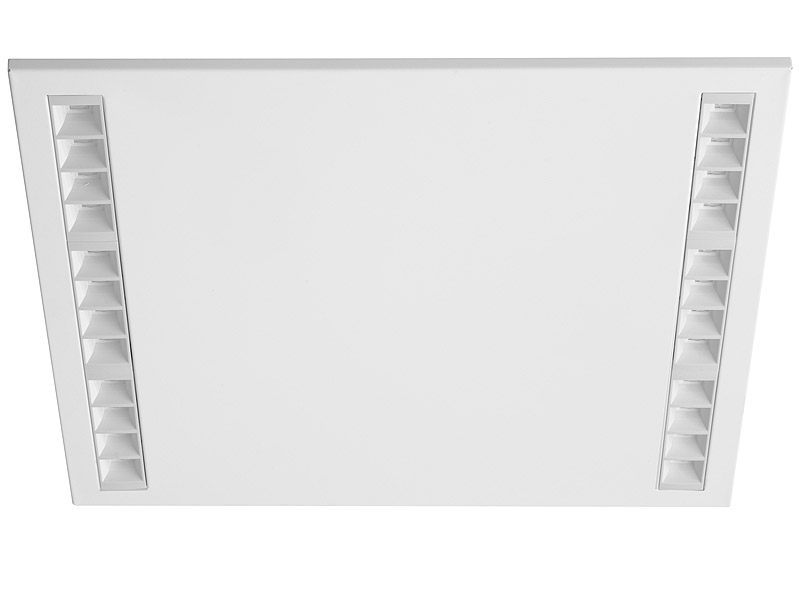

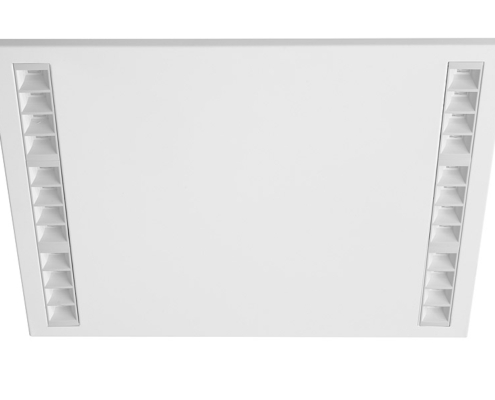

LS Low Glare Raster silber (UGR<19)
Prüfungen
Schutzart: IP20
Schutzklasse: I
Schlagschutz: IK02
Energieeffizienzklasse: C
Länderkennzeichnung: CE
Sicherheitskennzeichen: F
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkung
– weitere RAL Farben auf Anfrage
Zubehör
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P75Ma.3683.LB.D1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.D1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.D1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.D1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.S1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.S1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.S1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LB.S1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.D1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.D1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.D1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.D1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.S1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.S1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.S1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LS.S1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.D1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.D1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.D1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.D1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.S1B0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.S1R0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.S1S0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3683.LW.S1W0 | 4100 lm | 36 W | 3000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.D1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.D1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.D1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.D1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.S1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.S1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.S1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LB.S1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.D1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.D1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.D1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.D1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.S1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.S1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.S1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LS.S1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.D1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.D1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.D1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.D1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 296.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.S1B0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.S1R0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.S1S0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75Ma.3684.LW.S1W0 | 4320 lm | 36 W | 4000 K | IP20 | 310 x 1240 x 24 mm | - | - | 266.70 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.D1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.D1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.D1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.D1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.S1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.S1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.S1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LB.S1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.D1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.D1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.D1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.D1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.S1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.S1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.S1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LS.S1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.D1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.D1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.D1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.D1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.S1B0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.S1R0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.S1S0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3183.LW.S1W0 | 3544 lm | 31 W | 3000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.D1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.D1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.D1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.D1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.S1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.S1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.S1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LB.S1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.D1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.D1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.D1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.D1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.S1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.S1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.S1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LS.S1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.D1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.D1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.D1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.D1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 248.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.S1B0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.S1R0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.S1S0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
| P75a.3184.LW.S1W0 | 3730 lm | 31 W | 4000 K | IP20 | 620 x 620 x 24 mm | - | - | 218.50 € Euro | LDT anfordern | PDF Download |
- |
Bruttopreise exkl. Mehrwertsteuer
