Technische Daten
Leuchtkörper

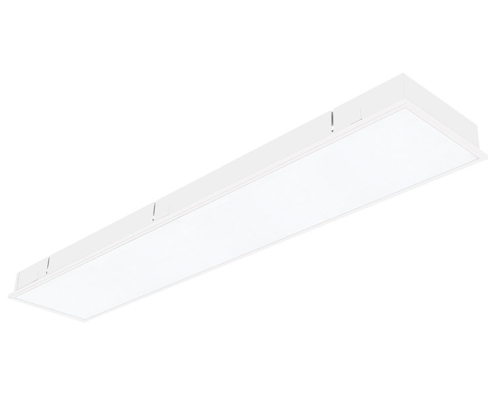

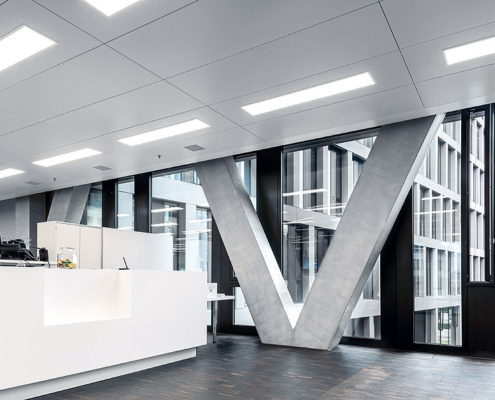

Montageart: Einbau- / Einlege-/ Deckenleuchte
Material: Stahlblech
Farbe: Weiß (RAL 9003)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -20°C bis +25°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI >80
Lebensdauer: 50.000h (L90 / B20)
Lichtverteilung: direkt strahlend
LED Binning: SDCM<3
Energieeffizienz: bis zu 140 lm/W
Optisches System

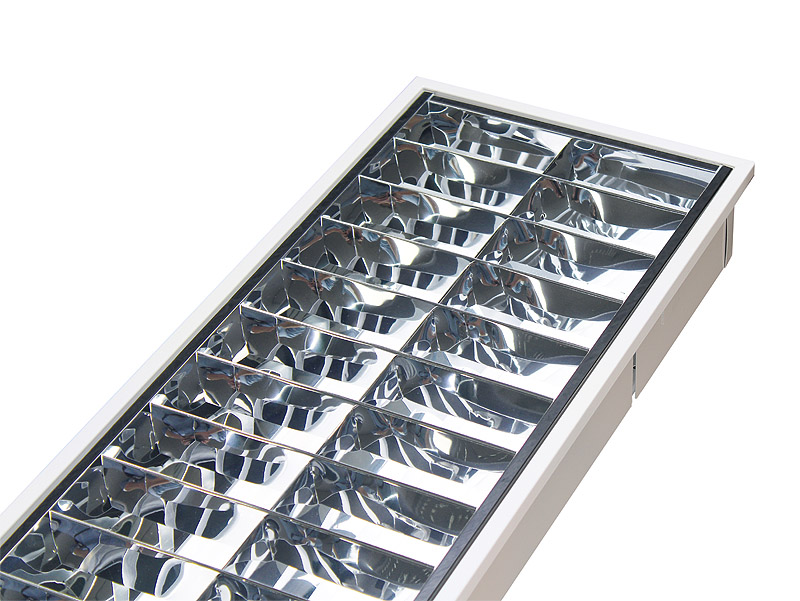

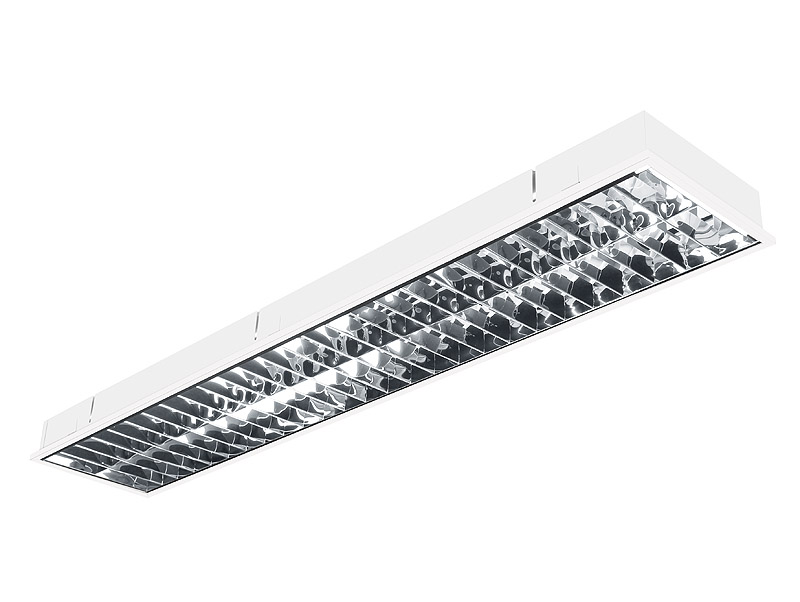

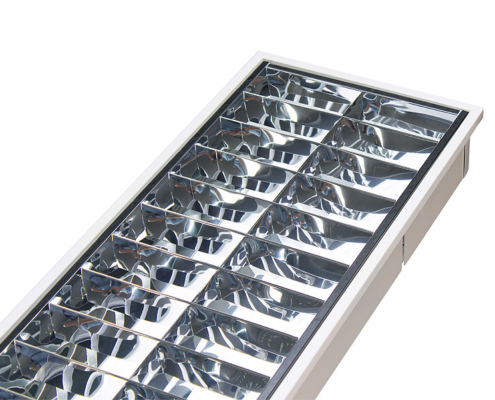

D Doppelbarabolraster
O opale Abdeckung
M mikroprismatische Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: I
Schlagschutz: IK02
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sicherheitskennzeichen:
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkungen
– alle angegebenen Lumenwerte gelten für die opale Variante
– Mikroprismatik und Doppelparabolraster können um bis zu +/- 15% abweichen
Optional
– Lichtfarbe: andere Lichtfarben auf Anfrage, Tunable White
– Notlicht: 1h-/3h Notlichtbaustein
Zubehör
Downloads

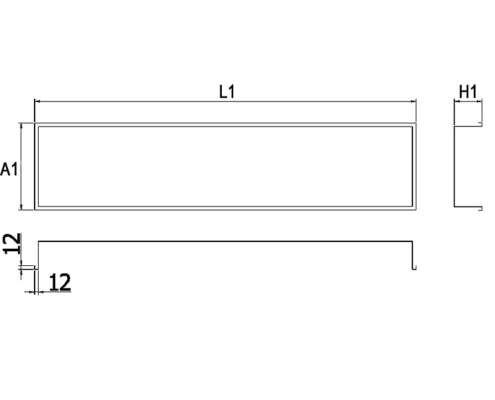

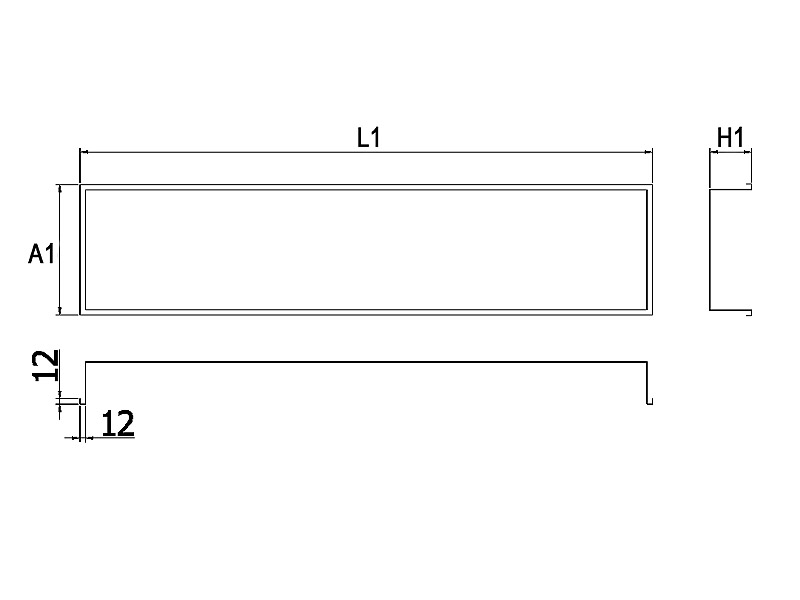

| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EB10Ma.1584.M.D1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.M.D1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 299.00 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.D.S1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 358.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1584.D.D1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 262.00 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.O.D1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.M.S1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 367.90 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.O.D1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 370.20 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.D.S1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 287.70 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.D.S1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 358.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.O.D1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 397.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.M.S1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 269.00 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.M.D1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.D.D1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 388.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.M.D1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 299.00 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.O.S1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 367.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1584.O.D1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.O.S1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.D.D1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 280.40 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.D.D1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 7 kg | 280.40 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.M.D1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 370.20 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.O.D1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.O.D1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 370.20 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.M.S1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 367.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.D.S1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 287.70 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.D.D1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 388.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.M.S1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3184.D.D1W0 | 4355 lm | 31 W | 4000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 317.70 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.O.S1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.O.S1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.M.S1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 340.20 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.M.D1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 370.20 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.O.D1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 283.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.O.S1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 340.20 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.M.D1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 397.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.D.D1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 262.00 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3283.D.S1W0 | 4019 lm | 32 W | 3000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 250.40 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.O.D1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 397.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1584.M.S1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.M.S1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 340.20 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1583.D.S1W0 | 1948 lm | 15 W | 3000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 232.00 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1584.O.S1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 253.80 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.O.S1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 340.20 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.D.D1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 317.70 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.1584.D.S1W0 | 2050 lm | 15 W | 4000 K | IP40 | 1248 x 185 x 85 mm | - | 4 kg | 232.00 € Euro | LDT anfordern | PDF Download | - |
| EB10La.3284.D.S1W0 | 4230 lm | 32 W | 4000 K | IP40 | 1532 x 185 x 85 mm | - | 6 kg | 250.40 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5384.M.D1W0 | 6590 lm | 53 W | 4000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 397.90 € Euro | LDT anfordern | PDF Download | - |
| EB10Ma.3183.M.S1W0 | 4137 lm | 31 W | 3000 K | IP40 | 1248 x 285 x 85 mm | - | 6.5 kg | 269.00 € Euro | LDT anfordern | PDF Download | - |
| EB10La.5383.O.S1W0 | 6261 lm | 53 W | 3000 K | IP40 | 1532 x 285 x 85 mm | - | 7 kg | 367.90 € Euro | LDT anfordern | PDF Download | - |
Bruttopreise exkl. Mehrwertsteuer
