Bauform FL16
(vormals Bauform 7116)

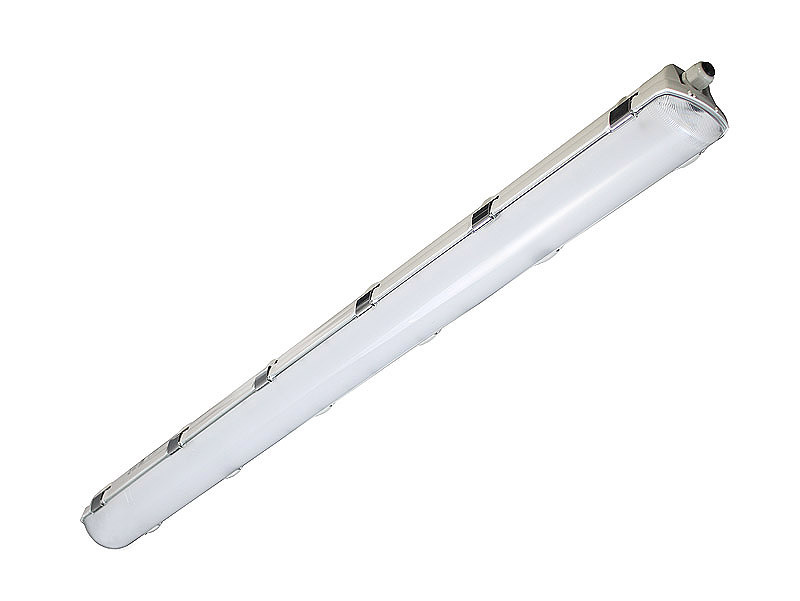

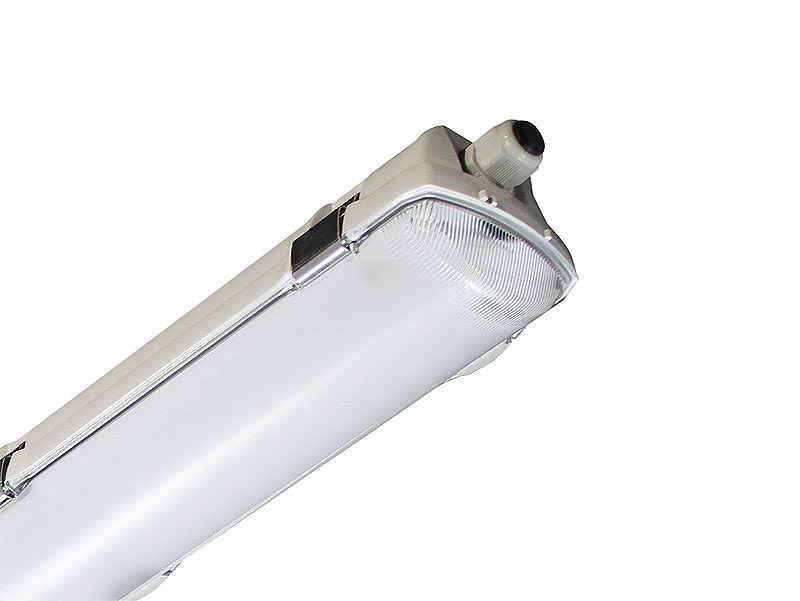

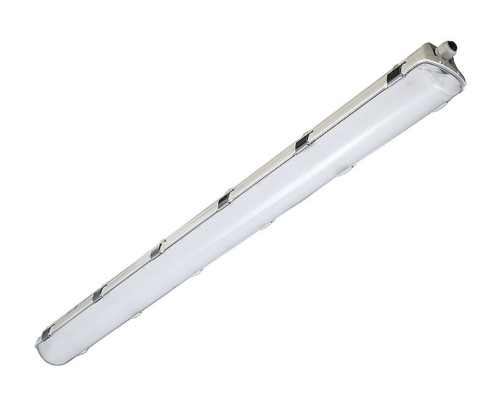

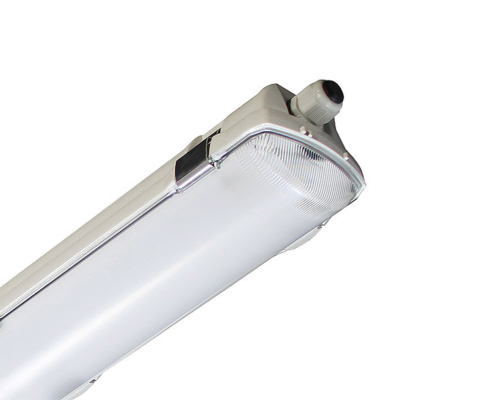

Feuchtraumwannenleuchte mit Abdeckung in Nano-Optic.
Hocheffiziente Feuchtraumwannenleuchte mit bis zu 165 lm/W. Durch die transparente Abdeckung in Nanostruktur können unterschiedlichste Ausstrahlwinkel erzeugt werden. Die hohe Schutzart (IP66/IP69), die extreme Schlagfestigkeit (IK10) und die lange Lebensdauer 50.000 Std. L90 B10 ermöglichen eine Vielzahl von Einsatzgebieten.
Sensorsysteme, erhöhe CRI Werte, unterschiedliche Lichtfarben oder Notlichtbausteine sind optional erhältlich.
Die Leuchten dieser Bauform sind sowohl DLG anerkannt als auch HACCP zertifiziert.
Technische Daten
Leuchtkörper
Montageart: Aufbau-/Pendelleuchte
Material: Polycarbonat
Farbe: Grau (RAL 7035) | Grau (RAL 7001)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar | DALI oder mit Korridor-Funktion
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -25°C bis +50°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000h (L90 / B10)

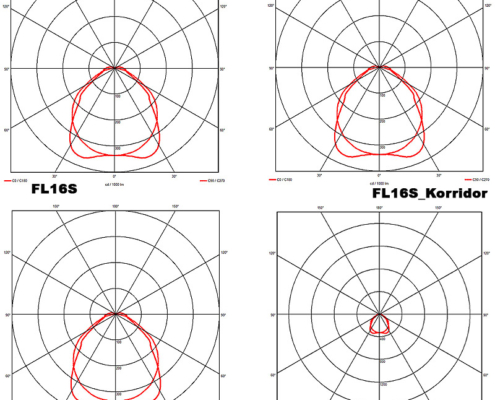

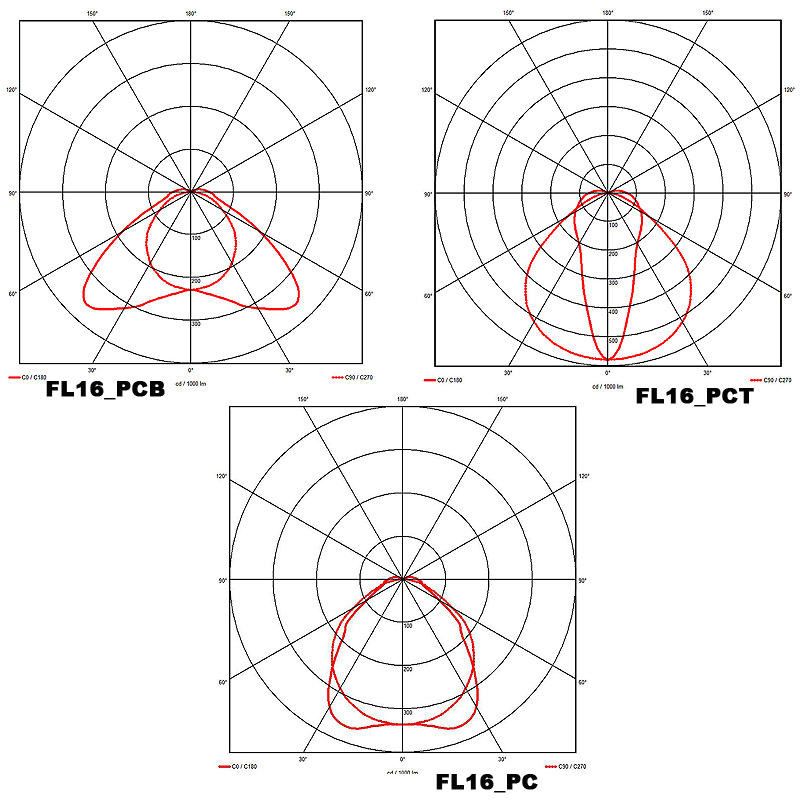

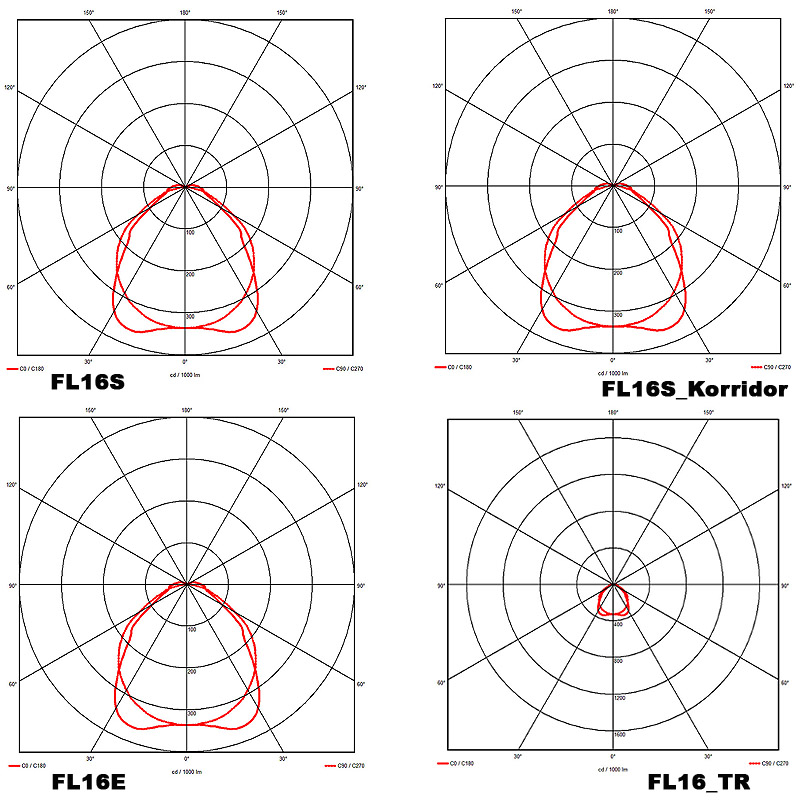

Lichtverteilung: direkt strahlend
Blendungsbegrenzung: UGR<22
LED Binning: SDCM<3
Energieeffizienz: bis zu 165 lm/W

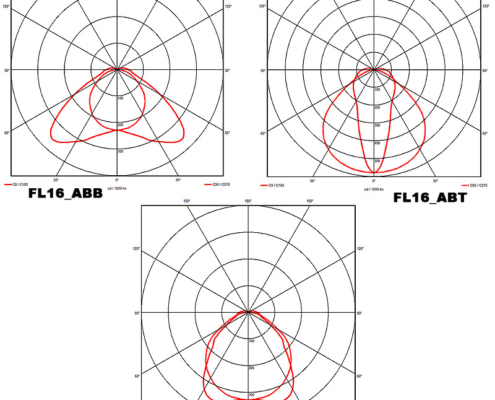

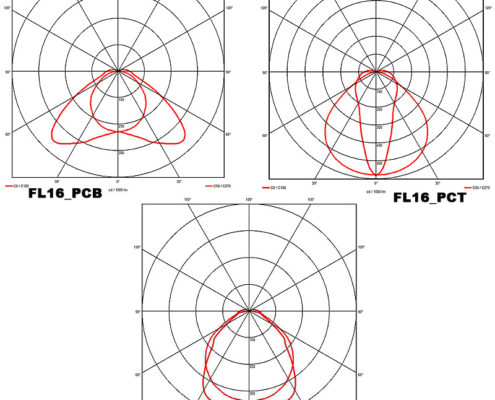

Optisches System
PC Polycarbonat
PCT Polycarbonat tiefstrahlend
PCB Polycarbonat breitstrahlend
PCO Polycarbonat Opal
AB ABS-Kunststoff
ABT ABS-Kunststoff tiefstrahlend
ABB ABS-Kunststoff breitstrahlend
ABO ABS-Kunststoff Opal

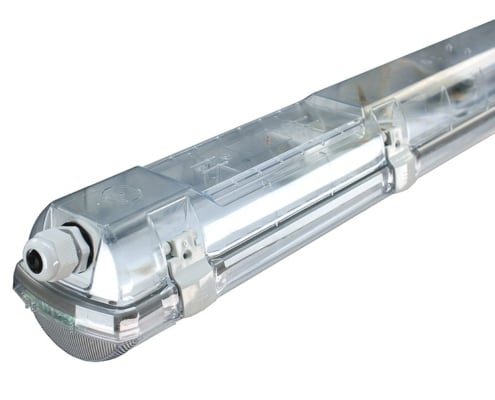

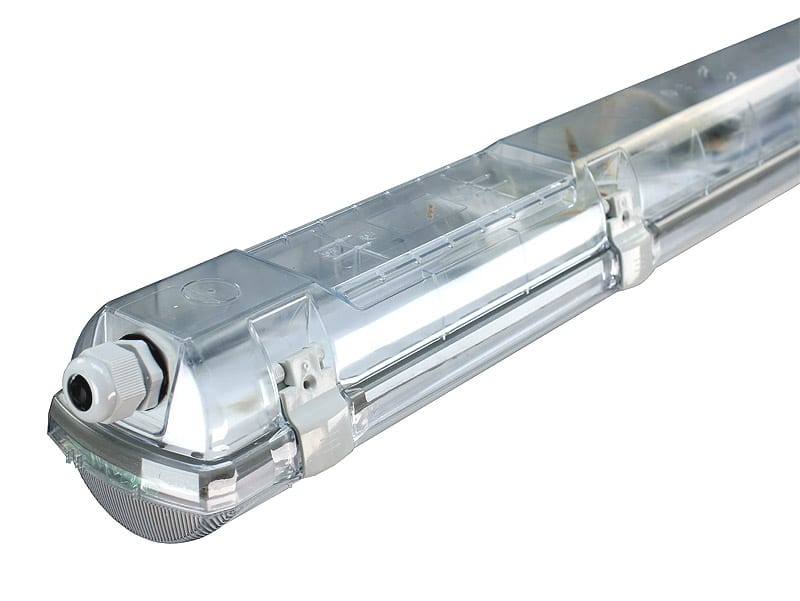

TR Transparent
Prüfungen
Schutzart: IP66 | IP69
Schutzklasse: I
Schlagschutz: IK06 (ABS) | IK10 (PC)
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sicherheitskennzeichen: F
Sonstige Kennzeichen: WEEE-Zeichen
Besondere Kennzeichnungen: ABS ist mit DLG (Ammoniakbeständigkeit, Reinigungsabstand) ausgezeichnet
Garantie: 5 Jahre
Downloads
Zubehör

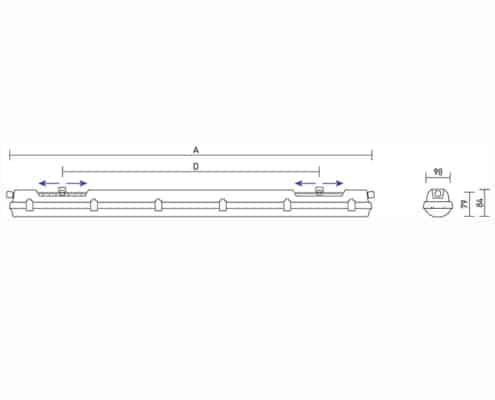

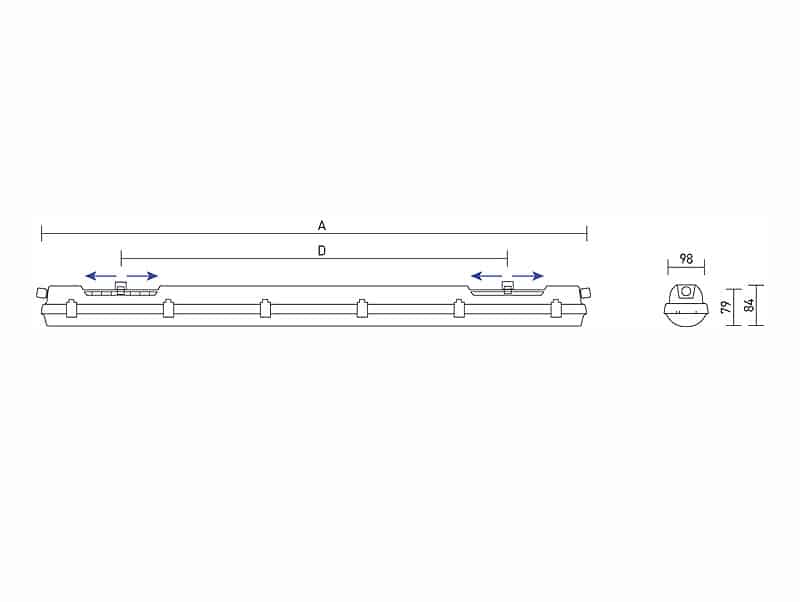

| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FL16La.3284.PCB.S0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 95.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.1084.AB.S0G9 | 1397 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 62.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2384.AB.D0G9 | 3439 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 120.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.ABB.S0G9 | 5463 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 90.30 Euro | LDT Download | PDF Download | PDF Download |
| FL16SMa.3284.PC.H0G9 | 5180 lm | 32 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 125.10 Euro | LDT Download | PDF Download | - |
| FL16Ma.1684.ABO.S0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 68.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.3284.TR.S0T9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 106.80 Euro | LDT anfordern | PDF Download | - |
| FL16EMa.1984.PC.D0G9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 186.80 Euro | LDT anfordern | PDF Download | - |
| FL16SMa.2384.PC.H0G9 | 3610 lm | 23 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 123.20 Euro | LDT Download | PDF Download | - |
| FL16La.3284.PCB.D0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 125.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.PC.D0G9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 119.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.PC.D0G9 | 5750 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 113.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.884.AB.S0G9 | 1169 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 62.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.3284.PC.D0G9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 121.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.PCB.D0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 119.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SLa.1884.PC.H0G9 | 2800 lm | 18 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 131.90 Euro | LDT Download | PDF Download | - |
| FL16Sa.1384.ABO.D0G9 | 1990 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 88.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SMa.2384.PC.K0G9 | 3610 lm | 23 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 153.20 Euro | LDT anfordern | PDF Download | - |
| FL16TMa.1984.TR.D0T9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 121.60 Euro | LDT anfordern | PDF Download | - |
| FL16Sa.1084.PC.S0G9 | 1470 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 61.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1684.PCB.D0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 114.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.AB.D0G9 | 5463 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 114.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.PC.S0G9 | 3050 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 89.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.884.AB.D0G9 | 1169 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 92.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.AB.S0G9 | 4769 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 92.50 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2084.PCB.S0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 93.70 Euro | LDT Download | PDF Download | PDF Download |
| FL16SLa.2984.PC.K0G9 | 4590 lm | 29 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 163.40 Euro | LDT anfordern | PDF Download | - |
| FL16Sa.884.ABO.D0G9 | 1220 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 87.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SLa.4184.PC.K0G9 | 6730 lm | 41 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 167.30 Euro | LDT anfordern | PDF Download | - |
| FL16TLa.2384.TR.S0T9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 104.80 Euro | LDT anfordern | PDF Download | - |
| FL16Sa.1384.AB.S0G9 | 1910 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 63.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16TMa.1684.TR.S0T9 | 2010 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 91.60 Euro | LDT Download | PDF Download | - |
| FL16La.2384.ABO.S0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 76.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.PCT.S0G9 | 5570 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 89.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1684.PC.D0G9 | 2440 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 108.70 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.AB.D0G9 | 4769 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 122.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.ABB.S0G9 | 2860 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 95.40 Euro | LDT Download | PDF Download | PDF Download |
| FL16SLa.4184.PC.H0G9 | 6730 lm | 41 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 137.30 Euro | LDT Download | PDF Download | - |
| FL16Sa.1084.ABO.D0G9 | 1450 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 87.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.ABO.S0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 72.90 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16ELa.2384.PC.D0G9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 181.80 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.2684.ABO.S0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 70.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SMa.3284.PC.K0G9 | 5180 lm | 32 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 155.10 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.2684.AB.S0G9 | 3838 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 81.90 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.1084.AB.D0G9 | 1397 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 92.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.AB.S0G9 | 2318 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 80.10 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.AB.D0G9 | 6945 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 127.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.PCB.D0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 123.70 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.884.PCO.S0G9 | 1220 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 56.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.1384.ABO.S0G9 | 1990 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 58.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.ABO.S0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 76.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.4484.TR.S0T9 | 7310 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 111.60 Euro | LDT anfordern | PDF Download | - |
| FL16EMa.1984.PC.S0G9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 156.80 Euro | LDT Download | PDF Download | - |
| FL16La.4484.ABT.D0G9 | 6770 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 131.90 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.ABB.D0G9 | 2736 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 116.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.4484.PCB.D0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 130.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.AB.S0G9 | 3439 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 90.80 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.2684.PCT.S0G9 | 3910 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 86.40 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2384.ABB.D0G9 | 3401 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 125.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.1084.PCO.S0G9 | 1450 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 56.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.ABO.D0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 98.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.AB.D0G9 | 2318 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 110.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SMa.1784.PC.K0G9 | 2620 lm | 17 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 152.10 Euro | LDT anfordern | PDF Download | - |
| FL16La.2384.PC.S0G9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 89.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1984.PCO.S0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 67.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.PCT.D0G9 | 3910 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 116.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.3284.TR.D0T9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 136.80 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.1984.PC.D0G9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 108.70 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.ABT.S0G9 | 3740 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 87.80 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.3284.ABB.S0G9 | 4722 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 97.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.1084.PCO.D0G9 | 1450 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 86.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.ABO.D0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 98.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TSa.1084.TR.D0T9 | 1500 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 98.90 Euro | LDT anfordern | PDF Download | - |
| FL16SLa.2184.PC.H0G9 | 3330 lm | 21 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 131.90 Euro | LDT Download | PDF Download | - |
| FL16La.3284.ABB.D0G9 | 4722 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 127.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.PCO.D0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 97.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.1384.PCO.S0G9 | 1990 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 57.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SMa.1484.PC.K0G9 | 2200 lm | 14 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 152.10 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.2684.PCB.D0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 116.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.PC.S0G9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 78.70 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.3684.ABT.D0G9 | 5320 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 120.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.4484.PCB.S0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 100.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.1384.PCO.D0G9 | 1990 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 87.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.ABO.D0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 102.90 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16EMa.2684.PC.D0G9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 186.80 Euro | LDT anfordern | PDF Download | - |
| FL16SLa.1884.PC.K0G9 | 2800 lm | 18 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 161.90 Euro | LDT anfordern | PDF Download | - |
| FL16Sa.1084.ABO.S0G9 | 1450 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 57.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.PCO.S0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 67.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TMa.1984.TR.S0T9 | 2910 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 91.60 Euro | LDT Download | PDF Download | - |
| FL16TSa.1084.TR.S0T9 | 1500 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 68.90 Euro | LDT Download | PDF Download | - |
| FL16La.4484.ABT.S0G9 | 6770 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 101.90 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.2684.AB.D0G9 | 3838 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 111.90 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.4484.PCT.S0G9 | 7080 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 100.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.ABB.S0G9 | 6878 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 101.90 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.2684.PCO.S0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 69.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.ABO.D0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 106.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.2084.TR.S0T9 | 3050 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 104.80 Euro | LDT anfordern | PDF Download | - |
| FL16SLa.2984.PC.H0G9 | 4590 lm | 29 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 133.40 Euro | LDT anfordern | PDF Download | - |
| FL16Sa.884.PC.D0G9 | 1230 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 91.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.PCO.S0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 75.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.ABO.S0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 68.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SMa.1484.PC.H0G9 | 2200 lm | 14 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 122.10 Euro | LDT Download | PDF Download | - |
| FL16La.2384.ABB.S0G9 | 3401 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 95.40 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1984.AB.S0G9 | 2765 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 80.10 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.3284.ABT.D0G9 | 4650 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 127.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TSa.884.TR.S0T9 | 1350 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 68.90 Euro | LDT Download | PDF Download | - |
| FL16Ma.1984.PCO.D0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 97.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.4484.PC.S0G9 | 7310 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 95.50 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2084.PC.D0G9 | 3050 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 119.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16SLa.2184.PC.K0G9 | 3330 lm | 21 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 161.90 Euro | LDT anfordern | PDF Download | - |
| FL16La.4484.AB.S0G9 | 6945 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 97.10 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.2684.ABT.D0G9 | 3740 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 117.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.ABO.D0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 106.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.884.PCO.D0G9 | 1220 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 86.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.1384.AB.D0G9 | 1910 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 93.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.AB.D0G9 | 2765 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 110.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.PCB.S0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 84.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16TMa.1684.TR.D0T9 | 2010 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 121.60 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.2684.PCO.D0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 99.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.ABT.S0G9 | 4650 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 97.20 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.884.PC.S0G9 | 1230 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 61.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.3684.PCO.S0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 71.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.PCT.D0G9 | 4860 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 125.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.PC.S0G9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 91.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16SMa.1784.PC.H0G9 | 2620 lm | 17 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 122.10 Euro | LDT Download | PDF Download | - |
| FL16EMa.2684.PC.S0G9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 156.80 Euro | LDT Download | PDF Download | - |
| FL16Ma.2684.ABO.D0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 100.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.PC.S0G9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 80.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1684.ABB.D0G9 | 2299 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 116.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TMa.2684.TR.D0T9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 123.50 Euro | LDT anfordern | PDF Download | - |
| FL16La.2084.PCO.D0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 105.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.4484.PCT.D0G9 | 7080 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 130.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.PC.S0G9 | 5750 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 83.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.3284.PCO.S0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 77.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.PCO.D0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 105.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.PCB.S0G9 | 2420 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 84.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.ABO.S0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 83.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.PCB.S0G9 | 4000 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 86.40 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.ABB.D0G9 | 6878 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 131.90 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.PC.D0G9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 110.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1984.ABB.S0G9 | 2736 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 86.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16TMa.3684.TR.S0T9 | 5750 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 96.30 Euro | LDT Download | PDF Download | - |
| FL16La.2084.PCO.S0G9 | 3010 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 75.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.1684.ABB.S0G9 | 2299 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 86.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.2684.ABB.S0G9 | 3800 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 87.80 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.PCO.S0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 82.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.ABB.D0G9 | 2860 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 125.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TMa.2684.TR.S0T9 | 4040 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 93.50 Euro | LDT Download | PDF Download | - |
| FL16La.4484.ABO.D0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 113.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.ABT.S0G9 | 5320 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 90.30 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.1384.PC.D0G9 | 2010 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 92.40 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.AB.S0G9 | 5463 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 84.50 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.1984.PCB.D0G9 | 2880 lm | 19 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 114.60 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TMa.3684.TR.D0T9 | 5750 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 126.30 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.3684.PCO.D0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 101.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2384.PCB.S0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 93.70 Euro | LDT Download | PDF Download | PDF Download |
| FL16Ma.3684.PCB.S0G9 | 5690 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 89.00 Euro | LDT Download | PDF Download | PDF Download |
| FL16Sa.884.ABO.S0G9 | 1220 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 57.10 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.2084.AB.S0G9 | 2898 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 90.80 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.4484.PC.D0G9 | 7310 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 125.50 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16ELa.3284.PC.D0G9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 181.80 Euro | LDT anfordern | PDF Download | - |
| FL16TSa.1284.TR.D0T9 | 2070 lm | 12 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 100.00 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.3684.PCT.D0G9 | 5570 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 119.00 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.2684.ABB.D0G9 | 3800 lm | 26 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 117.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.2084.TR.D0T9 | 3050 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 134.80 Euro | LDT anfordern | PDF Download | - |
| FL16La.3284.PCO.D0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 107.20 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.4484.TR.D0T9 | 7310 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 141.60 Euro | LDT anfordern | PDF Download | - |
| FL16TSa.884.TR.D0T9 | 1350 lm | 8 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 98.90 Euro | LDT anfordern | PDF Download | - |
| FL16La.3284.ABO.S0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 78.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.PCT.S0G9 | 4860 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 95.60 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2384.PCB.D0G9 | 3580 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 123.70 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16La.3284.ABO.D0G9 | 4970 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 108.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Sa.1384.PC.S0G9 | 2010 lm | 13 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 62.40 Euro | LDT Download | PDF Download | PDF Download |
| FL16La.2084.AB.D0G9 | 2898 lm | 20 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 120.80 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16Ma.3684.ABB.D0G9 | 5463 lm | 36 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 120.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16ELa.2384.PC.S0G9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 151.80 Euro | LDT Download | PDF Download | - |
| FL16La.4484.PCO.D0G9 | 7240 lm | 44 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 112.30 Euro | LDT anfordern | PDF Download | PDF Download |
| FL16TLa.2384.TR.D0T9 | 3620 lm | 23 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 134.80 Euro | LDT anfordern | PDF Download | - |
| FL16TSa.1284.TR.S0T9 | 2070 lm | 12 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 70.00 Euro | LDT anfordern | PDF Download | - |
| FL16Ma.1684.PC.S0G9 | 2440 lm | 16 W | 4000 K | IP66/IP69 | 1175 x 98 x 79 mm | - | 1.7 kg | 78.70 Euro | LDT Download | PDF Download | PDF Download |
| FL16ELa.3284.PC.S0G9 | 5020 lm | 32 W | 4000 K | IP66/IP69 | 1455 x 98 x 79 mm | - | 2 kg | 151.80 Euro | LDT Download | PDF Download | - |
| FL16Sa.1084.PC.D0G9 | 1470 lm | 10 W | 4000 K | IP66/IP69 | 615 x 98 x 79 mm | - | 0.9 kg | 91.60 Euro | LDT anfordern | PDF Download | PDF Download |
Bruttopreise exkl. Mehrwertsteuer
