7286b

Bauform 7286b

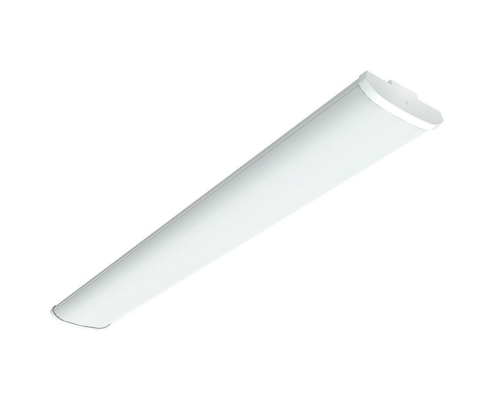

LED Industrieleuchte in einem schlichten Design.

Opale Abdeckung aus einem schlagzähen Polycarbonat (IK06). Endkappen aus weißem ABS. Geräteträgerplatte aus weißem Stahlblech.

Mit Lumenwerten bis zu 8600 lm netto, einem Wirkungsgrad von knapp 130 lm/W und der Schutzart IP54 finden diese Leuchten überall dort ihren Einsatz, wo eine effiziente LED Beleuchtung mit guten Lichtwerten und einer hohen Schutzart benötigt wird.

Technische Daten

Leuchtkörper
Montageart:Aufbau-/Pendelmontage
Material: Stahlblech
Farbe:Weiß (RAL 9003)/ andere Farben auf Anfrage

Elektrotechnik
Betriebsgerät: LED Betriebsgerät
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -20,00 bis + 35,00°C

Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000 h (L80 B10)

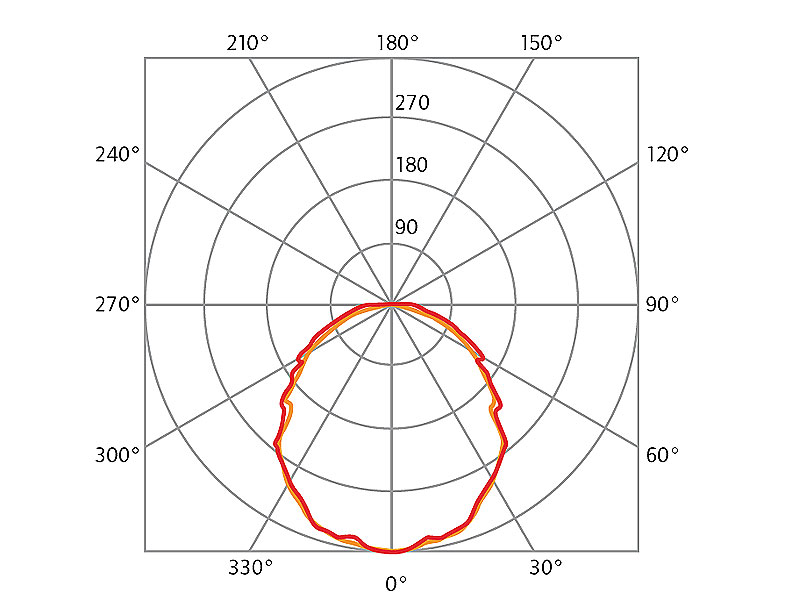

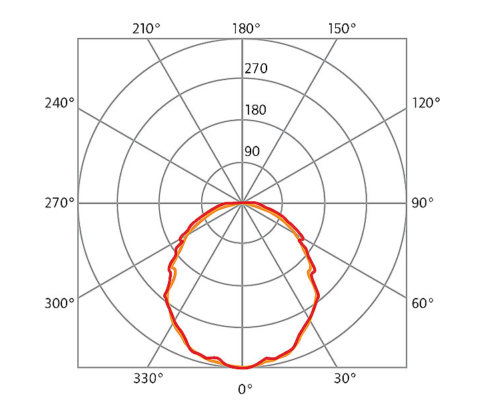

Lichtverteilung: direkt strahlend
Ausstrahlwinkel: 120°
Länge 1172mm von 24 bis 52 Watt variabel einstellbar
Länge 1452 mm von 30 bis 67 Watt variabel einstellbar

Optisches System

PC Polycarbonat Abdeckung

Prüfungen
Schutzart: IP54
Schlagschutz: IK06
Schutzklasse: I
Energieeffizienzklasse: A++ A+ A
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen

Zubehör
Downloads





Art.-Nr. Lichtstrom Leistung Farbtemp. IP Maße DA Ø Gewicht Bruttopreis LDT Datenblatt LV-Text
7286b.2030.PC.80 2300 lm 20 W 3000 K IP54 612 x 173 x 54 mm - 2.00 kg 83.50 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2030.PC.80d 2300 lm 20 W 3000 K IP54 612 x 173 x 54 mm - 2.00 kg 133.20 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2040.PC.80 2500 lm 20 W 4000 K IP54 612 x 173 x 54 mm - 2.00 kg 83.50 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2040.PC.80d 2500 lm 20 W 4000 K IP54 612 x 173 x 54 mm - 2.00 kg 133.20 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2730.PC.80 3100 lm 27 W 3000 K IP54 612 x 173 x 54 mm - 2.00 kg 83.50 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2730.PC.80d 3100 lm 27 W 3000 K IP54 612 x 173 x 54 mm - 2.00 kg 133.20 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2740.PC.80 3300 lm 27 W 4000 K IP54 612 x 173 x 54 mm - 2.00 kg 83.50 Euro LDT
Download
PDF
Download
PDF
Download
7286b.2740.PC.80d 3300 lm 27 W 4000 K IP54 612 x 173 x 54 mm - 2.00 kg 133.20 Euro LDT
Download
PDF
Download
PDF
Download
7286b.3630.PC.80 4600 lm 36 W 3000 K IP54 1172 x 173 x 54 mm - 2.50 kg 122.10 Euro LDT
Download
PDF
Download
PDF
Download
7286b.3630.PC.80d 4600 lm 36 W 3000 K IP54 1172 x 173 x 54 mm - 2.50 kg 171.80 Euro LDT
Download
PDF
Download
PDF
Download
7286b.3640.PC.80 4900 lm 36 W 4000 K IP54 1172 x 173 x 54 mm - 2.50 kg 122.10 Euro LDT
Download
PDF
Download
PDF
Download
7286b.3640.PC.80d 4900 lm 36 W 4000 K IP54 1172 x 173 x 54 mm - 2.50 kg 171.80 Euro LDT
Download
PDF
Download
PDF
Download
7286b.4530.PC.80 5900 lm 45 W 3000 K IP54 1452 x 173 x 54 mm - 3.60 kg 152.60 Euro LDT
Download
PDF
Download
PDF
Download
7286b.4530.PC.80d 5900 lm 45 W 3000 K IP54 1452 x 173 x 54 mm - 3.60 kg 202.30 Euro LDT
Download
PDF
Download
PDF
Download
7286b.4540.PC.80 6300 lm 45 W 4000 K IP54 1452 x 173 x 54 mm - 3.60 kg 152.60 Euro LDT
Download
PDF
Download
PDF
Download
7286b.4540.PC.80d 6300 lm 45 W 4000 K IP54 1452 x 173 x 54 mm - 3.60 kg 202.30 Euro LDT
Download
PDF
Download
PDF
Download
7286b.5230.PC.80 6400 lm 52 W 3000 K IP54 1172 x 173 x 54 mm - 2.50 kg 122.10 Euro LDT
Download
PDF
Download
PDF
Download
7286b.5230.PC.80d 6400 lm 52 W 3000 K IP54 1172 x 173 x 54 mm - 2.50 kg 171.80 Euro LDT
Download
PDF
Download
PDF
Download
7286b.5240.PC.80 6700 lm 52 W 4000 K IP54 1172 x 173 x 54 mm - 2.50 kg 122.10 Euro LDT
Download
PDF
Download
PDF
Download
7286b.5240.PC.80d 6700 lm 52 W 4000 K IP54 1172 x 173 x 54 mm - 2.50 kg 171.80 Euro LDT
Download
PDF
Download
PDF
Download
7286b.6730.PC.80 8000 lm 67 W 3000 K IP54 1452 x 173 x 54 mm - 3.60 kg 152.60 Euro LDT
Download
PDF
Download
PDF
Download
7286b.6730.PC.80d 8000 lm 67 W 3000 K IP54 1452 x 173 x 54 mm - 3.60 kg 202.30 Euro LDT
Download
PDF
Download
PDF
Download
7286b.6740.PC.80 8600 lm 67 W 4000 K IP54 1452 x 173 x 54 mm - 3.60 kg 152.60 Euro LDT
Download
PDF
Download
PDF
Download
7286b.6740.PC.80d 8600 lm 67 W 4000 K IP54 1452 x 173 x 54 mm - 3.60 kg 202.30 Euro LDT
Download
PDF
Download
PDF
Download
Bruttopreise exkl. Mehrwertsteuer
