Bauform AB21a
(vormals Bauform 6020b-6023b)

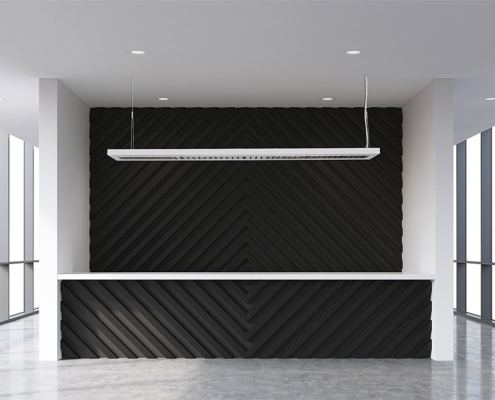

Universal Aufbau-, Pendel-, oder Einlegeleuchte.

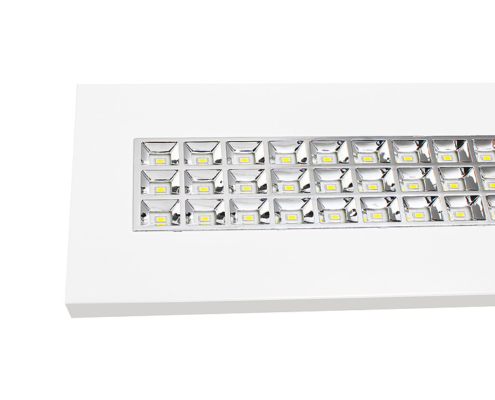

Die LED Leuchten der Familie AB21 bestechen durch ihre flache Aufbauform (30 mm) und die moderne Mikro-Raster-Optik, welche ein angenehmes und blendfreies Licht erzeugt.
Die Deckenbefestigung erfolgt über eine Montageplatte. Neben den länglichen Varianten stehen auch drei quadratische Versionen zur Verfügung.
Das Gehäuse der Leuchten dieser Bauform besteht aus pulverbeschichtetem Stahlblech und wird standardmäßig in RAL 9003 (weiß) geliefert.
Technische Daten
Leuchtkörper
Montageart: Aufbau- | Pendelleuchte
Material: Stahlblech
Farbe: Weiß (RAL 9003) | Silbergrau
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -10 bis +40°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000h (L80 / B10)
Lichtverteilung: direkt strahlend
Blendungsbegrenzung: UGR<19 / UGR<16
LED Binning: SDCM <3
Energieeffizienz: bis zu 111 lm/W
Optisches System
LS Low Glare Raster silber
Prüfungen
Schutzart: IP20
Schutzklasse: I
Schlagschutz: IK02
Energieeffizienzklasse: C
Länderkennzeichnung: CE
Sicherheitskennzeichen: F
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkungen
Die Pendelvariante ist schon mit entsprechender Seilaufhängung, während die Anbauvariante mit entsprechender Anbauplatte geliefert wird.
Das Zubehör kann auch separat nachbestellt werden (s. Reiter Zubehör).
Zubehör

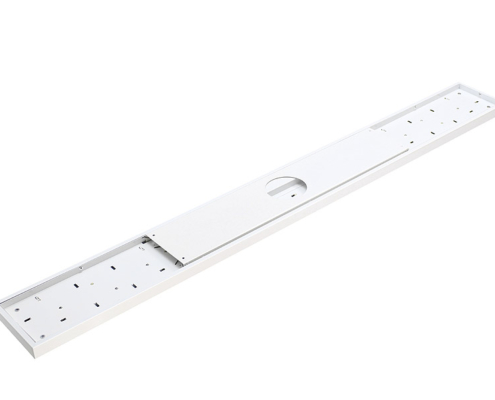

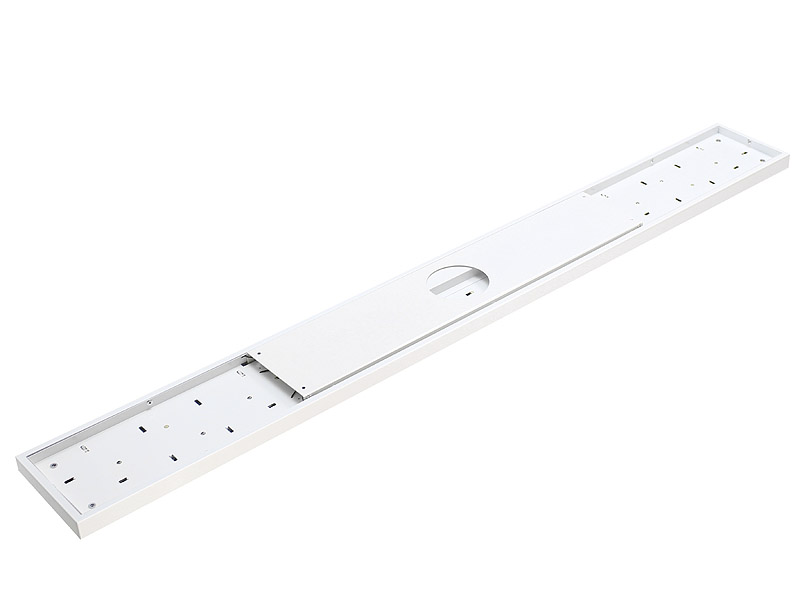

| AB21Ma.AB | argon Anbauplatte für Bauform AB21 | Stahlblech, für Leuchten mit 1245 mm Länge | 13,00 € |

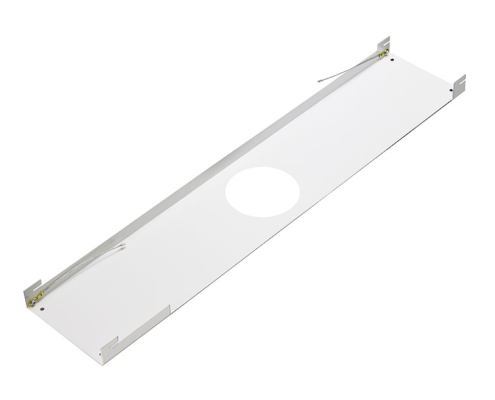

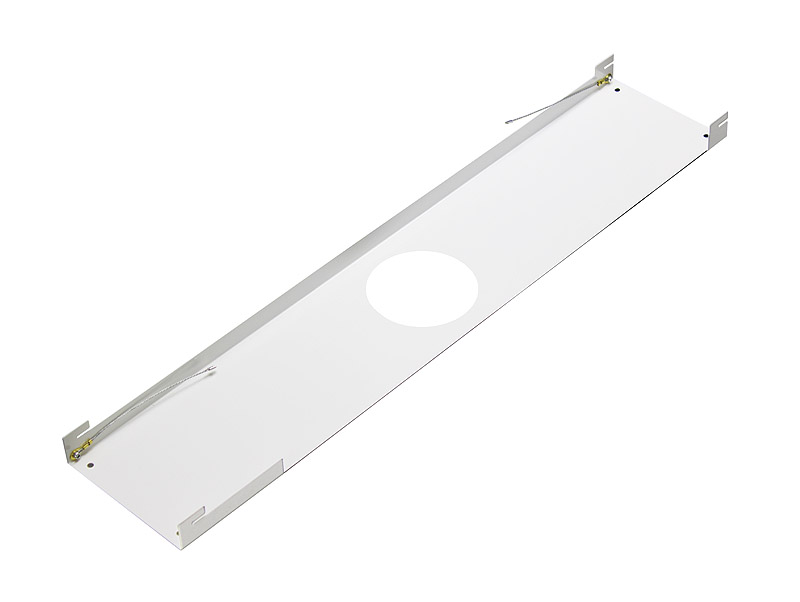

| AB21La.AB | argon Anbauplatte für Bauform AB21 | Stahlblech, für Leuchten mit 1545 mm Länge | 31,50 € |
| 6020b.SA | argon Seilaufhängung | Einzelseil mit Edelstahlbefestigung, Länge 1500 mm | auf Anfrage |
| 6020b.SA2 | argon Seilaufhängung | Y- Seilaufhängung mit Edelstahlbefestigung, Länge 1500 mm | auf Anfrage |
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AB21Ma.3683.LS.S4G0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 247.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.S0G0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 253.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.D0W0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 263.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.D0G0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 321.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.S4G0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | - | 239.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.D0G0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 274.90 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.D0G0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 283.00 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.D0G0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 191.70 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.S0W0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 233.80 € Euro | LDT Download | PDF Download | - |
| AB21La.4584.LS.D0G0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 321.00 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.D0G0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 191.70 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.S0G0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 244.90 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.D4G0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 277.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.S4W0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 233.10 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.D4W0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 266.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.D4W0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 299.40 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.S0G0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 161.70 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.D0G0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 274.90 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.S0G0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 291.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.D4G0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | - | 269.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.D4W0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 263.10 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.S4W0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 236.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.S4G0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 282.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.D0W0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 263.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.D0G0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 321.00 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.S4W0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 151.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.S4W0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 233.10 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.D0W0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 307.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.D4G0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 312.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.D4G0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 277.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.D4W0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 266.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.D4W0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 299.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.D4W0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 263.10 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.S4G0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 247.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.D4G0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 277.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.S4G0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 247.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.S4G0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 282.20 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.D0W0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 183.60 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.S4W0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 151.40 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.S0W0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 277.80 € Euro | LDT Download | PDF Download | - |
| AB21La.4583.LS.S4G0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 282.20 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.S4W0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 269.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.D4G0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | - | 269.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.S0G0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 253.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.D0W0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 263.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.S4W0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 269.40 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.D0W0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 307.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.S0W0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 240.40 € Euro | LDT Download | PDF Download | - |
| AB21La.3783.LS.S0G0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 291.00 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.D4G0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 312.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.S0W0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 233.80 € Euro | LDT Download | PDF Download | - |
| AB21La.3784.LS.S0G0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 291.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.S0W0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 233.80 € Euro | LDT Download | PDF Download | - |
| AB21XSa.1983.LS.D0W0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 183.60 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.S0W0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 153.60 € Euro | LDT Download | PDF Download | - |
| AB21La.4583.LS.D4G0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 312.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.D0W0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 263.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.D4W0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 299.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.S0W0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 233.80 € Euro | LDT Download | PDF Download | - |
| AB21XSa.1984.LS.S0W0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 153.60 € Euro | LDT Download | PDF Download | - |
| AB21XSa.1983.LS.D4W0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 181.40 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.D4G0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | - | 185.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.S4W0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 236.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.S4G0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 282.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.S4W0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 236.50 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.S0G0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 161.70 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.S4G0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 247.80 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3783.LS.S0W0 | 3920 lm | 37 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 277.80 € Euro | LDT Download | PDF Download | - |
| AB21Ma.3083.LS.D4W0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 266.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.D4G0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 312.20 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.S4W0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 269.40 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.D4W0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | 2.5 kg | 181.40 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1984.LS.S4G0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | - | 155.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.D0W0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 270.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.D0G0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 274.90 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.S0W0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 277.80 € Euro | LDT Download | PDF Download | - |
| AB21La.4584.LS.S4W0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 269.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.S4G0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | - | 239.00 € Euro | LDT anfordern | PDF Download | - |
| AB21La.3784.LS.D0G0 | 4125 lm | 37 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 321.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.S0W0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 240.40 € Euro | LDT Download | PDF Download | - |
| AB21Ma.3084.LS.S0G0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 244.90 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.S0G0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 291.00 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.D4W0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 299.40 € Euro | LDT anfordern | PDF Download | - |
| AB21XSa.1983.LS.S4G0 | 1900 lm | 19 W | 3000 K | IP20 | 330 x 318 x 30 mm | - | - | 155.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.D4G0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 277.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3084.LS.D0W0 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 270.40 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3084.LS.D0G0 | 3300 lm | 30 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 274.90 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4583.LS.D0W0 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 307.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3684.LS.D4W0 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 266.50 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3083.LS.S0G0 | 3140 lm | 30 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 244.90 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.D0W0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 307.80 € Euro | LDT anfordern | PDF Download | - |
| AB21Sa.3083.LS.D0G0 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.5 kg | 283.00 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.S4W0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 236.50 € Euro | LDT anfordern | PDF Download | - |
| AB21La.4584.LS.S0W0 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.5 kg | 277.80 € Euro | LDT Download | PDF Download | - |
| AB21XSa.1984.LS.D4G0 | 2000 lm | 19 W | 4000 K | IP20 | 330 x 318 x 30 mm | - | - | 185.20 € Euro | LDT anfordern | PDF Download | - |
| AB21Ma.3683.LS.S0G0 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.9 kg | 244.90 € Euro | LDT anfordern | PDF Download | - |
