Bauform AB10a
(vormals Bauform 2310l)

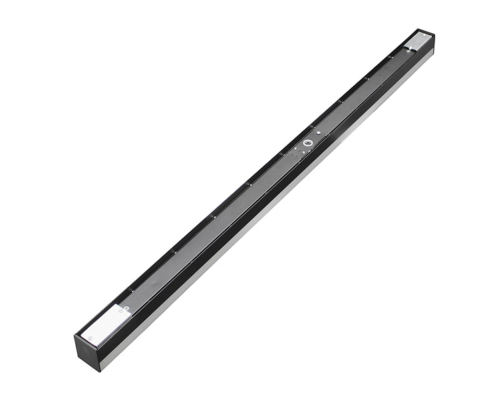

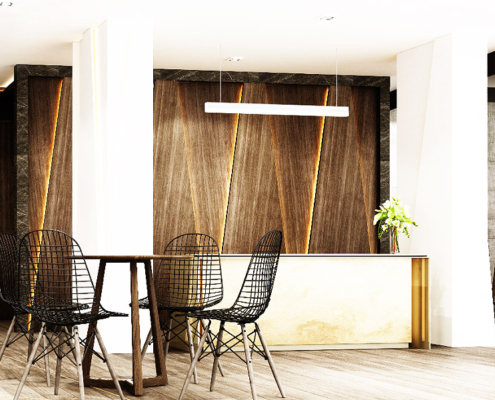

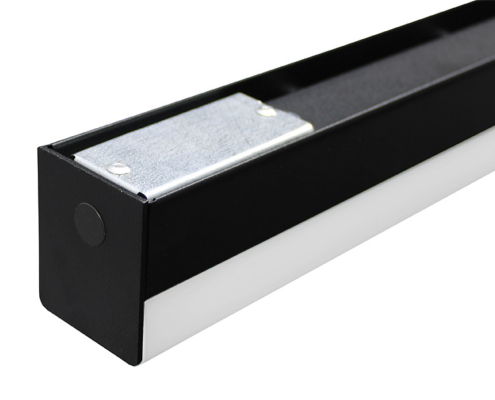

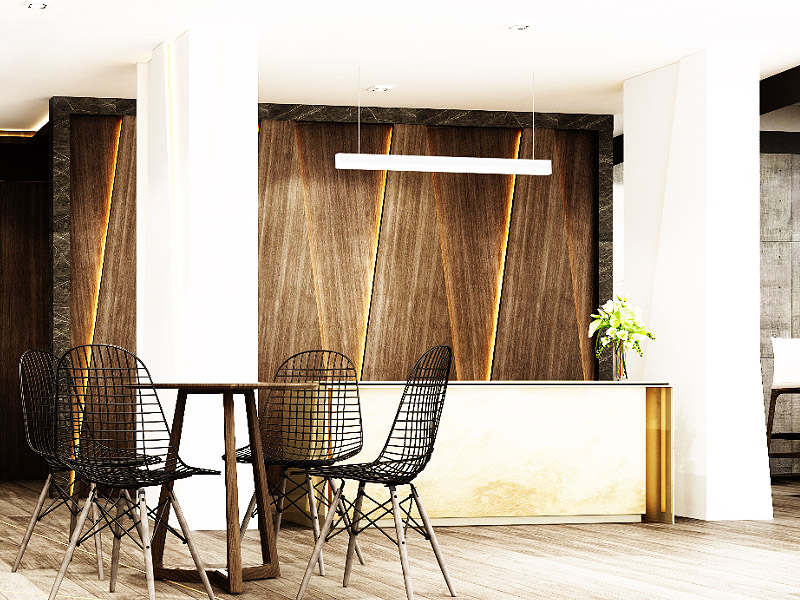

Profilleuchte aus Stahlblech mit einer opalen Abdeckung. Die Leuchten der Bauform AB10 können sowohl als Anbau- als auch als Pendelleuchte verwendet werden (Seilaufhängungen sind bei der Pendelvariante schon inklusive). Standardmäßig werden die Profile in schwarz, weiß und grau angeboten (andere Farben auf Anfrage).

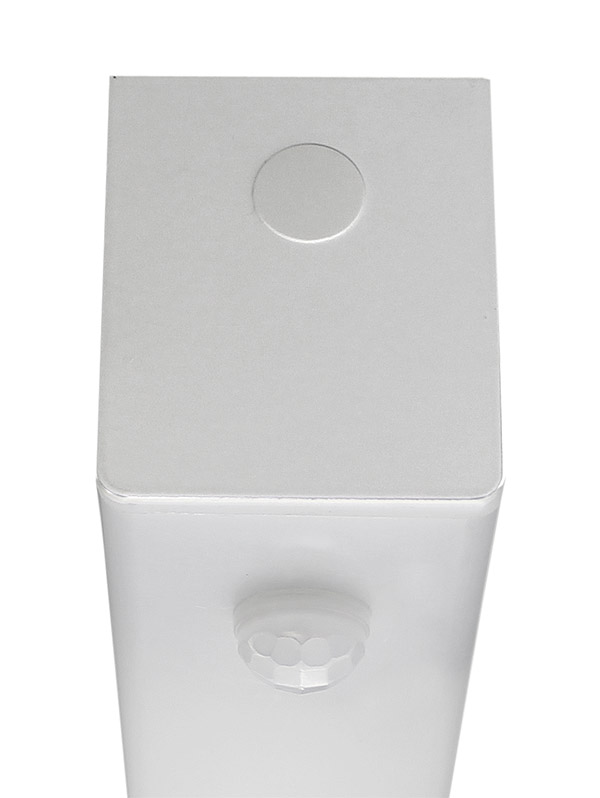

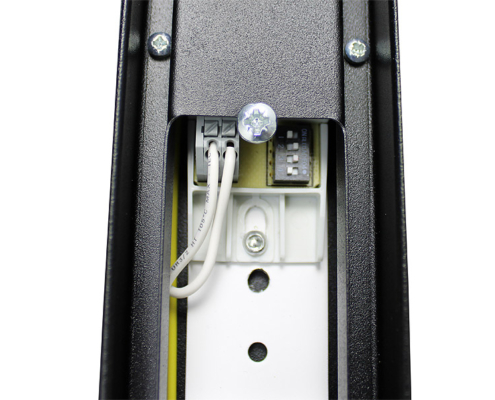

Die Form des Profils bietet vielfältige Möglichkeiten DALI oder Sensorsysteme in die Leuchten zu integrieren. Die Leuchte ist standardmäßig mit DIP-Schaltern ausgestattet, über die sich die Beleuchtungsstärke anpassen lässt.
Technische Daten
Leuchtkörper
Montageart: Aufbau- | Pendelleuchte
Material: Aluminium
Farbe: Weiß (RAL 9003) | Schwarz (RAL 9005)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät schaltbar oder DALI
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -10 bis +35°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 80.000h (L80 / B20)
Lichtverteilung: direkt strahlend
Ausstrahlwinkel: 90°
LED Binning: SDCM <3
Energieeffizienz: bis zu 131 lm/W
Optisches System
O opale Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: I
Schlagschutz: IK02
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen
Garantie: 5 Jahre
Bemerkungen
Die Pendelvariante ist schon mit entsprechender Seilaufhängung.
Zubehör
Downloads
| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AB10Sa.1883.O.D0S1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 122.30 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S0B1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 98.80 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S0W1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 102.70 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S0S1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 108.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S4B1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 126.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S4W1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 111.50 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S0W1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 102.70 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D0W1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 132.70 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D0S1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 138.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D0S1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 138.80 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S4S1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 116.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D4B1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 156.60 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S4W1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 121.90 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D4S1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 156.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S4S1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 126.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.D4W1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 141.50 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D0W1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 135.60 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D4W1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 151.90 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S4W1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 123.50 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S4S1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 126.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S0W1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 105.60 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S4W1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 121.90 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S0B1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 98.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D4W1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 153.50 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D0W1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 135.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S4S1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 114.20 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S4B1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 116.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D4B1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 156.60 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D4B1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 146.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S0W1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 92.30 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S4B1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 116.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D4S1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 156.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D0W1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 122.30 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S0S1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 108.80 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D0S1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 128.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S0W1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 105.60 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D4B1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 146.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.D4B1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 141.50 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S0S1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 98.80 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.S0S1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 98.80 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D0B1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 128.80 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S4B1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 111.50 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D0S1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 128.80 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S0B1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 95.10 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S0B1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 92.30 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D0B1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 125.10 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D4S1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 146.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.D0B1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 122.30 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D4B1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 144.20 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S0W1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 92.30 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.S4S1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 116.60 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S4S1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 111.50 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D0B1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 128.80 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D4S1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 144.20 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.D0W1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 122.30 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3684.O.D4S1 | 4600 lm | 36 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 146.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S4W1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 123.50 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D0S1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 125.10 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D0W1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 132.70 Euro | LDT anfordern | PDF Download | - |
| AB10Ma.3683.O.D4W1 | 4180 lm | 36 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 151.90 Euro | LDT anfordern | PDF Download | - |
| AB10La.4483.O.S0B1 | 5280 lm | 44 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 108.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D4W1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 153.50 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.D4S1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 141.50 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.D4W1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 141.50 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S4B1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 114.20 Euro | LDT anfordern | PDF Download | - |
| AB10La.4783.O.D0B1 | 5360 lm | 47 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 138.80 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S0B1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 108.80 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S0S1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 95.10 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1884.O.S4W1 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 111.50 Euro | LDT anfordern | PDF Download | - |
| AB10Sa.1883.O.S0S1 | 2130 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.1 kg | 92.30 Euro | LDT anfordern | PDF Download | - |
| AB10La.4484.O.S4B1 | 5800 lm | 44 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 126.60 Euro | LDT anfordern | PDF Download | - |
| AB10La.4784.O.D0B1 | 5900 lm | 47 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.3 kg | 138.80 Euro | LDT anfordern | PDF Download | - |
Bruttopreise exkl. Mehrwertsteuer
