Bauform 2940/2942

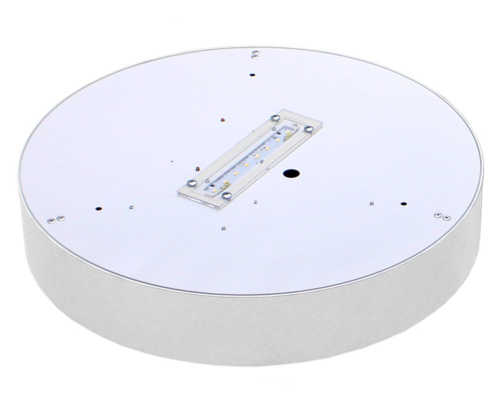

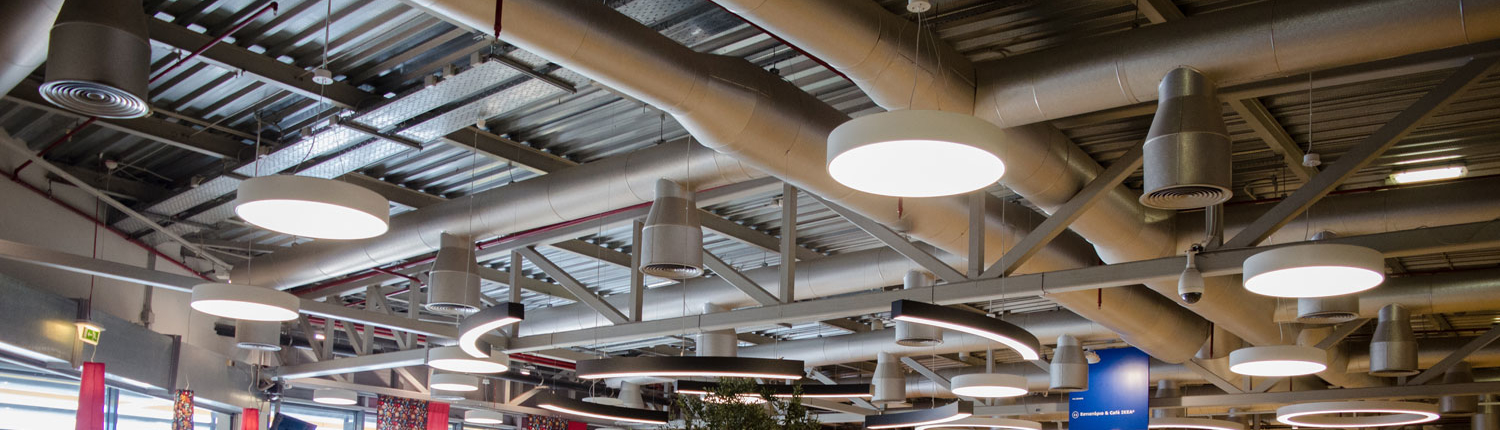

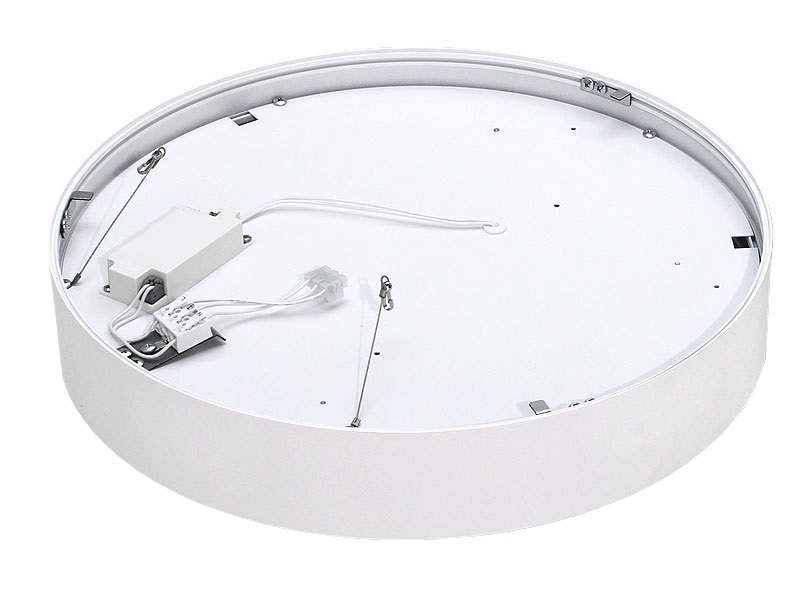

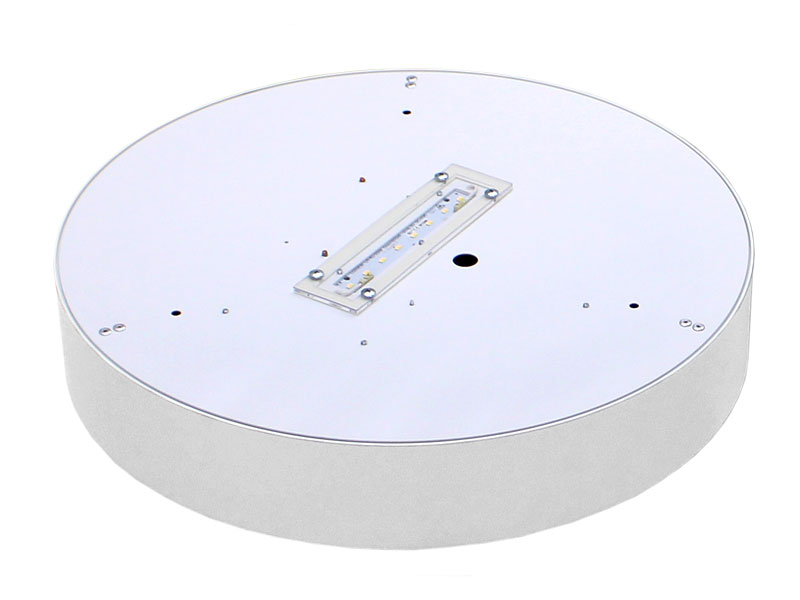

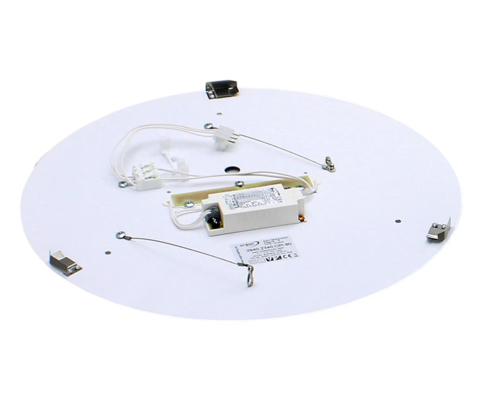

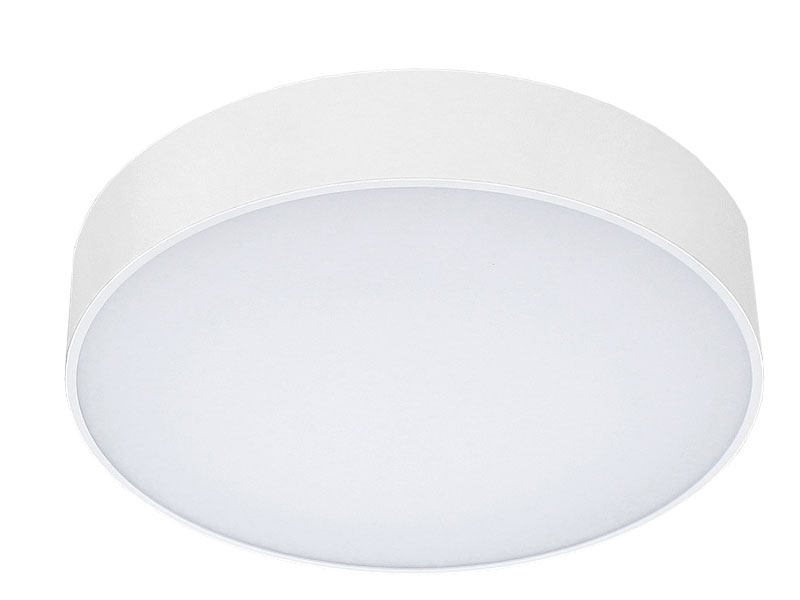

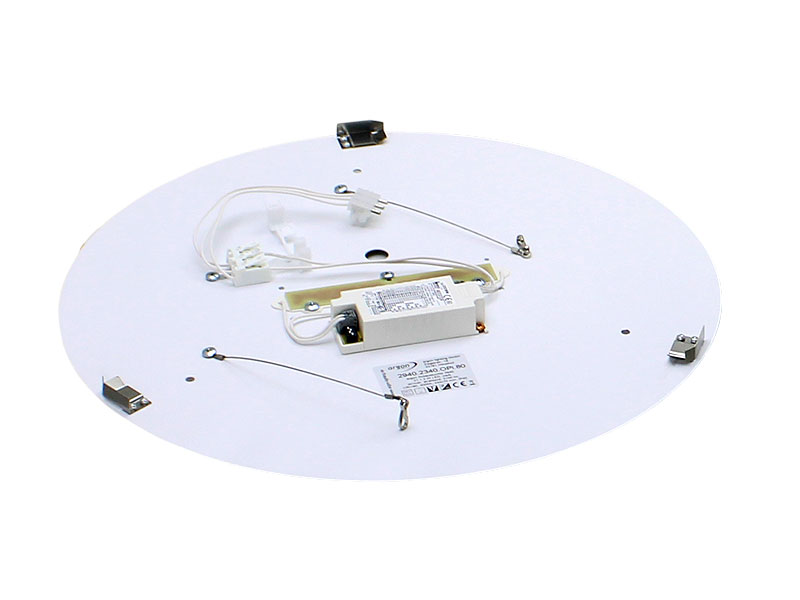

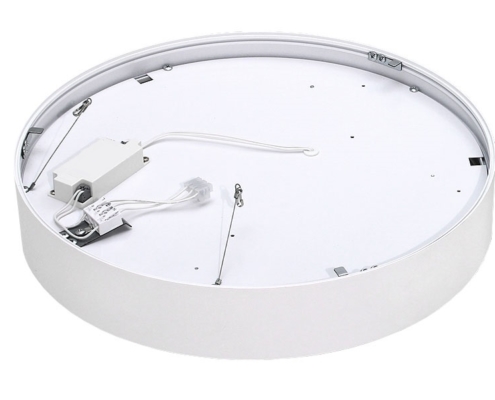

Die modernen Rundleuchten der Bauform 2940/2942 sind in unterschiedlichsten Durchmessern und Ausführungen verfügbar. Die Leuchten können als Pendel- (2942) oder als Anbauleuchten (2940) verwendet werden. Durch das zweigeteilte Aufbaugehäuse steht Platz für Sensorsysteme, Notlichtkomponenten, Tunable White oder getrennt schaltbare indirekte Lichtanteile zur Verfügung. Die Farbe und Oberfläche des Aluminiumprofils kann nach Kundenwunsch gefertigt werden. Als optisches System steht eine opale (Standard) oder mikroprismatische Abdeckung (auf Anfrage) zur Verfügung.
Technische Daten
Leuchtkörper
Montageart: Aufbau (Bauform 2940)-/Pendelmontage (Bauform 2942)
Material: Aluminium
Farbe: Weiß
Elektrotechnik
Betriebsgerät: LED Betriebsgerät
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur:0°C bis +25°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lichtverteilung:Lampentyp: LED

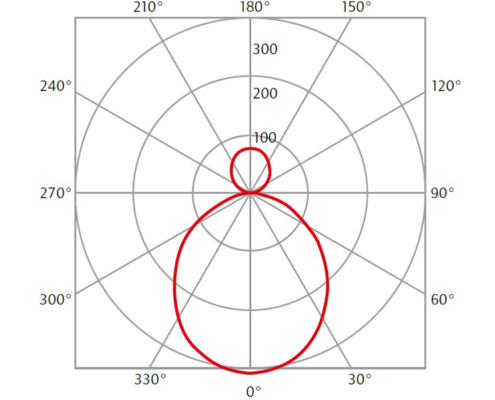

Lichtverteilung: direkt, direkt/indirekt
Optisches System
OP opale Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: I
Schlagschutz: IK 02
Energieeffizienzklasse: D
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen
Optional
Farbe: Schwarz, Grau, RAL-Farben auf Anfrage
Lichtfarbe: 2700 K/3000 K/6000 K, Tunable White
Treiber: DALI, Steuerung per Casambi
Farbwiedergabe: CRI > 90
Abdeckung: Mikroprismatisch
Zubehör

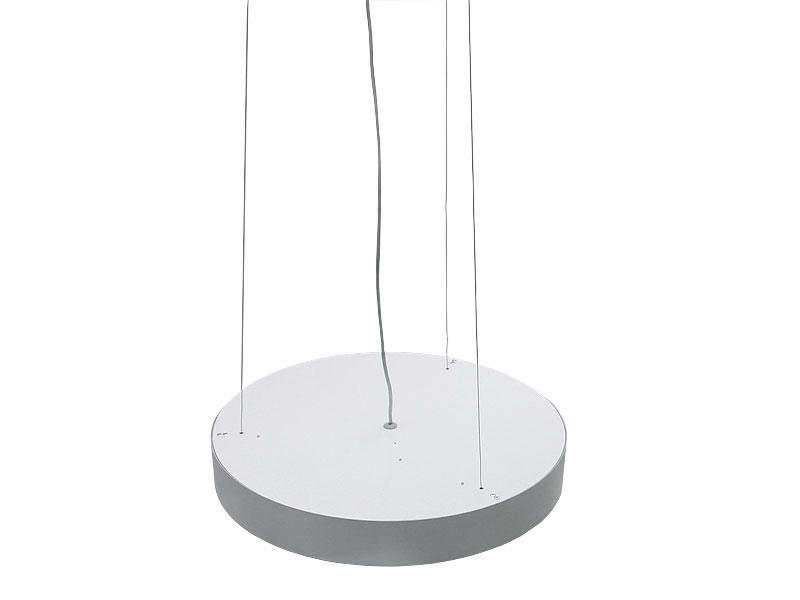

| Bauform 2942: inkl. Seilaufhängung 1500 mm |
Downloads
Katalogseite

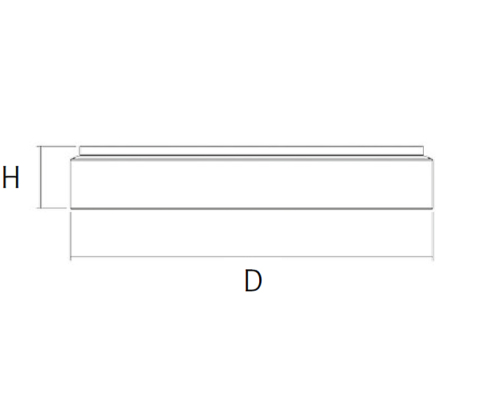

| Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2940HE.940.OP.80 | 1114 lm | 9 W | 4000 K | IP40 | 252 x 77 mm | - | 1.6 kg | 219.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.940.OP.80d | 1114 lm | 9 W | 4000 K | IP40 | 252 x 77 mm | - | 1.6 kg | 272.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.1440.OP.80 | 1973 lm | 14 W | 4000 K | IP40 | 345 x 77 mm | - | 2.8 kg | 279.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.1440.OP.80d | 1973 lm | 14 W | 4000 K | IP40 | 345 x 77 mm | - | 2.8 kg | 334.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.2440.OP.80 | 2852 lm | 24 W | 4000 K | IP40 | 444 x 77 mm | - | 4.3 kg | 400.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.2440.OP.80d | 2852 lm | 24 W | 4000 K | IP40 | 444 x 77 mm | - | 4.3 kg | 462.60 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.3140.OP.80 | 3671 lm | 31 W | 4000 K | IP40 | 555 x 77 mm | - | 6.6 kg | 591.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.3140.OP.80d | 3671 lm | 31 W | 4000 K | IP40 | 555 x 77 mm | - | 6.6 kg | 666.30 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.3640.OP.80 | 4477 lm | 36 W | 4000 K | IP40 | 858 x 77 mm | - | 16 kg | 1,186.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.3640.OP.80d | 4477 lm | 36 W | 4000 K | IP40 | 858 x 77 mm | - | 16 kg | 1,251.60 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.4340.OP.80 | 5342 lm | 43 W | 4000 K | IP40 | 1144 x 77 mm | - | 24.6 kg | 2,023.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HE.4340.OP.80d | 5342 lm | 43 W | 4000 K | IP40 | 1144 x 77 mm | - | 24.6 kg | 2,085.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.1840.OP.80 | 2252 lm | 18 W | 4000 K | IP40 | 252 x 77 mm | - | 1.6 kg | 219.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.1840.OP.80d | 2252 lm | 18 W | 4000 K | IP40 | 252 x 77 mm | - | 1.6 kg | 272.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.2440.OP.80 | 3218 lm | 24 W | 4000 K | IP40 | 345 x 77 mm | - | 2.8 kg | 279.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.2440.OP.80d | 3218 lm | 24 W | 4000 K | IP40 | 345 x 77 mm | - | 2.8 kg | 334.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.3640.OP.80 | 4110 lm | 36 W | 4000 K | IP40 | 444 x 77 mm | - | 4.3 kg | 420.60 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.3640.OP.80d | 4110 lm | 36 W | 4000 K | IP40 | 444 x 77 mm | - | 4.3 kg | 462.60 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.4340.OP.80 | 4903 lm | 43 W | 4000 K | IP40 | 555 x 77 mm | - | 6.6 kg | 591.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.4340.OP.80d | 4903 lm | 43 W | 4000 K | IP40 | 555 x 77 mm | - | 6.6 kg | 694.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.6740.OP.80 | 8015 lm | 67 W | 4000 K | IP40 | 858 x 77 mm | - | 16 kg | 1,242.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.6740.OP.80d | 8015 lm | 67 W | 4000 K | IP40 | 858 x 77 mm | - | 16 kg | 1,316.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.11140.OP.80 | 13253 lm | 111 W | 4000 K | IP40 | 1144 x 77 mm | - | 24.6 kg | 2,012.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2940HO.11140.OP.80d | 13253 lm | 111 W | 4000 K | IP40 | 1144 x 77 mm | - | 24.6 kg | 2,136.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.940.OP.80 | 1114 lm | 9 W | 4000 K | IP40 | 252 x 77 mm | - | 1.5 kg | 247.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.940.OP.80d | 1114 lm | 9 W | 4000 K | IP40 | 252 x 77 mm | - | 1.5 kg | 301.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.1440.OP.80 | 1973 lm | 14 W | 4000 K | IP40 | 345 x 77 mm | - | 2.4 kg | 308.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.1440.OP.80d | 1973 lm | 14 W | 4000 K | IP40 | 345 x 77 mm | - | 2.4 kg | 364.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.2440.OP.80 | 2852 lm | 24 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 435.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.2440.OP.80d | 2852 lm | 24 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 497.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3140.OP.80 | 3671 lm | 31 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 633.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3140.OP.80d | 3671 lm | 31 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 707.70 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3140.OPi.80 | 4073 lm | 31 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 523.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3140.OPi.80d | 4073 lm | 31 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 647.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3640.OP.80 | 4477 lm | 36 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,207.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.3640.OP.80d | 4477 lm | 36 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,272.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4140.OPi.80 | 5371 lm | 41 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 756.30 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4140.OPi.80d | 5371 lm | 41 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 905.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4340.OP.80 | 5342 lm | 43 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,027.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4340.OP.80d | 5342 lm | 43 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,089.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4840.OPi.80 | 6648 lm | 48 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,292.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.4840.OPi.80d | 6648 lm | 48 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,364.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.5940.OPi.80 | 8149 lm | 59 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,187.60 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HE.5940.OPi.80d | 8149 lm | 59 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,311.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.1840.OP.80 | 2252 lm | 18 W | 4000 K | IP40 | 252 x 77 mm | - | 1.5 kg | 247.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.1840.OP.80d | 2252 lm | 18 W | 4000 K | IP40 | 252 x 77 mm | - | 1.5 kg | 301.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.2440.OP.80 | 3218 lm | 24 W | 4000 K | IP40 | 345 x 77 mm | - | 2.4 kg | 308.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.2440.OP.80d | 3218 lm | 24 W | 4000 K | IP40 | 345 x 77 mm | - | 2.4 kg | 364.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.3640.OP.80 | 4110 lm | 36 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 456.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.3640.OP.80d | 4110 lm | 36 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 497.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.4340.OP.80 | 4903 lm | 43 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 633.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.4340.OP.80d | 4903 lm | 43 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 707.70 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.4340.OPi.80 | 5138 lm | 43 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 523.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.4340.OPi.80d | 5138 lm | 43 W | 4000 K | IP40 | 444 x 77 mm | - | 3.6 kg | 647.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.5340.OPi.80 | 6351 lm | 53 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 756.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.5340.OPi.80d | 6351 lm | 53 W | 4000 K | IP40 | 555 x 77 mm | - | 5.4 kg | 905.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.6740.OP.80 | 8015 lm | 67 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,264.50 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.6740.OP.80d | 8015 lm | 67 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,337.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.7940.OPi.80 | 9740 lm | 79 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,292.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.7940.OPi.80d | 9740 lm | 79 W | 4000 K | IP40 | 858 x 77 mm | - | 12.5 kg | 1,429.70 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.11140.OP.80 | 13253 lm | 111 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 1,977.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.11140.OP.80d | 13253 lm | 111 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,098.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.12740.OPi.80 | 15572 lm | 127 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,297.00 € Euro |
LDT Download |
PDF Download |
PDF Download |
| 2942HO.12740.OPi.80d | 15572 lm | 127 W | 4000 K | IP40 | 1144 x 77 mm | - | 19 kg | 2,169.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
Bruttopreise exkl. Mehrwertsteuer
