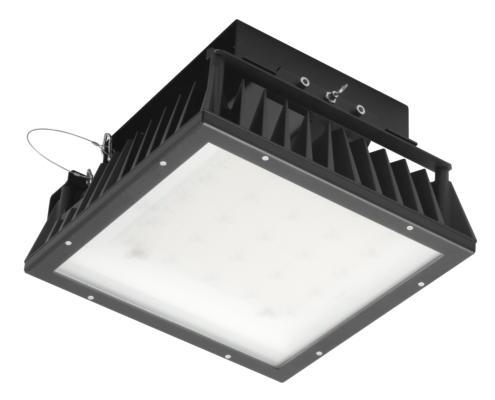

Rechteckiger Hallentiefstrahler als Pendel- oder als Anbauleuchte. Durch die unterschiedlichen Ausstrahlwinkel (60°, 80° und 100°) und Lichtstärken von über 34.000 lm netto findet sich für die Leuchten der Bauform 6515 und 6518 ein breites Spektrum an Anwendungsgebieten.
Mit einer Lebensdauer von 100.000 Stunden (L90 B10), einer Schutzart von IP66, Schlagschutz IK09 und einer Umgebungstemperatur von -40°C bis +50°C sind diese Leuchten auch überall dort einsetzbar, wo aufgrund der äußeren Einflüsse hohe Anforderungen an die Beleuchtung gestellt werden.
Leuchtkörper

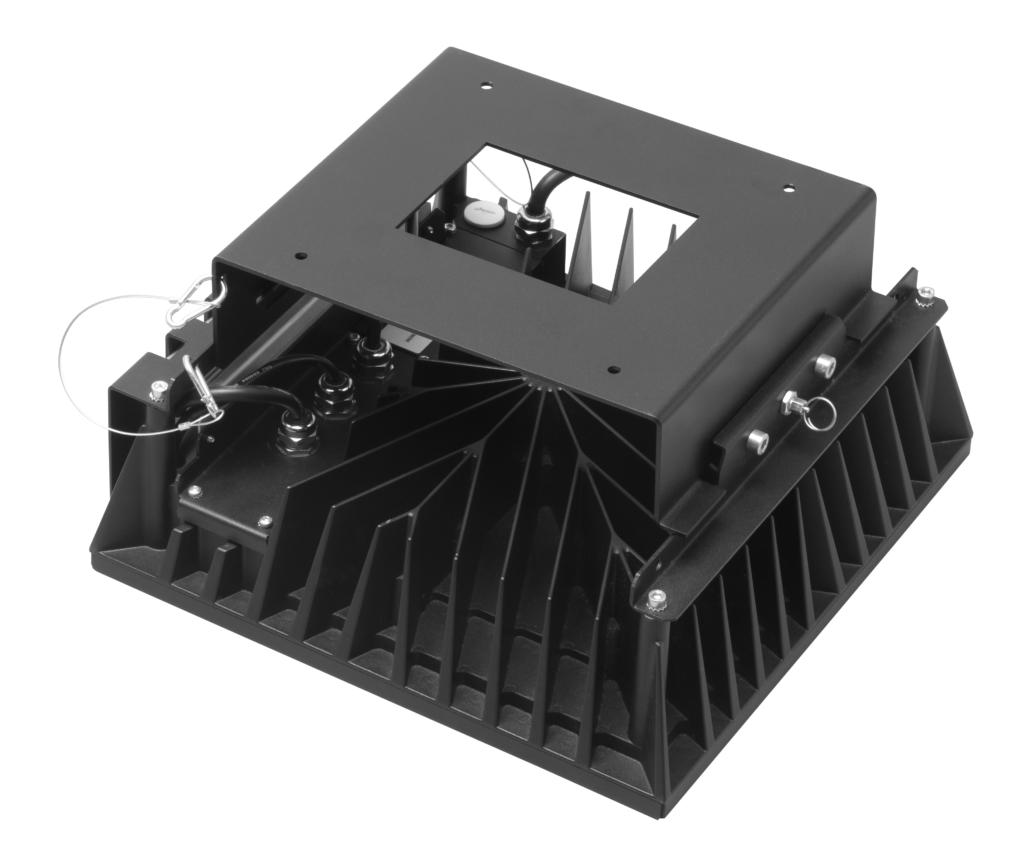

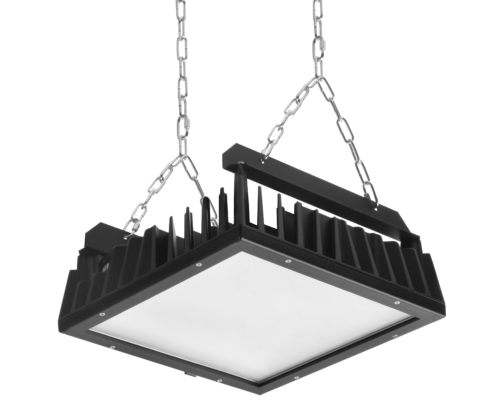

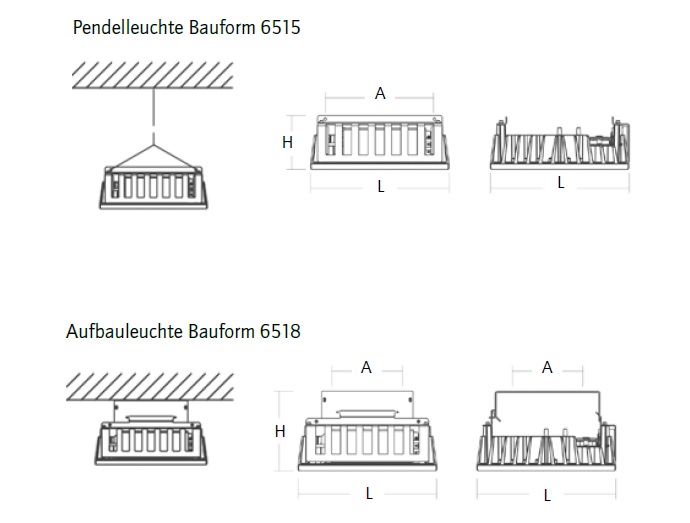

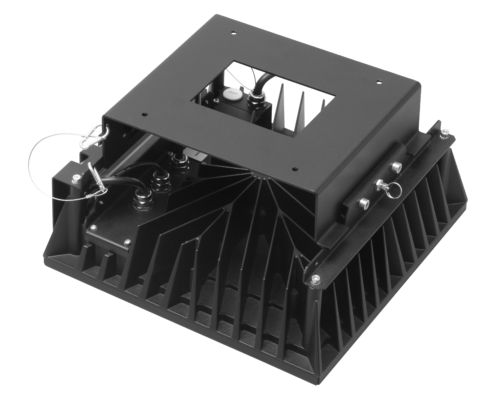

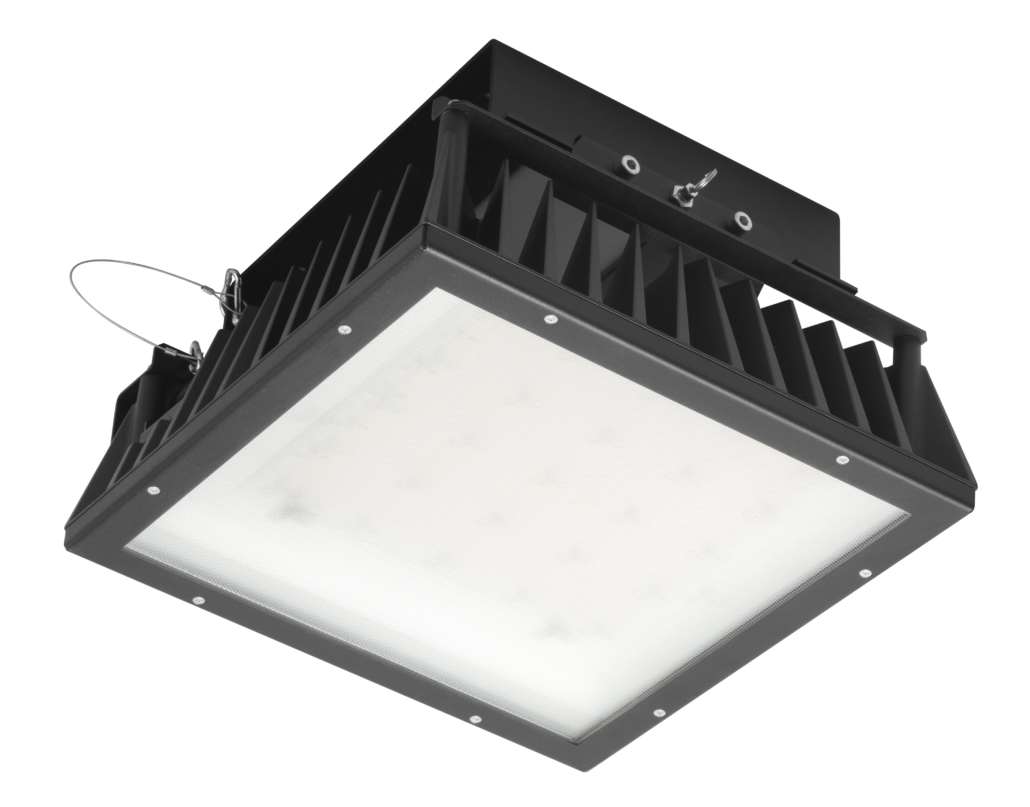

Montageart: Aufbaumontage (6518) / Pendelmontage (6515)
Material: Aluminiumdruckguss + Stahlblech
Farbe: Schwarz
Elektrotechnik
Betriebsgerät: LED Betriebsgerät
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -40°C bis +50°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 100.000 Std. (L90 B10)

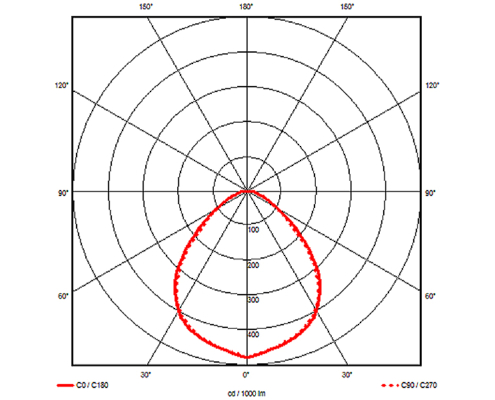

Lichtverteilung: direkt
Optisches System
PR Prismatische PMMA Abdeckung + Glas
Prüfungen
Schutzart: IP66
Schutzklasse: I
Schlagschutz: IK09
Energieefzienzklasse: A++/A+/A
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen
Optional
Treiber: DALI
6515.KP Kettenbefestigung |
6518.REF60 Reflektor 60° |
6518.REF80 Reflektor 80° |
6518.REF100 Reflektor 100° |
Katalogseite

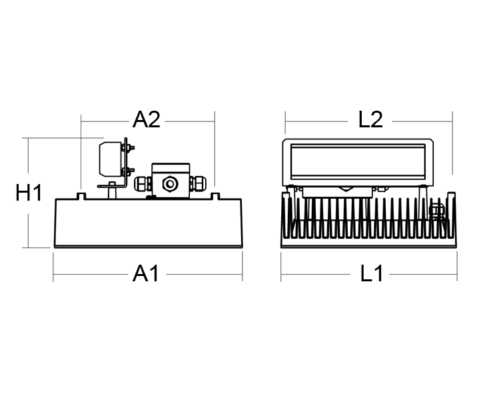

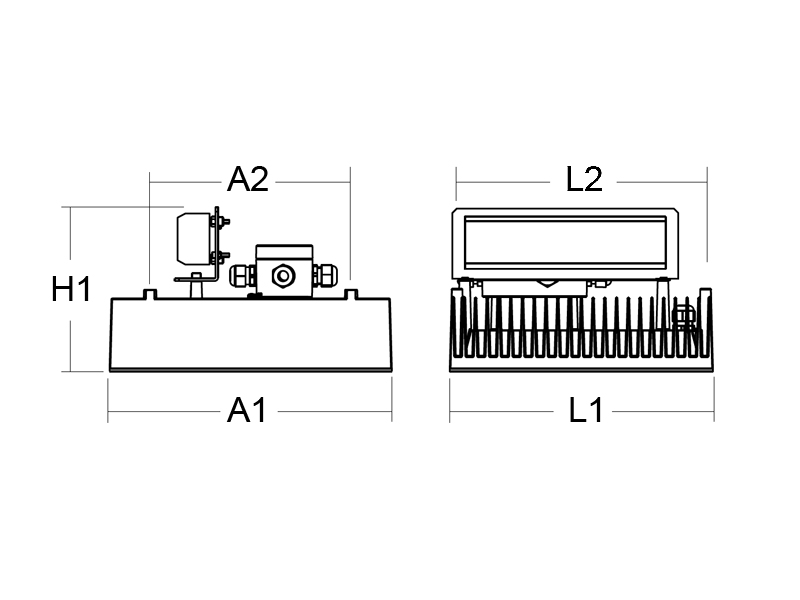

Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
---|---|---|---|---|---|---|---|---|---|---|---|
6515.10540.PR.80 | 15300 lm | 105 W | 4000 K | IP66 | 380 x 300 x 148 mm | - | 14.3 kg | 560.70 € Euro |
LDT Download |
PDF Download |
PDF Download |
6515.10550.PR.80 | 15650 lm | 105 W | 5000 K | IP66 | 380 x 300 x 148 mm | - | 14.3 kg | 560.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
6515.15740.PR.80 | 22300 lm | 157 W | 4000 K | IP66 | 380 x 300 x 148 mm | - | 14.6 kg | 656.30 € Euro |
LDT Download |
PDF Download |
PDF Download |
6515.15750.PR.80 | 22850 lm | 157 W | 5000 K | IP66 | 380 x 300 x 148 mm | - | 14.6 kg | 656.30 € Euro |
LDT Download |
PDF Download |
PDF Download |
6515.27340.PR.80 | 33300 lm | 273 W | 4000 K | IP66 | 380 x 300 x 148 mm | - | 15.3 kg | 757.80 € Euro |
LDT Download |
PDF Download |
PDF Download |
6515.27350.PR.80 | 34100 lm | 273 W | 5000 K | IP66 | 380 x 300 x 148 mm | - | 15.3 kg | 799.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.10540.PR.80 | 15300 lm | 105 W | 4000 K | IP66 | 380 x 200 x 218 mm | - | 16.5 kg | 620.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.10550.PR.80 | 15650 lm | 105 W | 5000 K | IP66 | 380 x 200 x 218 mm | - | 16.5 kg | 620.40 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.15740.PR.80 | 22300 lm | 157 W | 4000 K | IP66 | 380 x 200 x 218 mm | - | 16.8 kg | 687.20 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.15750.PR.80 | 22850 lm | 157 W | 5000 K | IP66 | 380 x 200 x 218 mm | - | 16.8 kg | 727.90 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.27340.PR.80 | 33300 lm | 273 W | 4000 K | IP66 | 380 x 200 x 218 mm | - | 17.5 kg | 829.10 € Euro |
LDT Download |
PDF Download |
PDF Download |
6518.27350.PR.80 | 34100 lm | 273 W | 5000 K | IP66 | 380 x 200 x 218 mm | - | 17.5 kg | 829.30 € Euro |
LDT Download |
PDF Download |
PDF Download |
