Leuchtkörper

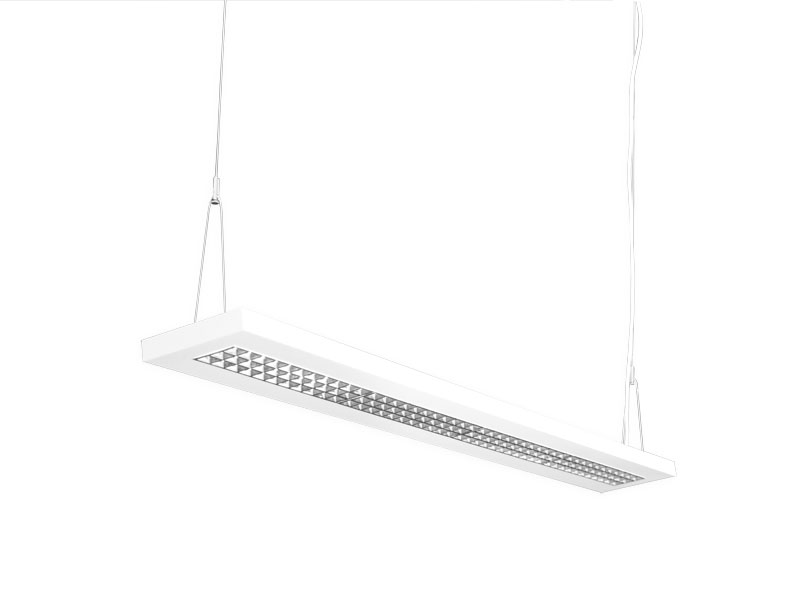

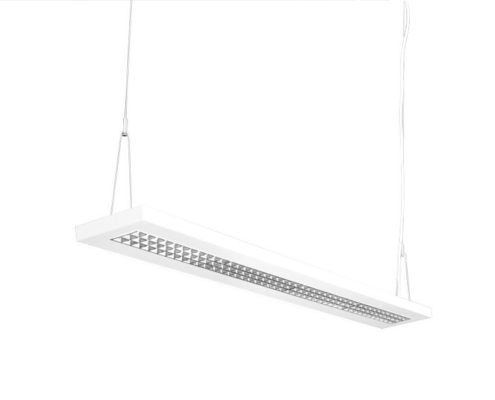

Montageart: Einlege-/Aufbau-/Pendelleuchte
Material: Stahlblech
Farbe: Weiß (RAL 9003)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät
(dimmbar 1 – 10 V, DALI auf Anfrage)
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60 Hz
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000 h/L70

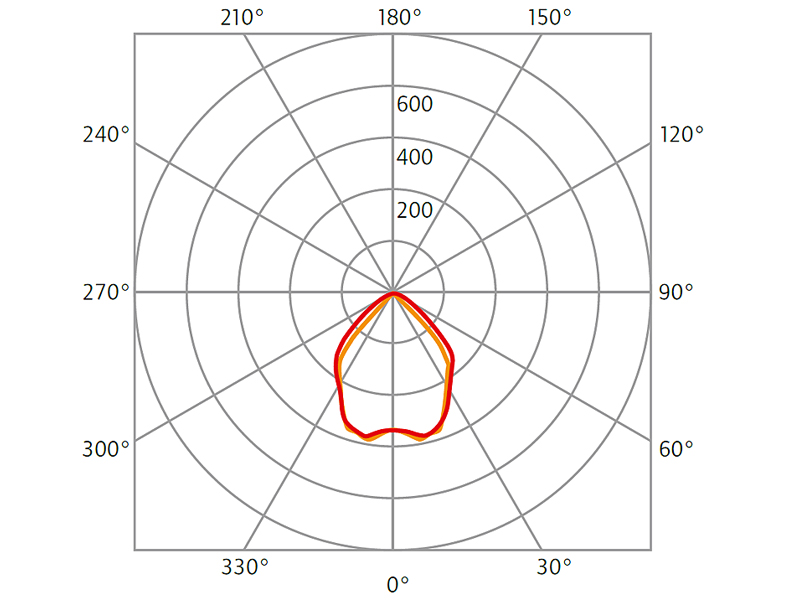

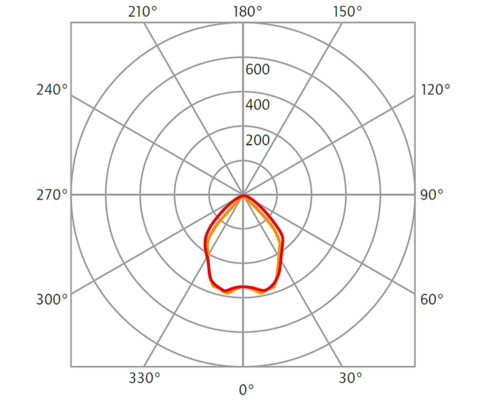

Lichtverteilung: direkt strahlend (direkt/indirekt auf Anfrage)
Blendungsbegrenzung: UGR < 19
Optisches System

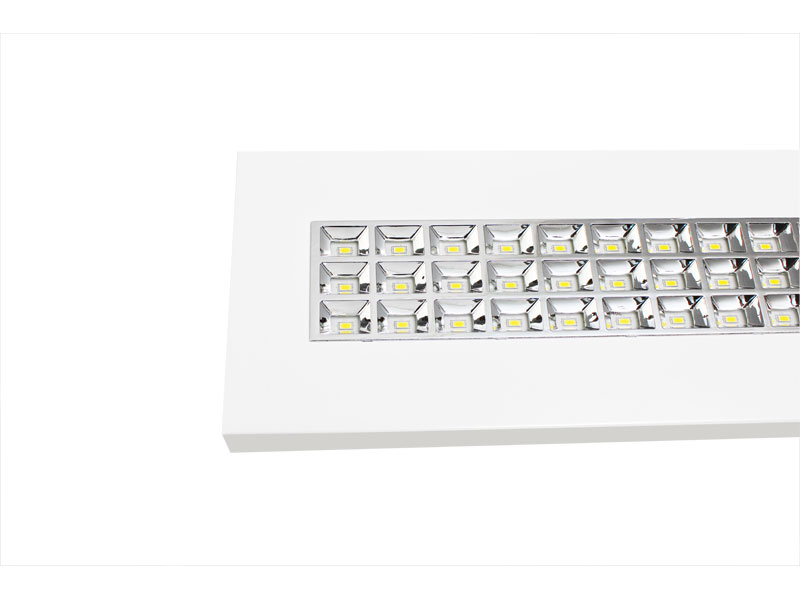

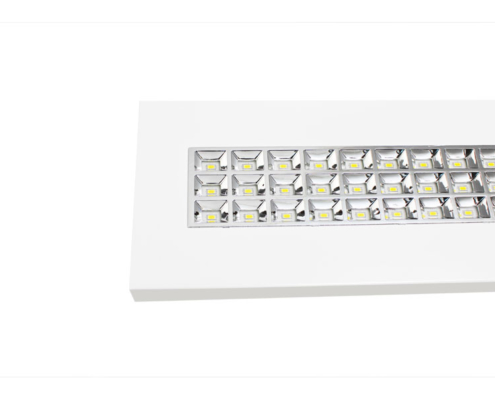

OP Aluminiumreflektor hochglänzend
Prüfungen
Schutzart: IP20
Energieeffizienzklasse: A++ A+ A
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen
Anbauplatte und Seilaufhängungen sind nicht im Lieferumfang enthalten (siehe Zubehör).

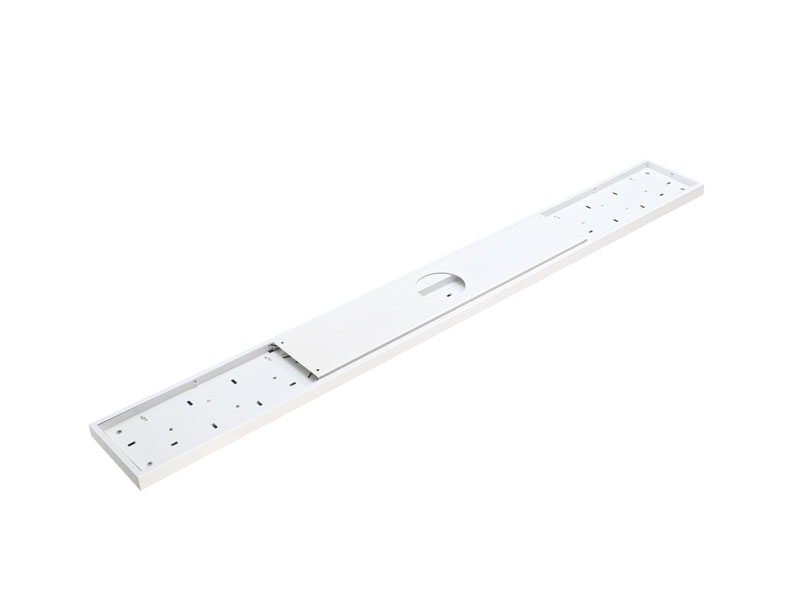

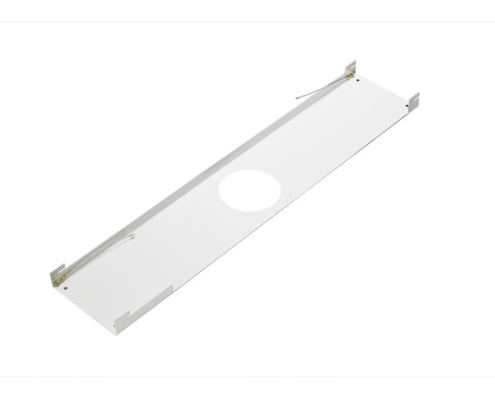

6020b.AP | argon Anbauplatte zur Leuchtenlänge 620x620mm | Stahlblech | |

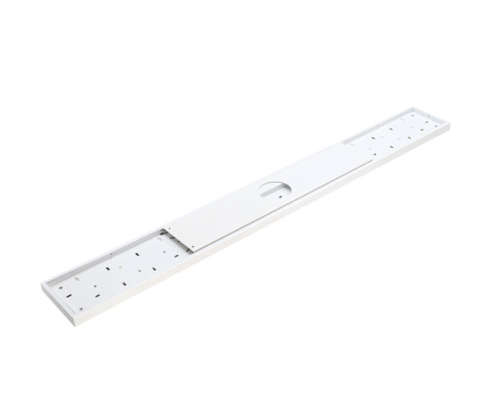

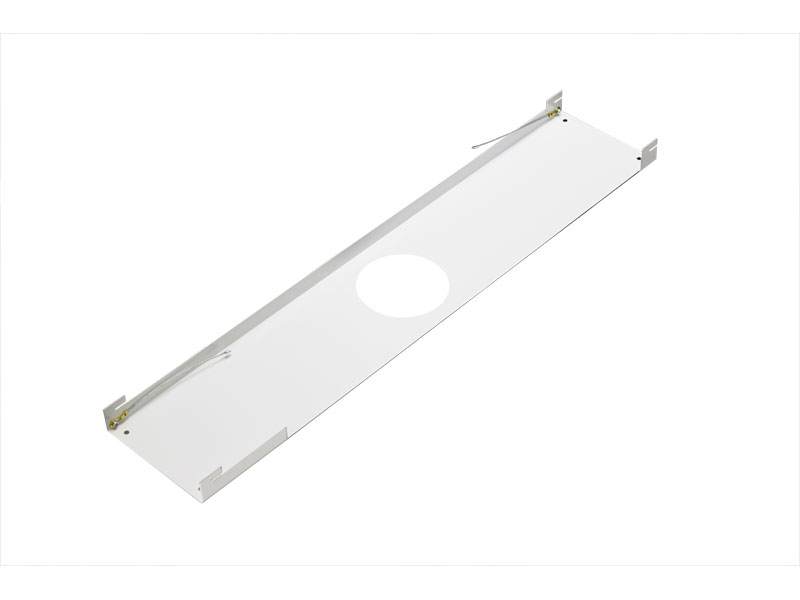

6021b.AP/12 | argon Anbauplatte zur Leuchtenlänge 1245x150mm | Stahlblech | |
6021b.AP/15 | argon Anbauplatte zur Leuchtenlänge 1545x150mm | Stahlblech | |
6020b.SA | argon Seilaufhängung | Einzelseil mit Edelstahlbefestigung, Länge 1500 mm | |
6020b.SA2 | argon Seilaufhängung | Y- Seilaufhängung mit Edelstahlbefestigung, Länge 1500 mm |
Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
---|---|---|---|---|---|---|---|---|---|---|---|

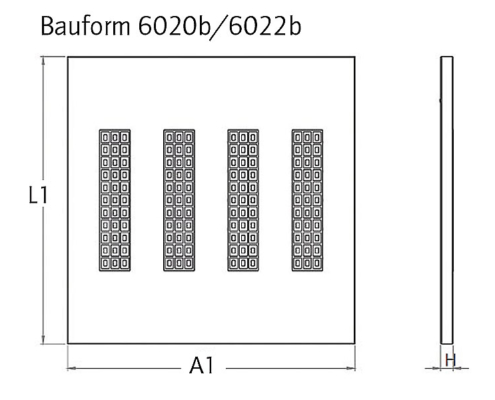

6020b.4530.OP.80 | 4750 lm | 45 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.70 kg | 210.30 Euro |
LDT Download |
PDF Download |
- |
6020b.4530.OP.80d | 4750 lm | 45 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.70 kg | 261.70 Euro |
LDT Download |
PDF Download |
- |
6020b.4540.OP.80 | 5000 lm | 45 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.70 kg | 210.30 Euro |
LDT Download |
PDF Download |
- |
6020b.4540.OP.80d | 5000 lm | 45 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.70 kg | 261.70 Euro |
LDT Download |
PDF Download |
- |
6021b.3630.OP.80 | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.90 kg | 153.60 Euro |
LDT Download |
PDF Download |
- |
6021b.3630.OP.80d | 3800 lm | 36 W | 3000 K | IP20 | 1245 x 145 x 25 mm | - | 2.90 kg | 204.90 Euro |
LDT Download |
PDF Download |
- |
6021b.3640.OP.80 | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.90 kg | 153.60 Euro |
LDT Download |
PDF Download |
- |
6021b.3640.OP.80d | 4000 lm | 36 W | 4000 K | IP20 | 1245 x 145 x 25 mm | - | 2.90 kg | 204.90 Euro |
LDT Download |
PDF Download |
- |
6021b.4530.OP.80 | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.50 kg | 191.60 Euro |
LDT Download |
PDF Download |
- |
6021b.4530.OP.80d | 4750 lm | 45 W | 3000 K | IP20 | 1545 x 145 x 25 mm | - | 4.50 kg | 243.00 Euro |
LDT Download |
PDF Download |
- |
6021b.4540.OP.80 | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.50 kg | 191.60 Euro |
LDT Download |
PDF Download |
- |
6021b.4540.OP.80d | 5000 lm | 45 W | 4000 K | IP20 | 1545 x 145 x 25 mm | - | 4.50 kg | 243.00 Euro |
LDT Download |
PDF Download |
- |
6022b.3030.OP.80 | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.50 kg | 190.30 Euro |
LDT Download |
PDF Download |
- |
6022b.3030.OP.80d | 3140 lm | 30 W | 3000 K | IP20 | 620 x 620 x 25 mm | - | 4.50 kg | 241.70 Euro |
LDT Download |
PDF Download |
- |
6022b.3040.OP.80 | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.50 kg | 190.30 Euro |
LDT Download |
PDF Download |
- |
6022b.3040.OP.80d | 3300 lm | 30 W | 4000 K | IP20 | 620 x 620 x 25 mm | - | 4.50 kg | 241.70 Euro |
LDT Download |
PDF Download |
- |

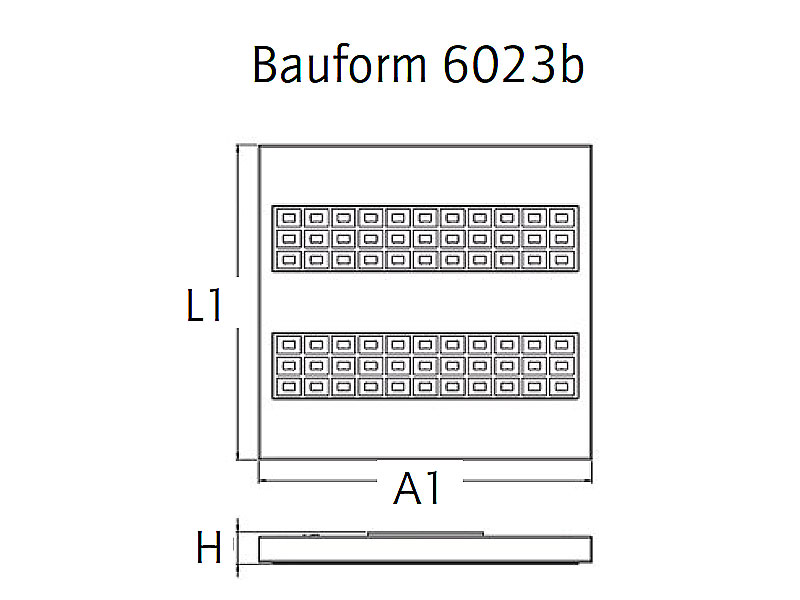

6023b.1930.OP.80 | 1900 lm | 19 W | 3000 K | IP20 | 300 x 318 x 25 mm | - | 2.50 kg | 102.60 Euro |
LDT Download |
PDF Download |
- |
6023b.1930.OP.80d | 1900 lm | 19 W | 3000 K | IP20 | 300 x 318 x 25 mm | - | 2.50 kg | 154.00 Euro |
LDT Download |
PDF Download |
- |
6023b.1940.OP.80 | 2000 lm | 19 W | 4000 K | IP20 | 300 x 318 x 25 mm | - | 2.50 kg | 102.60 Euro |
LDT Download |
PDF Download |
- |
6023b.1940.OP.80d | 2000 lm | 19 W | 4000 K | IP20 | 300 x 318 x 25 mm | - | 2.50 kg | 154.00 Euro |
LDT Download |
PDF Download |
- |
