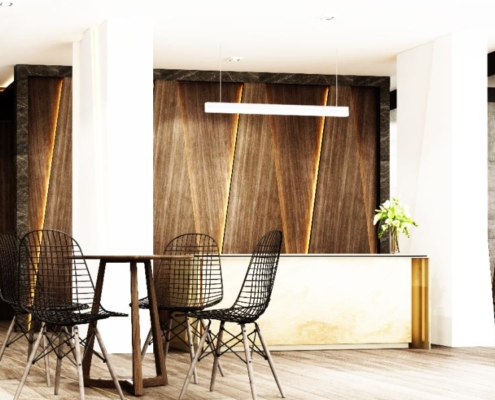

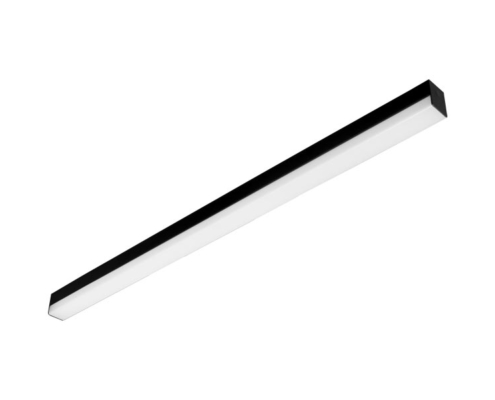

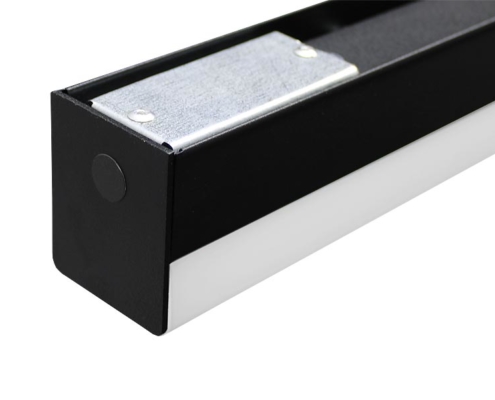

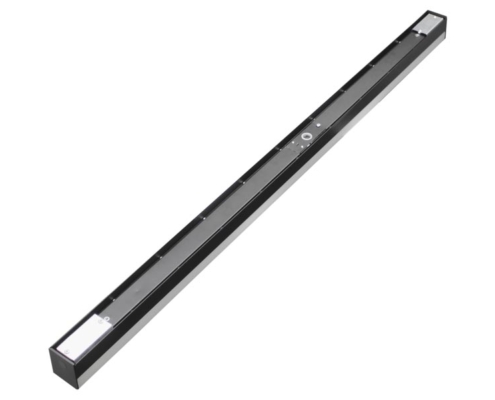

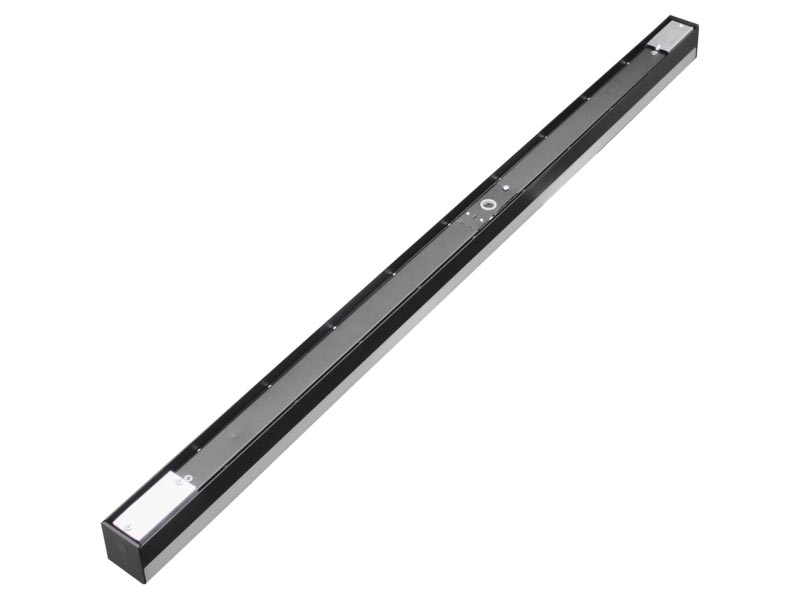

Profilleuchte aus Stahlblech mit einer opalen Abdeckung. Die Leuchten der Bauform 2310l können sowohl als Anbau- als auch als Pendelleuchte verwendet werden (Seilaufhängungen müssen extra bestellt werden). Standardmäßig werden die Profile in schwarz, weiß und grau angeboten (andere Farben auf Anfrage).

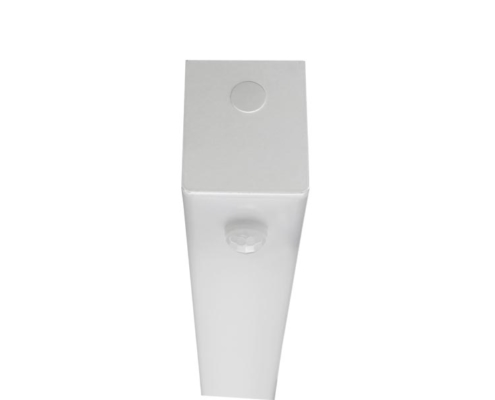

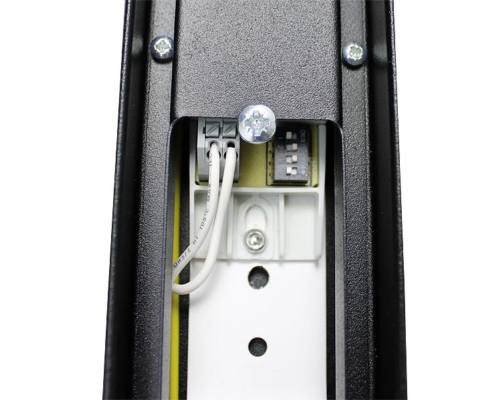

Die Form des Profils bietet vielfältige Möglichkeiten DALI oder Sensorsysteme in die Leuchten zu integrieren. Die Leuchte ist standardmäßig mit DIP-Schaltern ausgestattet, über die sich die Beleuchtungsstärke anpassen lässt.
Leuchtkörper
Montageart: Anbau-/Pendelleuchte
Material: Stahlblech
Farbe: schwarz (weiß/grau)
Elektrotechnik
Betriebsgerät: LED Betriebsgerät
Netzspannung: 220 – 240 V
Netzfrequenz: 50-60Hz
Umgebungstemperatur: -10°C bis +35°C
Lichttechnik
Lampentyp: LED
Farbwiedergabe: CRI > 80
Lebensdauer: 50.000h (L80 / B20)

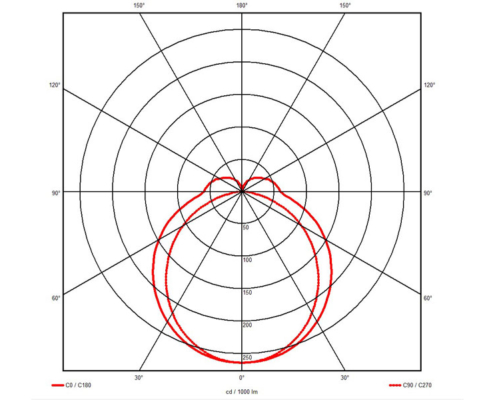

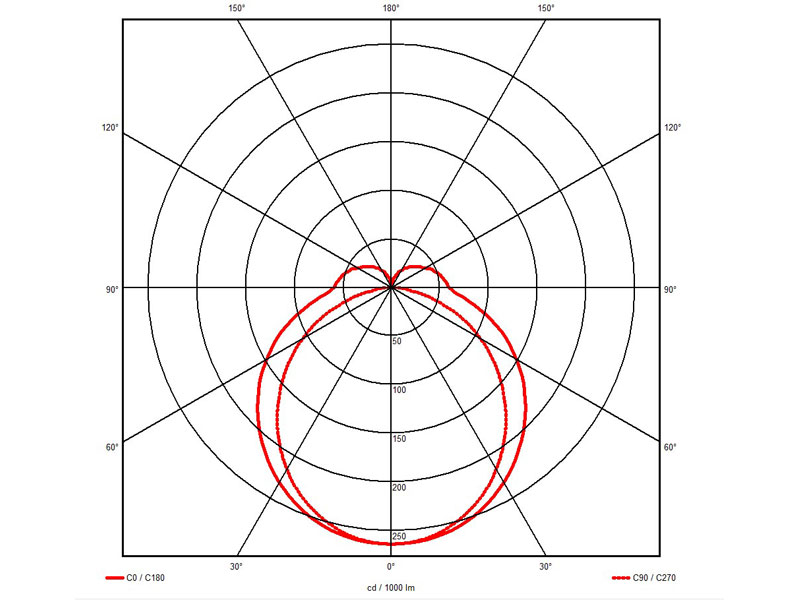

Lichtverteilung: direkt
Optisches System
OP opale Abdeckung
Prüfungen
Schutzart: IP40
Schutzklasse: SK I
Schlagschutz: IK02
Energieeffizienzklasse: A++ A+ A
Länderkennzeichnung: CE
Sonstige Kennzeichen: WEEE-Zeichen
Exkl. Seilaufhängungen
Art.-Nr. | Lichtstrom | Leistung | Farbtemp. | IP | Maße | DA Ø | Gewicht | Bruttopreis | LDT | Datenblatt | LV-Text |
---|---|---|---|---|---|---|---|---|---|---|---|
2310l.1830.OP.80 | 2200 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 84.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.1830.OP.80d | 2200 lm | 18 W | 3000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 105.80 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.1840.OP.80 | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 84.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.1840.OP.80d | 2340 lm | 18 W | 4000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 105.80 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.1850.OP.80 | 2450 lm | 18 W | 5000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 84.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.1850.OP.80d | 2450 lm | 18 W | 5000 K | IP40 | 585 x 50 x 60 mm | - | 1.10 kg | 105.80 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3530.OP.80 | 4380 lm | 35 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 97.00 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3530.OP.80d | 4380 lm | 35 W | 3000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 121.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3540.OP.80 | 4600 lm | 35 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 97.00 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3540.OP.80d | 4600 lm | 35 W | 4000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 121.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3550.OP.80 | 4830 lm | 35 W | 5000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 97.00 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.3550.OP.80d | 4830 lm | 35 W | 5000 K | IP40 | 1145 x 50 x 60 mm | - | 2.25 kg | 121.50 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4330.OP.80 | 5320 lm | 43 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 105.60 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4330.OP.80d | 5320 lm | 43 W | 3000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 131.70 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4340.OP.80 | 5600 lm | 43 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 114.30 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4340.OP.80d | 5600 lm | 43 W | 4000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 131.70 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4350.OP.80 | 5880 lm | 43 W | 5000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 105.60 Euro |
LDT Download |
PDF Download |
PDF Download |
2310l.4350.OP.80d | 5880 lm | 43 W | 5000 K | IP40 | 1425 x 50 x 60 mm | - | 3.30 kg | 131.70 Euro |
LDT Download |
PDF Download |
PDF Download |
